Roughneck Stabbing Guides

Guiding threaded connections to safely make up at the well.

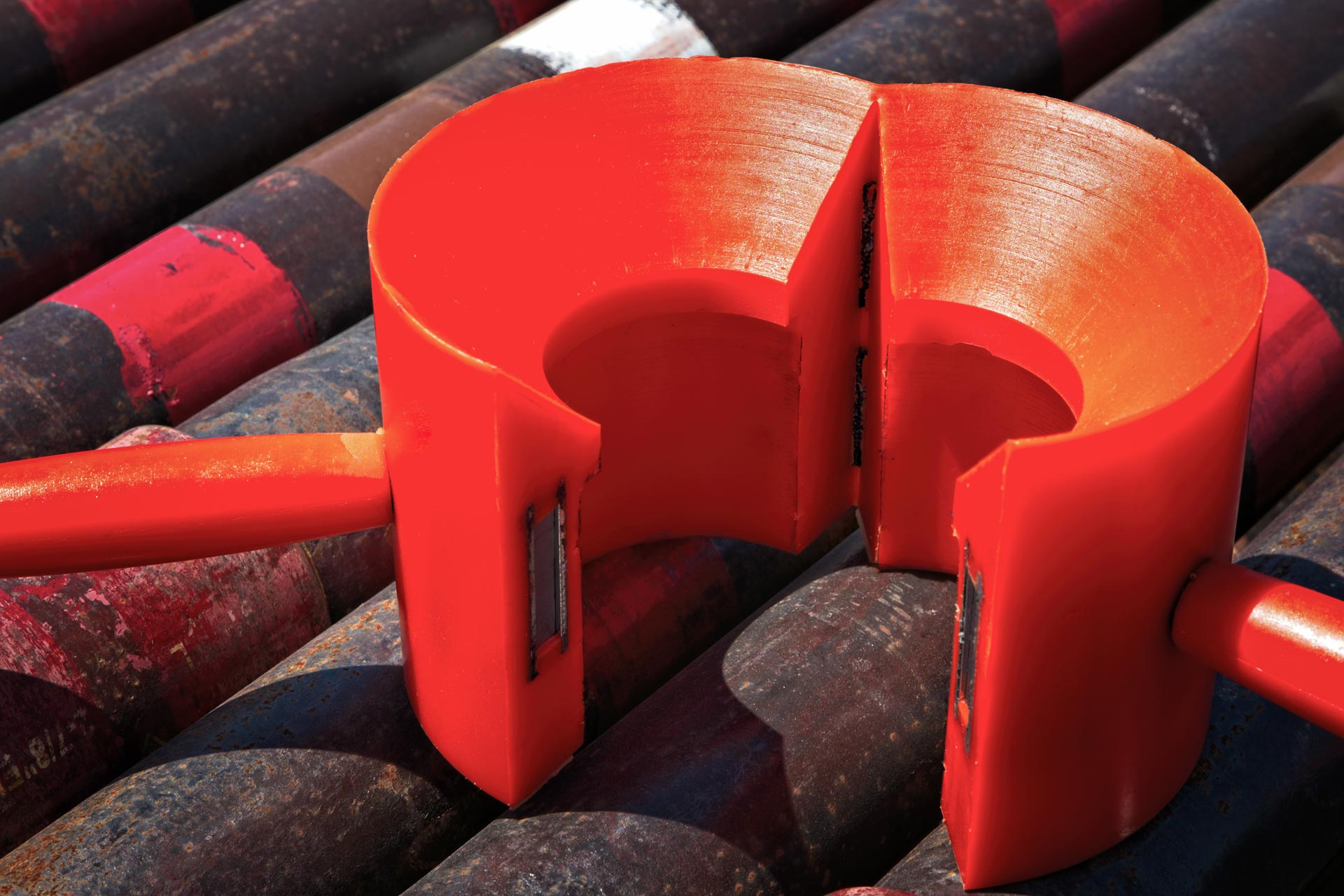

opened front view of orange standard duty roughneck stabbing guide
Description

Make up threaded connections with ease and proper protection

MSI’s roughneck stabbing guides are composed of steel inner cores and urethane outer shells, complete with handles for guidance and multiple closure types for a variance of needs. These stabbing guides are used during the makeup of a pipe string, connecting the pin and box threads to prevent face damage and/or connection failure. Functioning as a funnelled guide for the pin connection, each stabbing guide is molded to fit the specific dimensions of your thread profile, ensuring you have proper guidance for connecting pipe.

Our roughneck stabbing guides are offered in both heavy-duty and standard-duty options to serve your specific operational needs.

Roughneck heavy-duty features and benefits

  • Prevents damage to pipe threads during makeup
  • Thick steel core with thick urethane outer shell
  • Removable and replaceable handles
  • Large, quick-lock bolt closure for maximum durability
  • Available for tubing, casing, and drill pipe connections
  • Ideal for offshore applications

Roughneck heavy-duty applications

  • API tubing:  23/8 to 4½ in.
  • API casing:  4½ to 133/8 in.
  • API drill pipe: 23/8 to 85/8 in.

Standard-duty stabbing guide features and benefits

  • Prevents damage to pipe threads during makeup
  • Steel core with urethane outer shell
  • Removable and replaceable handles
  • Buckle closure and magnetic closures available
  • Available for tubing, casing, and drill pipe connections

Standard-duty stabbing guide applications

  • API tubing:  23/8 to 4½ in.
  • API casing:  4½ to 95/8 in.
  • API drill pipe: 23/8 to 85/8 in.
Resources
  • Roughneck Heavy-Duty Stabbing Guides Flyer

overhead view of an opened orange standard duty roughneck stabbing guide
black heavy duty roughneck stabbing guide
close up of plate on a black heavy duty roughneck stabbing guide
