SandBank Proppant Silo System

We’re taking on-site frac sand storage to a new level with the SandBank proppant sand silo system.

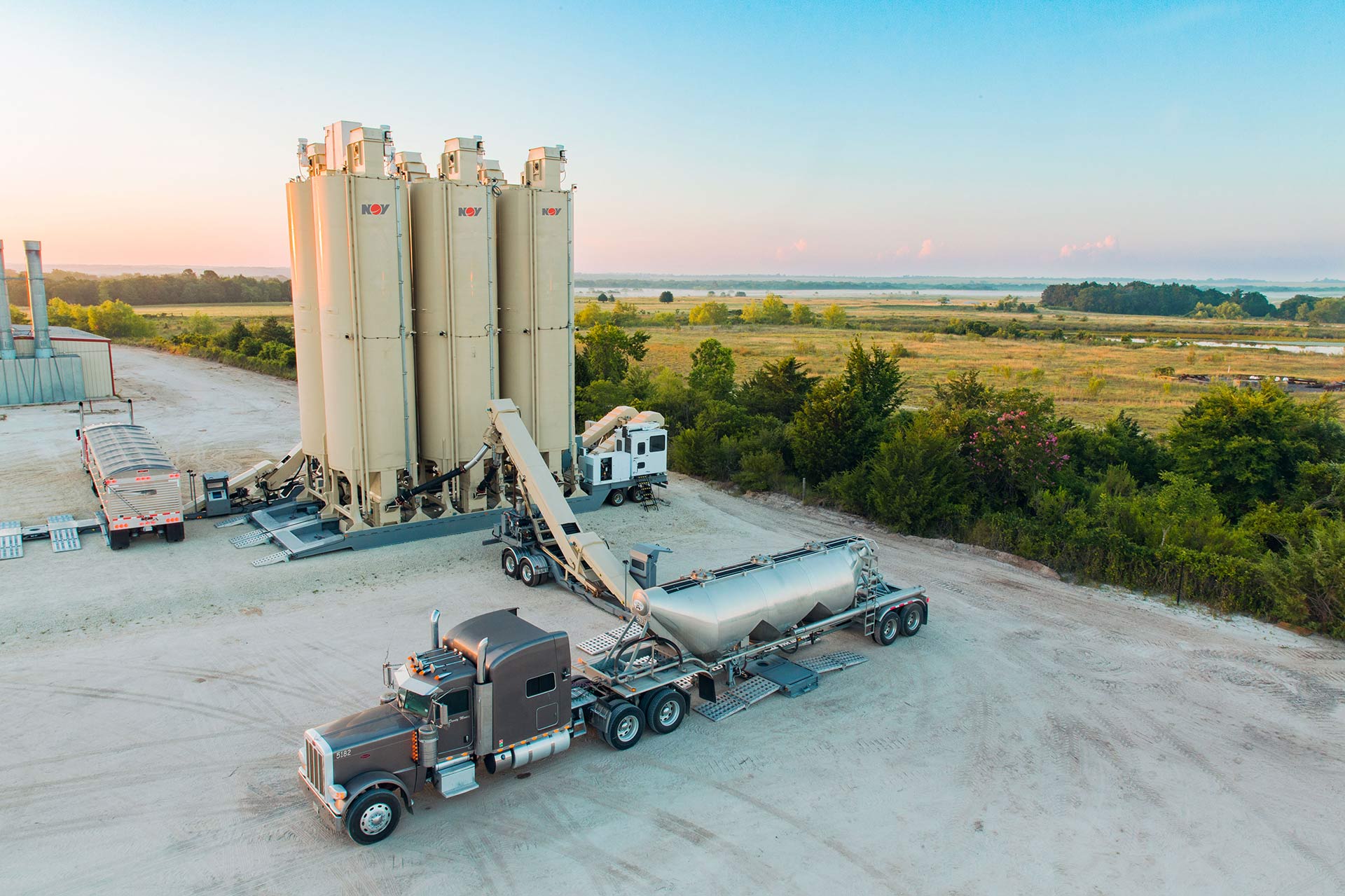

Aerial view of SandBank Proppant Silo System
Description

Hydraulic fracturing jobs require millions of pounds of proppant, and storage of this material remains an issue. Our new SandBank™ system—a mobile, bulk frac sand storage solution—is the answer.

This system incorporates six proppant storage silos with 400,000 lb of storage capacity each, a drive-over conveyor belt that eliminates the need for pneumatic proppant transports, and a bucket elevator system that loads up to 550 T/hr when used in a six-pack configuration. When it comes to on-site frac sand storage, the SandBank system is taking the industry to a new level.

SandBank frac sand storage setup

First, position the primary and secondary bases. Then, stand up each of the six silos onto a base and secure them. Using the quick connections, fasten cables and hoses to each silo. If desired, install backup crossover piping between silos and opposite the base conveyor. Once the silos are in place, position the drive-over silo loaders, lift the rear conveyor, install the distribution hosing to the bucket elevators, and connect communication cables to the bases. For maximum wind stabilization, position the silo push beams. Finally, position the blender distribution chute.

Additional silo features

  • Silo level sensor with inventory control
  • Overflow protection
  • Primary discharge gates hydraulically actuated
  • Secondary discharge gates hydraulically actuated (feed opposite base)
  • Integral bucket elevator system

Primary and secondary bases

  • Back-over bases with integral conveyors
  • Each base supports up to three fully loaded silos
  • Primary base features pressurized cabin with full system controls
  • Choke-filled fully enclosed conveyors
  • Discharge chute capable of feeding two blender hoppers
  • 480-VAC diesel electric generators
  • Critical function generator backup across bases and shore power option

Drive-over silo loader

  • Simultaneous unloading of two sand transports (pneumatic or grain-hauler style)
  • Integral drive-over belt with tractor trailer ramps
  • Gravity choke-filled conveyor
  • Selectable discharge diverter valve to feed any one of three silo bucket elevators
  • Swiveled diverter valve for pad layout optimization
  • Local operation station

Silo transport trailer

  • Integral lift frame
  • Hydraulic lift cylinders
  • Trailer hydraulic stabilization legs
  • Capable of standing up silo on base or on ground
  • Capable of lifting silo from two sides
  • Wireless controls
Specifications

SandBank Proppant Silo System Specifications

Designed storage capacity
  • Three or six silos with 400,000 lb of capacity each (water level)
  • 2.4 MMlb total proppant volume (six silos)
Delivery rates to blender
  • 700- to 20,000-lb/min system delivery per base
  • Features automatic or manual blender feed control
Silo fill rates
  • Primary loading via integral bucket elevator system
  • Max. load rate of 275 T/hr (roughly 9,000 lb/min) per three-pack arrangement
  • Secondary loading via 4-in. pneumatic fill pipes
Resources
  • SandBank Proppant Silo System Flyer

  • Pressure Pumping and Cementing 24-hour Support Contacts

Drive Over Loading System of SandBank Proppant Silo System
Drive-over loading systems
Bucket elevator system for SandBank Proppant Silo System
Bucket elevator system loads up to 550 T/hr
Enclosed feed path for SandBank Proppant Silo System
Enclosed feed path mitigates dust
Adjustable hopper for SandBank Proppant Silo Syste
Adjustable hopper
Ground portrait view of
Silo storage up to 400,000 lb each
Fully enclosed drive over conveyor system for SandBank Proppant Silo System
Fully enclosed drive-over conveyor system
