Based on an integrated design approach, the ENSIS series features scalable and fully customizable designs and next-generation crane and deck mission equipment developed by other groups in NOV's Marine & Construction business unit.
The ENSIS 5000 design is the largest and most capable of the series so far. GustoMSC's advanced engineering analysis skills on motions, dynamic positioning, and mooring and a thorough analysis of the installation process and its requirements guided the design as well as the mission equipment development.

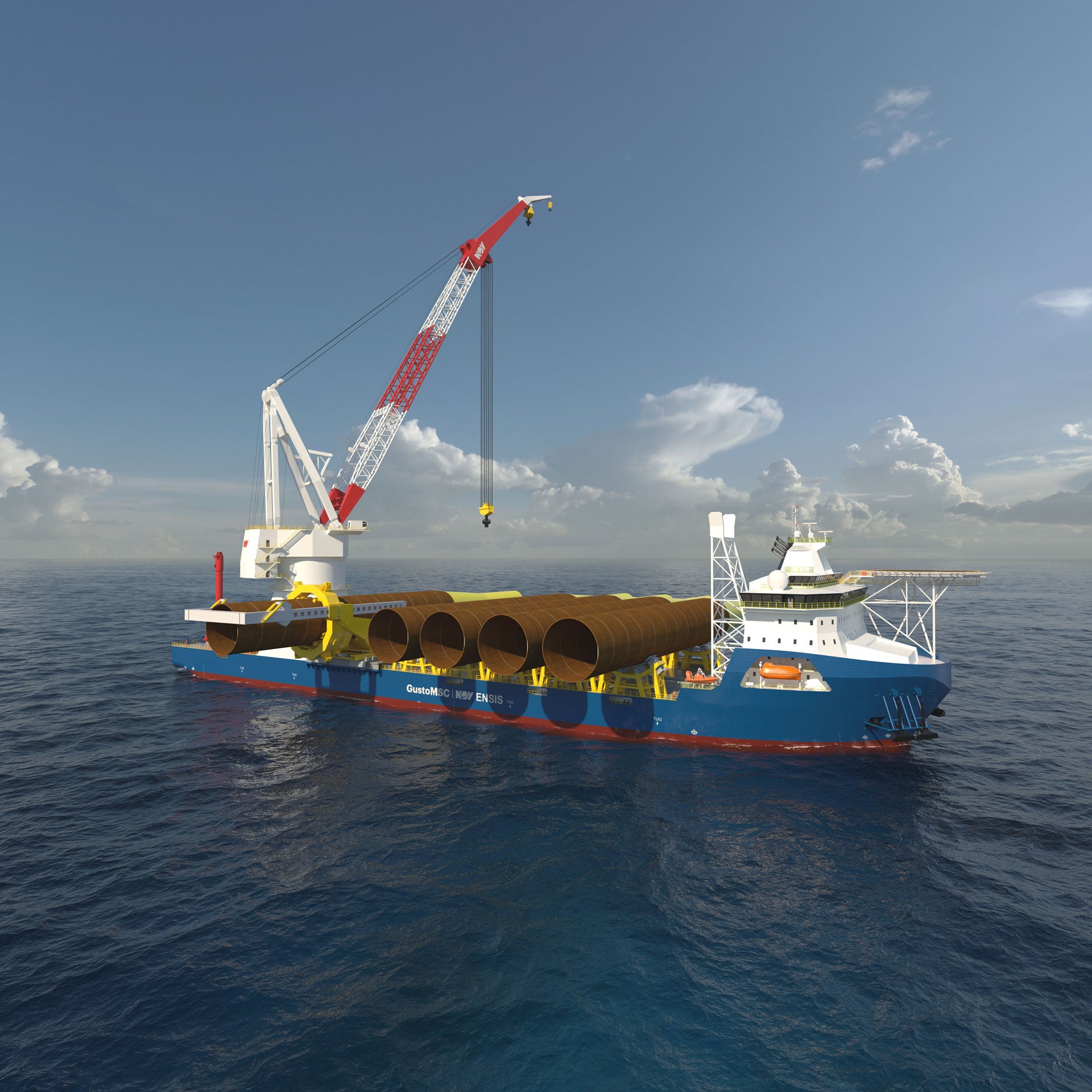

The highly robust heavy lift crane vessel is about 220 m long and 55 m wide, with 9,500 m2 of deck space. A 5,000t-rated heavy lift crane with an increased load moment and lifting height is in an optimized position to balance efficiency and flexibility. The vessel is designed around a combined upend hinge with a motion-compensated gripper that allows the ENSIS 5000 to take up to six XXXL monopiles in one trip. These capacities exceed present capabilities in the market. The draught is optimized to be able to operate from common marshaling yards, and a foldable A-frame allows mobilization around the world.
Environmental footprint reduction is a GustoMSC-wide focus. The latest energy-saving, reclamation, and storage solutions and new or alternative fuels are ready to be incorporated into the ENSIS 5000.
The ENSIS 3000 and ENSIS 4000 designs are based on the same principles and expertise as the ENSIS 5000 but are developed to address particular challenges or showcase specific possibilities. The ENSIS 3000 is a compact design that efficiently installs smaller monopiles, pin-piles, or suction anchors, while the ENSIS 4000 offers opportunities for the evolving US market and Jones Act-compliant vessels.
