ReAct Tracer Valve

As an integral part of the lower completion string, our ReAct Tracer Valve introduces a chemical tracer into the production fluid.


The ReAct™ Tracer Valve (RTV) introduces a chemical tracer into the production fluid upon expiration of a preprogrammed time delay. It is normally installed as an integral part of the lower completion string in either the motherbore and/or lateral section of the well.

Installation of the ReAct™ Tracer Valve can provide effective reservoir and well surveillance information without the normal risk and cost associations with intervention operations or intelligent completion hardware.A selection of tracer strips can be installed into the ReAct Tracer Valve for gradual dispersal, and/or a tracer fluid can be stored in the ReAct Tracer Valve's tracer chamber for a larger chemical fingerprint over a shorter time frame. The sealed tracer chamber is opened via the ReAct Tracer Valve's ReAct electronic actuation system, which features two ReAct electronic units that operate independent of each other for full redundancy. Following a delay of up to 150 days, the ReAct electronic actuation system allows well pressure to flood an atmospheric chamber and provide more than 30,000 lb of opening force to shift a containment sleeve to the open position. In doing so, the well flow is permitted to flow through the tracer chamber via the machined flow slots, driving the tracer into the wellbore fluids.


  • Field-proven electronics
  • Delayed activation of up to 150 days
  • Two independent electronic actuation systems
  • Sealed tracer chamber
  • Flow slots to drive tracer


  • Reducing cost and risk
  • Full control on tracer introduction
  • Reservoir and wellbore surveillance


  • Well clean-up monitoring
  • Long-term inflow monitoring
  • Water breakthrough location
  • Reservoir flow
  • Cross-flow evaluation

ReAct Tracer Valve Specifications

Tool size 6.625 in. 5.500 in.
End Connections 6⅝-in. OD premium 5½-in. OD premium
Material AISI 420 Mod 13% Cr AISI 420 Mod 13% Cr
OD 7.675 in. 6.200 in.
ID 3.870 in. 2.875 in.
Length 81.0 in. 81.0 in.
Tensile rating 465,000 lb 408,000 lb
Working pressure rating 5,000 psi 5,000 psi
Temperature rating 135 °C 135 °C
Time delay Programmable up to 365 days Programmable up to 365 days

Other sizes and ratings are available upon request

  • ReAct Tracer Valve (RTV) Data Sheet

Trust Center

Protecting your data is our priority. We are good stewards of your data, employing the best practices and people to provide you with confidence and peace of mind.

Learn more

Related Products

ReAct Completion Circulation Valve

Our ReAct completion circulation valve incorporates our unique ReAct technology to enable downhole tools to be remotely activated without control lines or intervention runs.

Learn more

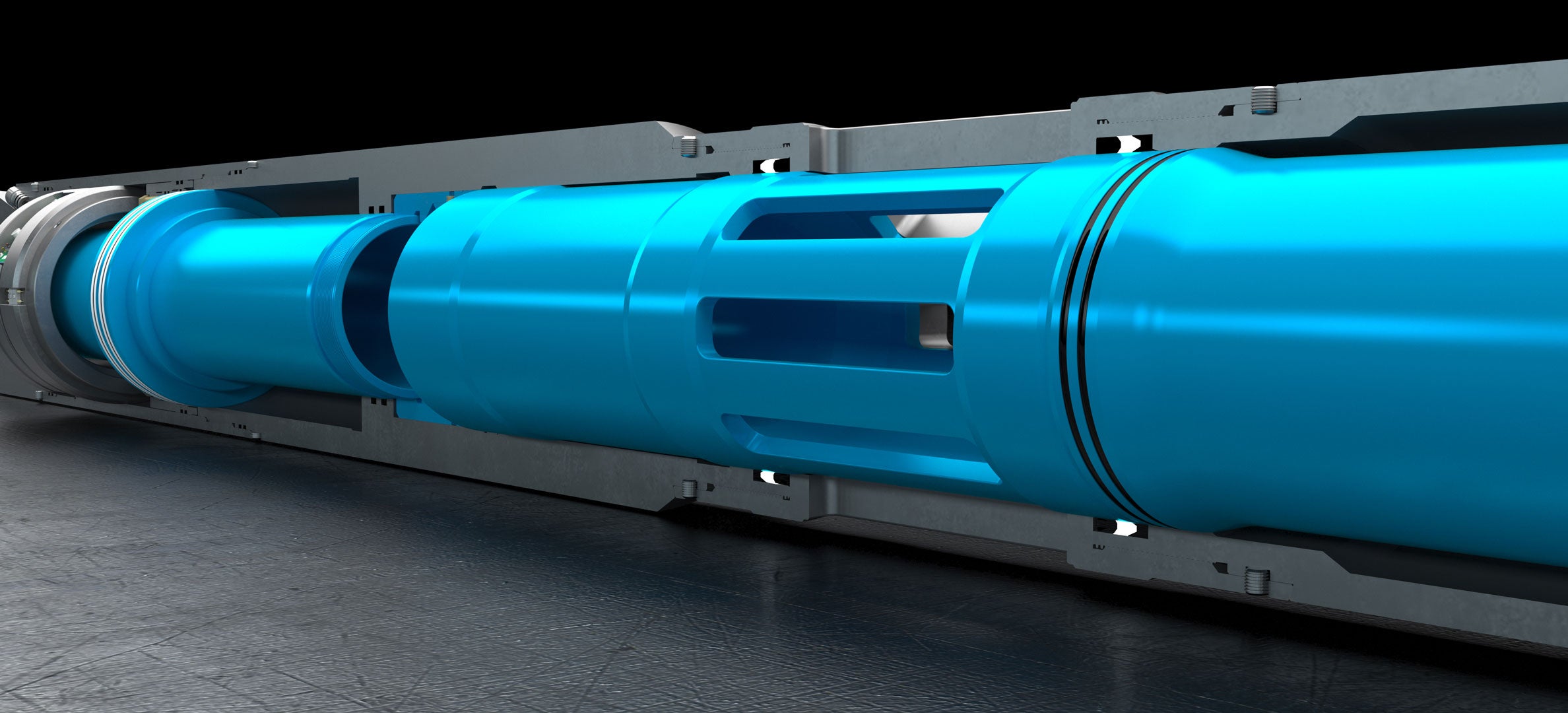

ReAct Clean Out Valve
