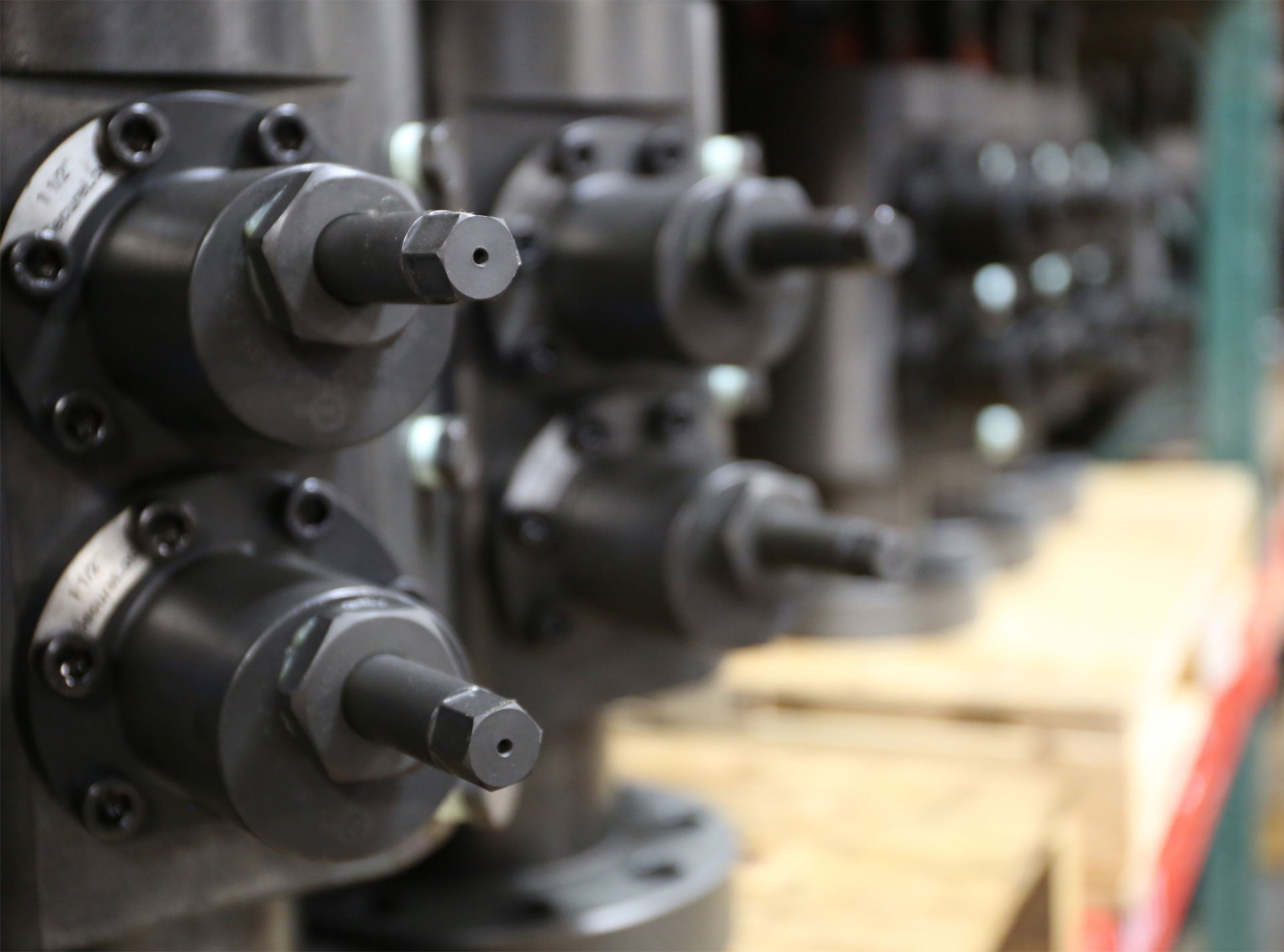

10K Dual-Ram ITBOP
Monitor high-pressure applications and achieve greater well control with our blowout preventers.
-
Description
-
Specifications
-
Resources
Description
We provide an extensive portfolio of blowout preventers for well control and monitoring high-pressure applications with various ram options.
Features/Benefits
- Standard models are NACE compliant
- Integral Flow Tee reduces stack height
- All-steel construction eliminates risk of casting porosity
Specifications
10K Dual-Ram ITBOP Ram Specifications
Note: Rams are directional. Rams cannot be removed and turned upside down to change top by bottom connection orientation.
| Top connection | 2.5625-in. 10K API studded |
| Bottom connection | 2.5625-in. 10K API flanged |
| Vertical bore | 2.59 in. |
| Working pressure | 10,000 psi |
| Body and cap material | Alloy steel |
| Ram material | Alloy steel |
| Ram screw and packing gland | Alloy steel |
| Ram size options | Blind, 1.25 and 1.50 in. |
| Ram screw packing ring | HSN (HNBR) |
| Side outlet connections | 2.0625-in. 10K API studded |
| Height | 18.5 in. |
| Weight | 334 lb |
| Width (rams open/closed) | 23.45/20.64 in. |
10K Dual-Ram ITBOP Specifications
Note: Below temperatures are suggested maximum short-term ratings and should not be considered as a continuous operating temperature.
| Ram material | AISI 4130 |
| Ram seal | HSN |
| Maximum temperature | 325 °F (163 °C) |
| Maximum H2S | 10% |
| Maximum CO2 | 20% |
