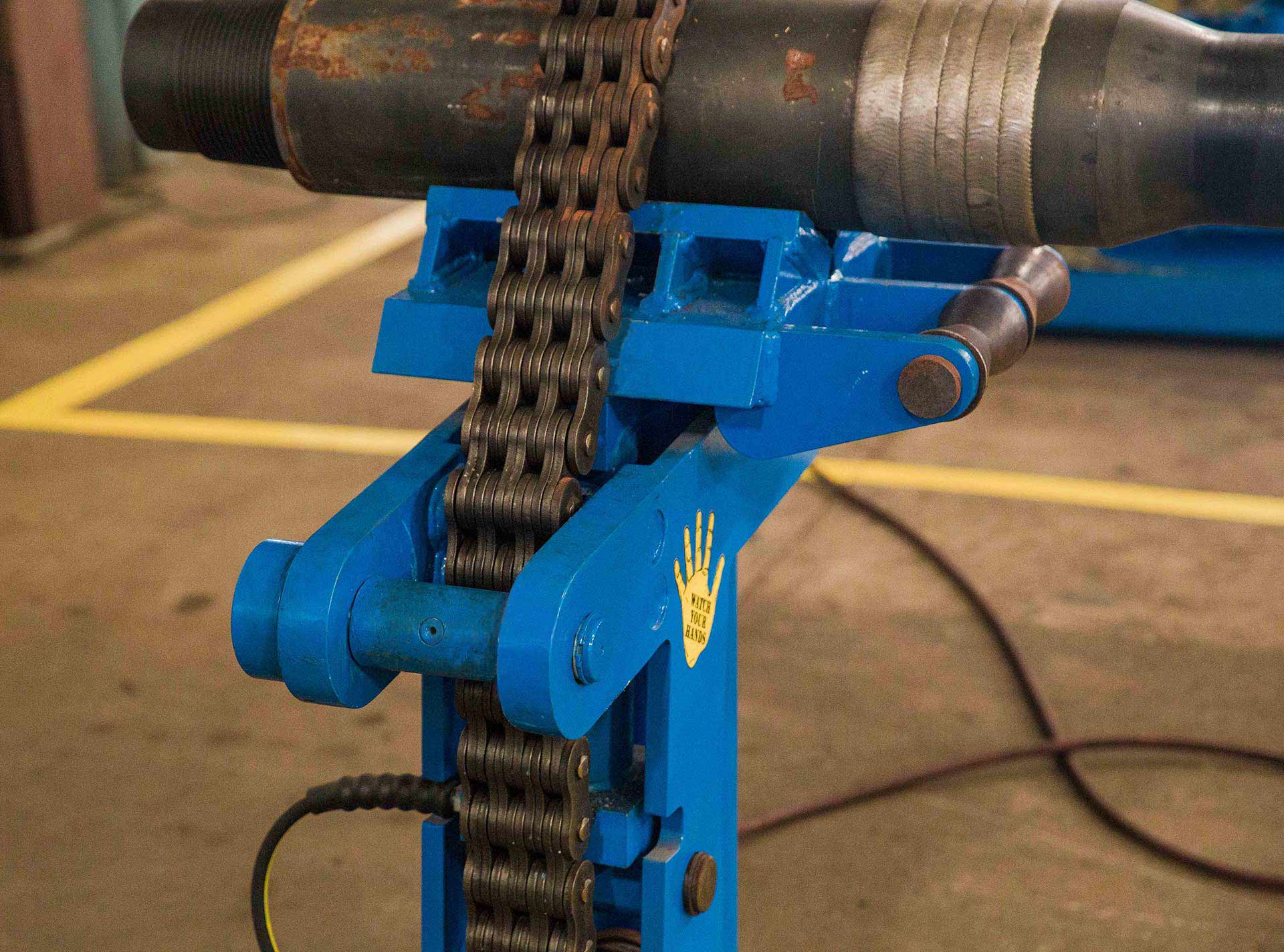

Angled close up shot of a Griffith Service Vise, in a warehouse setting

1609 Griffith Service Vise

The Griffith Service Vise is a floor-mounted unit designed to hold a variety of tubular components while service work is carried out.

Have a question? Contact us.
  • Description Description
  • Resources Resources
Description

The Griffith™ Service Vise work piece rests on a V-shaped tool support plate containing a series of tong dies. Clamping force is provided by a heavy leaf chain that is wrapped over the top of the work piece. When the chain latch is engaged, an air-over hydraulic pump supplies the power to clamp the work piece to the vise support plate.

Features/Benefits

  • Tool capacity: 3¾ to 12 in.
  • Torque capacity: 20,000 ft-lb
  • 10,000 hydraulic psi
Resources
  • 1609 Service Vise Technical Summary
Front facing shot of the Griffith Service Vise tool, in a warehouse setting
Close up shot of a Griffith Service Vise tool in a warehouse setting
