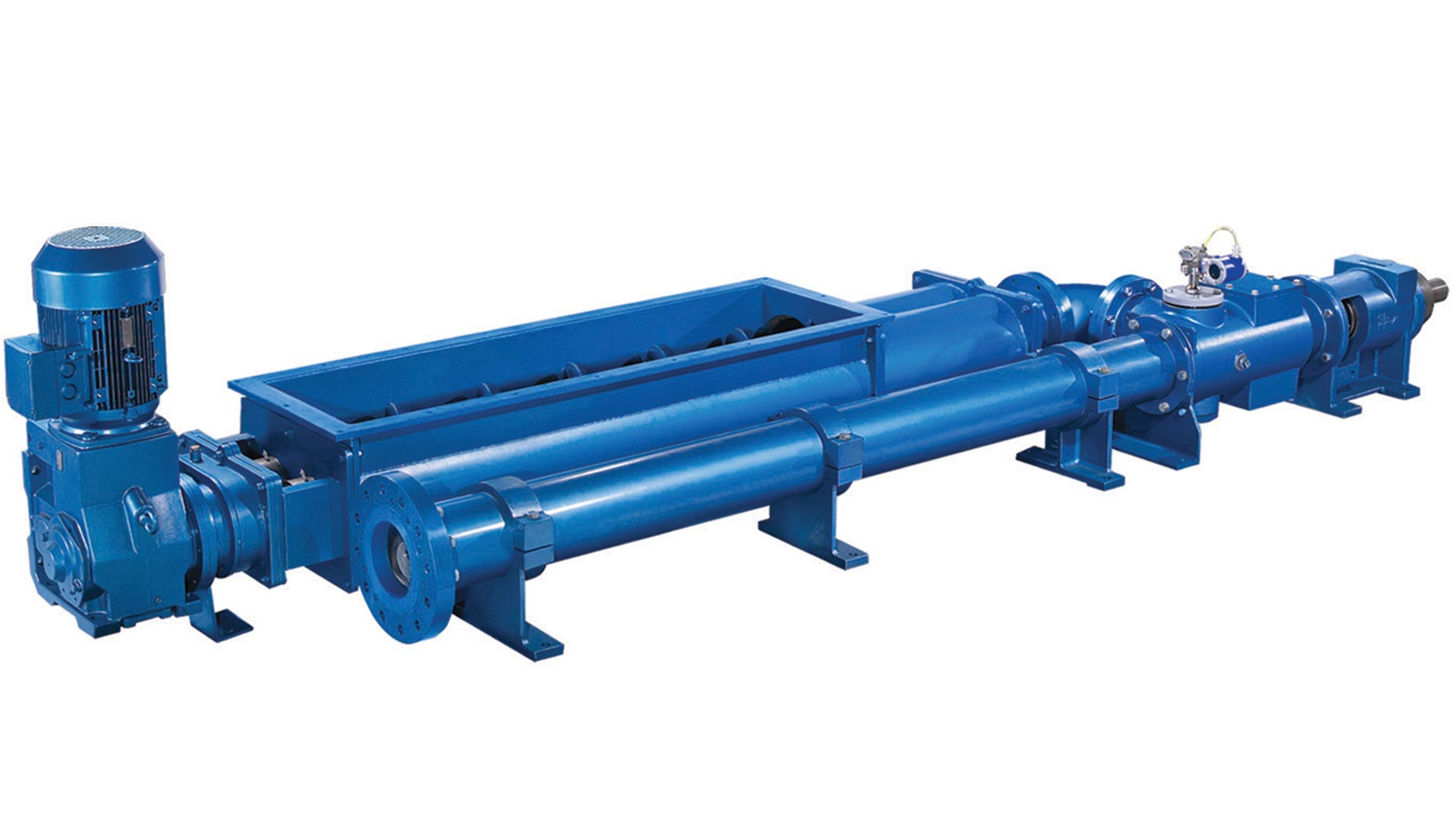

Register here Sign in2000 HS Pump System
The 2000 HS System combines high pump efficiency with low discharge pressure to provide unmatched performance in high-solids sludge cake transfer.
-
Description
Description
Compared to hydraulically driven, piston ram-type pumps and open conveyors, the 2000 HS System requires a much lower capital investment, lower operating costs, and less maintenance.
Features/Benefits
- Capable of varying auger sizes without changing pump arrangement to match the width of the TSF opening to the drop zone
- Concentric rotation in a close tolerance pressure tube allows the TSF to generate positive stuffing pressure to the pump inlet (normally 10 to 30 psi at the pump inlet)
- Dual augers counter-rotate to create a pull-down effect with the product
- Intermeshing augers provide self-cleaning action so product will not stick to the augers and fill in the flights
- Sidewalls are completely vertical into the augers, which does not allow product to bridge
- Close tolerance to sidewalls eliminates product ledge where bridging can gain a foothold
- TSF can be run at separate RPM from the pump, allowing control over the amount of stuffing pressure
- Universal joint is out of flow path for unobstructed flow to pump cavity inlet
- Wide-sweep pump inlet to lower friction loss
- Patented auger feed on rotor head stuffs product directly into the cavity without obstruction
