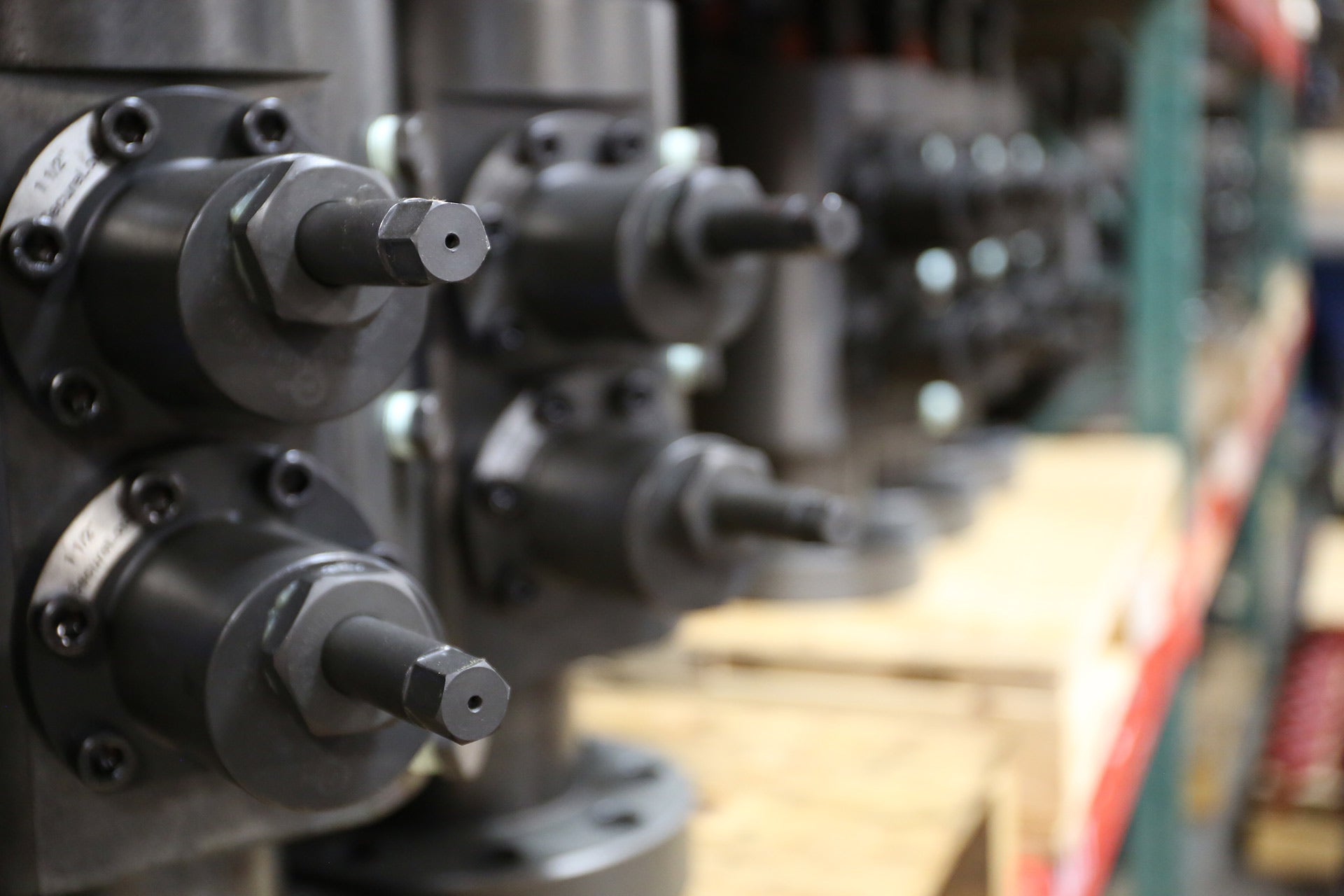

5K Single-Ram BOP
Monitor high-pressure applications and achieve greater well control with our blowout preventers.
-
Description
-
Specifications
Description
We provide an extensive portfolio of blowout preventers for well control with various connection and ram options.
Features/Benefits
- Standard models NACE compliant
- All-steel construction eliminates risk of casting porosity
Specifications
5K Single-Ram BOP Specifications
| Top connection | 2.5625-in. 5K API studded |
| Bottom connection | 2.5625-in. 5K API flanged |
| Vertical bore | 2.56 in. |
| Working pressure | 5,000 psi |
| Body and cap material | Alloy steel |
| Ram material | Alloy steel |
| Ram screw and packing gland | Alloy steel |
| Ram size options | Blind, 1.25 and 1.50 in. |
| Ram screw packing ring | HSN (HNBR) |
| Side outlet connections | N/A |
| Height | 13 in. |
| Weight | 153 lb |
| Width (rams open/closed) | 23.625 in./ 20.5 in. |
Note: Rams are directional. Rams cannot be removed and turned upside down to change top by bottom connection orientation.
Raw Materials
| Ram material | AISI 4130 |
| Ram seal | HSN |
| Maximum temperature | 325 °F (163 °C) |
| Maximum H2S | 10% |
| Maximum CO2 | 20% |
Note: Above temperatures are suggested maximum short-term ratings and should not be considered as a continuous operating temperature.
