AgitatorHE PLUS System

The AgitatorHE PLUS system increases ROP, improves weight transfer, and reduces stick/slip by reducing downhole friction in directional drilling applications with a lower system pressure drop.
AgitatorPLUS System
Have a question? Contact us.
  • Description Description
  • Resources Resources
Description

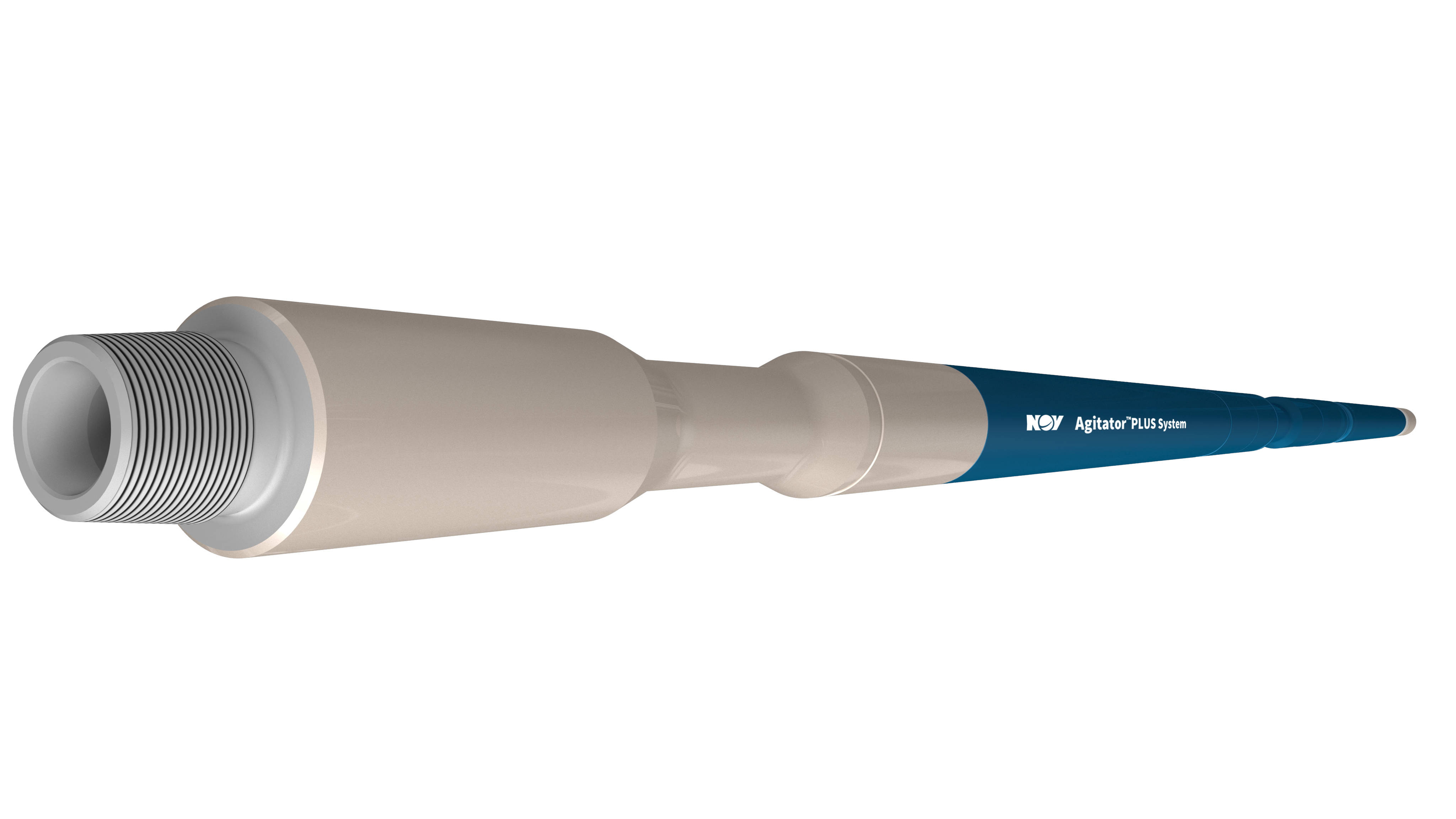

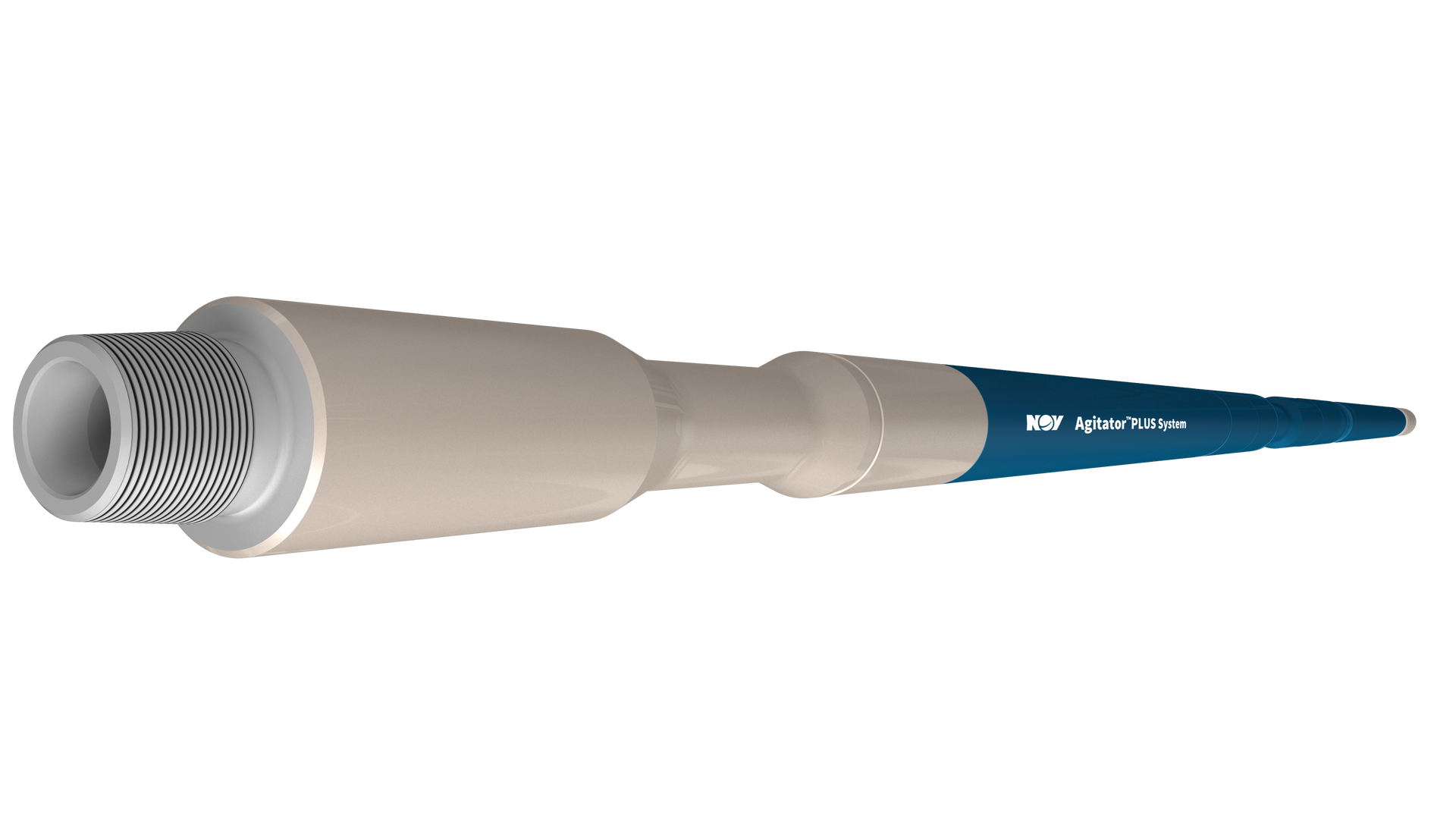

The Agitator™HE PLUS system combines our Agitator tool with a specially designed low-pressure shock tool to reduce friction and keep the drill string moving by introducing an axial oscillating motion. Optimized to function as a unified system, the AgitatorHE PLUS system is configured with an overall pressure drop of 300 to 400 psi. This allows you to maintain higher flow rates, run the AgitatorHE PLUS system on rigs with limited pump pressure capacity, and run two Agitator systems simultaneously in your drill string.

The AgitatorHE PLUS system is compatible with all downhole motors, rotary steerable systems, and MWD/LWD systems with pre-job planning.

Features/Benefits

  • Reduces downhole friction and stick/slip
  • Improves weight transfer and tool-face control
  • Extends bit life
  • Prevents weight stacking and drill string buckling
  • Increases sliding and rotary ROP
Resources
  • AgitatorPLUS System Technical Summary

Related Products

AgitatorHE System

Achieve greater energy efficiency and greater friction reduction with our AgitatorHE system.
