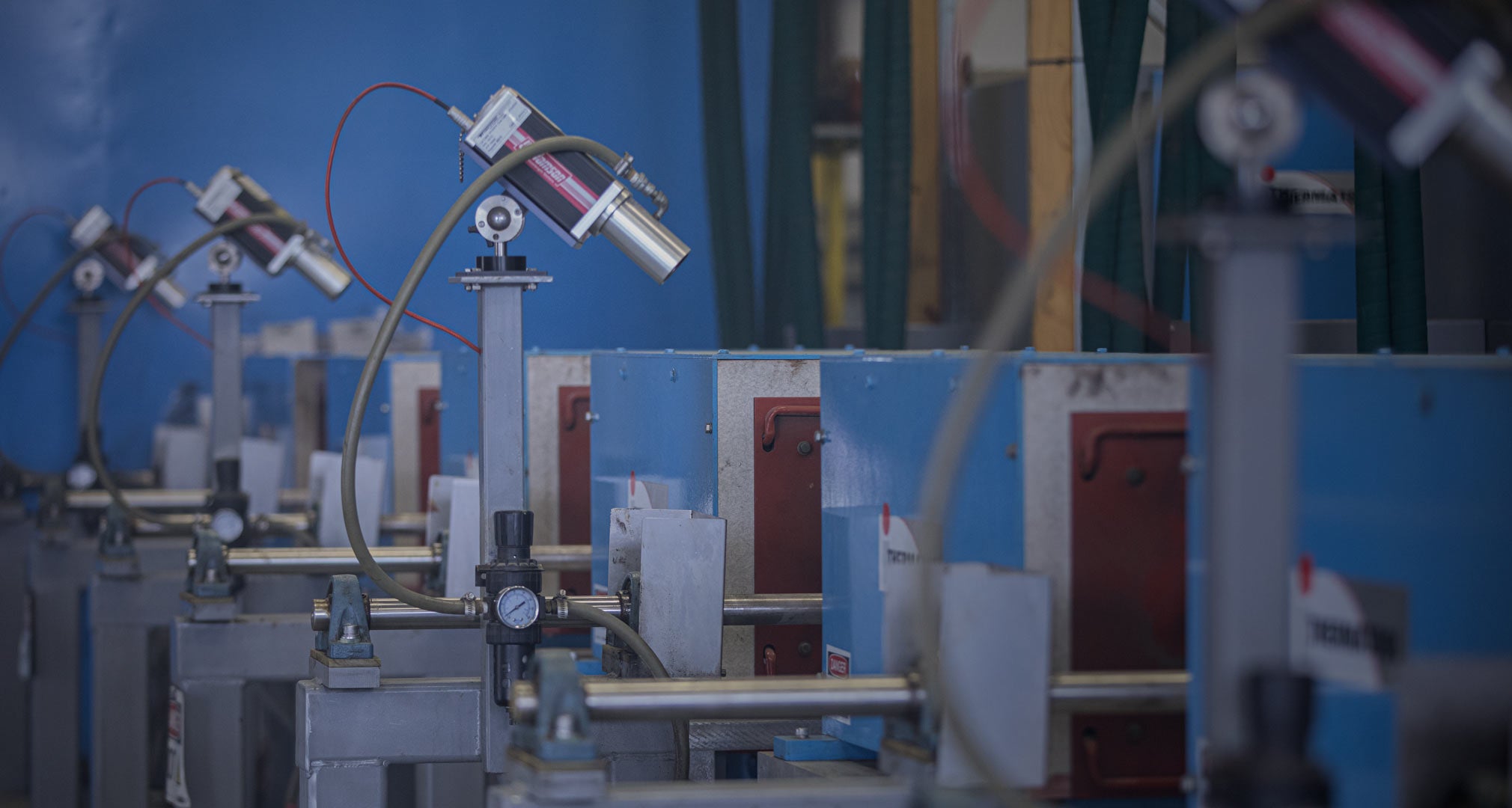

Rows of ATP Coiled Tubing being manufactured in facility

ATP Coiled Tubing

The Quality Tubing ATP coiled tubing uses state-of-the-art thermal processing throughout the manufacturing process to achieve the most advanced coiled tubing product available on the market.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Process and performance consistency improves your operations

Through years of research and development and strategic partnerships with leading providers of quench and tempered process equipment, Quality Tubing has developed the most consistent advanced thermally processed (ATP) coiled tubing.

ATP coiled tubing offers a major advantage over conventional coiled tubing in a vast range of applications. The fine-grained thermal processing at the steel manufacturer combined with best-in-class welding technology produces the highest quality green tube possible. Using the highest quality green tube in the final thermal processing step assures that all ATP strings exhibit optimum field performance. The normalization of the bias weld to the parent material in ATP coiled tubing eliminates the bias-weld fatigue spikes, which are often the number-one cause of retirement in the conventional offering.

ATP coiled tubing features a uniform, thermally processed microstructure throughout the entire length of the string, which is instrumental in producing a high-strength product with more consistent and improved field performance. Low-cycle fatigue performance and improved resistance to localized corrosion are consistent in the tube body and the bias weld.

ATP coiled tubing can be manufactured with TRUE-TAPER™ XR, resulting in a coiled tubing string with best-in-class corrosion resistance and extended-reach capabilities that are unmatched in the industry today.

Features

  • Utilizes fit-for-purpose raw material and the most advanced manufacturing process
  • Resistance to premature failure due to OD damage
  • No bias-weld fatigue derating
  • Lower fatigue accumulation at bias welds
  • Available in 2-, 2⅜-, and 2⅝-in. OD
  • Compatible with existing surface equipment
Specifications

ATP Coiled Tubing Specifications

ATP-110ATP-120ATP-130
OD range2 to 2.625 in. (50.8 to 66.7 mm)2 to 2.625 in. (50.8 to 66.7 mm)2 to 2.625 in. (50.8 to 66.7 mm)
Wall thickness range0.134 to 0.250 in. (3.4 to 6.4 mm)0.134 to 0.250 in. (3.4 to 6.4 mm)0.134 to 0.250 in. (3.4 to 6.4 mm)
Minimum yield strength110,000 psi (758 MPa)120,000 psi (827 MPa)130,000 psi (896 MPa)
Minimum tensile strength117,000 psi (806 MPa)125,000 psi (862 MPa)135,000 psi (931 MPa)
Maximum hardness30 HRC33 HRC37 HRC
Resources
  • ATP Coiled Tubing Brochure
  • ATP-110 Data Sheet
  • ATP-120 Data Sheet
  • ATP-130 Data Sheet
  • ATP-130 Case Study
  • ATP Field Welding Procedure Flyer
