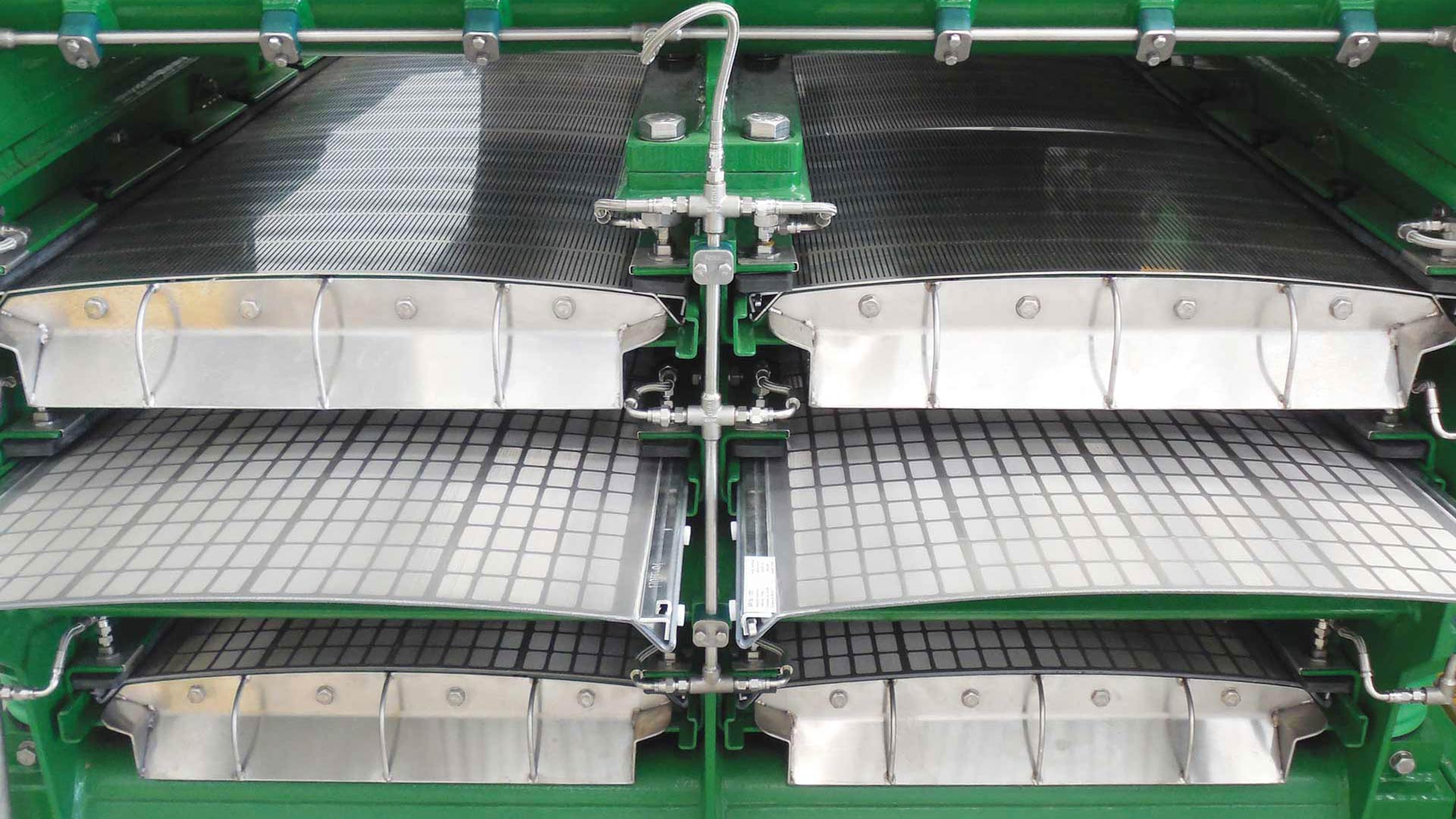

AX Screening System

Designed for use on the AX shaker fleet


Design excellence and unrivaled versatility

The Axiom Process screening system focuses on three product offerings that are provided to give you choice and flexibility to meet a wide range of drilling challenges.

Primary Triple-Fine screens

Triple-Fine screens were developed to help alleviate the problem of near-size particle blinding. This screen is made up of two layers of ultra-fine mesh supported by a coarser mesh backing cloth.


  • Layered screens are less susceptible to near-sized plugging. This is due to the interaction of all three layers of mesh, which reduces the likelihood of particles remaining lodged in the apertures.
  • Screen life is increased over a two-mesh configuration through improved transportation, which is affected by the interaction between the top and intermediate layers of mesh.

Single-Layer screen

The Single-Layer (SL) screen is generally used for the scalping (top) deck of the shaker. Unlike other shakers in the marketplace, the top deck of Axiom Shakers enables the use of the same small, lightweight, user-friendly screens as the primary decks. The SL screen is therefore designed to be the same size and have the same operability as the other AX Screening System screens.

Primary Triple-Coarse screens

Axiom has pioneered the use of our Triple-Coarse screen format. This is a three-layer screen very similar to the Triple Fine screen but employing a thicker wire diameter.


  • The benefits of three-layered construction (less susceptible to blinding) are delivered.
  • The heavier wire cloth delivers increased life for the very fine meshes. Axiom can deploy these screens on the AX-1 more readily than competitors due to the increased unit capacity of the AX-1.


  • API RP13C  Fully compliant
  • Weight  Promotes ease of handling, reduced costs of transportation, and inter-rig moves. Screen weighs 4.5 kg and can be carried by one person without compromising safety.
  • Size  Screen is universal to all AX-1 decks and is reversible to offer extended life.
  • Repairable  Uses proprietary locking plugs (no more losing them down the flowline or epoxy resin or sealant).
  • Access  Reduced screen length enables installation in restricted space areas.
  • Hook system  Each screen extracts the next. No more poking around with long tools to extract the rear screens.
  • Additional benefits  Improved HSE considerations and longer life. Full repairability and lower screening costs per meter. Improved solids control means significantly lower drilling fluids cost per meter.

AX Screening System Specifications

Part Number Description Non-Blanked Area Conductance D100 Separation API Number
AX10SL-2015 AX SL Shaker Screen API-10 2.91 60.72 2015 API 10
AX20SL-853 AX SL Shaker Screen API-20 2.91 20.51 852.5 API 20
AX30SL-603 AX SL Shaker Screen API-30 2.91 9.95 602.5 API 30
AX40SL-426 AX SL Shaker Screen API-40 2.91 5.81 426.3 API 40
AX60SL-258 AX SL Shaker Screen API-60 2.91 3.73 258.2 API 60
AX70TF-228 AX TF Shaker Screen API-70 2.84 3.00 228 API 70
AX80TF-190 AX TF Shaker Screen API-80 2.84 2.30 190 API 80
AX100TF-143 AX TF Shaker Screen API-100 2.84 1.90 143 API 100
AX120TF-120 AX TF Shaker Screen API-120 2.84 1.40 120 API 120
AX140TF-116 AX TF Shaker Screen API-140 2.84 1.60 116 API 140
AX140TF-114 AX TF Shaker Screen API-140 2.84 1.30 114 API 140
AX170TF-94 AX TF Shaker Screen API-170 2.84 1.00 94 API 170
AX200TF-80 AX TF Shaker Screen API-200 2.84 1.00 80 API 200
AX230TF-60 AX TF Shaker Screen API-230 2.84 0.50 60 API 230
AX270TF-50 AX TF Shaker Screen API-270 2.84 0.50 50 API 270
AX325TF-44 AX TF Shaker Screen API-325 2.84 0.50 44 API 325
AX400TF-40 AX TF Shaker Screen API-400 2.84 0.30 40 API 400
AX450TF-34 AX TF Shaker Screen API-425 2.84 0.20 34 API 450
AX100TC-145 AX TC Shaker Screen API-100 2.84 1.60 145 API 100
AX120TC-120 AX TC Shaker Screen API-120 2.84 1.10 120 API 120
AX140TC-111 AX TC Shaker Screen API-140 2.84 0.80 111 API 140
AX200TC-79 AX TC Shaker Screen API-200 2.84 0.60 79 API 200
  • AX Screening System Flyer
