Bondstrand Fiberglass Pipe

Our glass-reinforced epoxy piping provides lightweight and corrosion-resistant solutions to conventional materials.

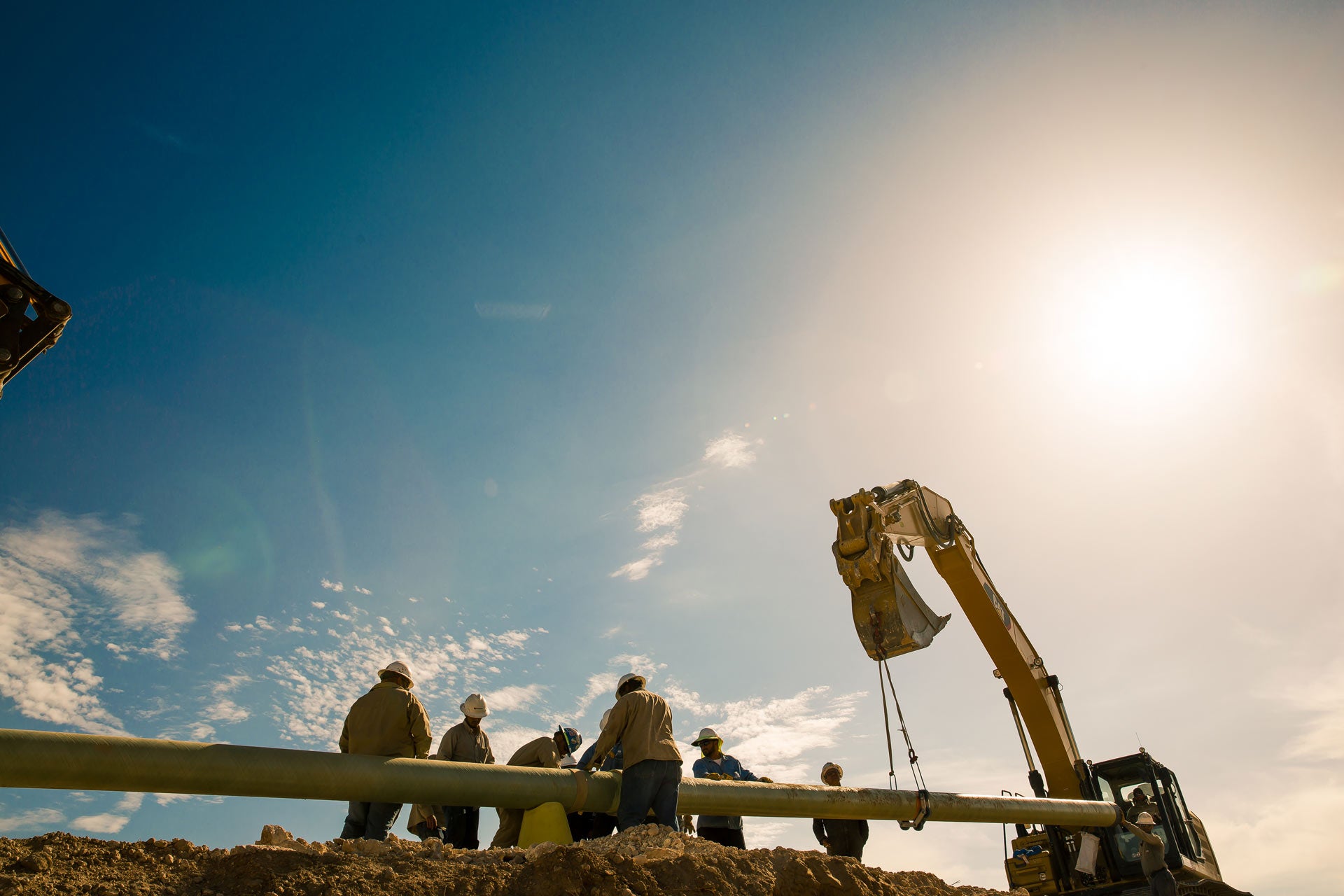

Bondstrand fiberglass pipe being installed onsite
Description

For over 65 years, Bondstrand™ has been a leading and trusted provider of corrosion-resistant, non-metallic composite solutions for marine and offshore, chemical, industrial, and mining project applications. Combined with our unique range of engineering services, Bondstrand provides end users with versatile alternatives to traditional materials—including glass-reinforced epoxy (GRE) piping, fiber-reinforced polymer (FRP) structures, and composite pressure vessels.

This wide implementation is possible because with a Fiber Glass Systems composite solution, you receive the support and coverage of a global organization with a commitment to your success. With our Bondstrand product line, we're upholding a legacy of excellence as we continue to reduce your total cost of ownership.

Our GRE and FRP products are lightweight, require minimal maintenance, are highly durable and corrosion resistant, and are ideally suited to harsh environments, in particular marine and offshore applications.

Bondstrand 2000 Series

Bondstrand 2000 is recommended for dilute acids and caustics, produced/hot water, industrial waste and condensate returns. Bondstrand 2000 piping system is designed and rated to meet requirements of ASTM D2996 and ASTM D2310, meeting criteria for Type 1, Grade 1, Class F, National Sanitation Foundation Standard 61 (Drinking Water Components) and MIL-P-29206A for aviation fuel. Product recommended for hot water service, such as condensate return lines.

Filament-wound pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Aromatic Amine cured epoxy for high toughness and temperature performance.  A wide range of lined filament-wound (GRE) fittings are available. For special fittings not listed in the product guide, please contact us.

Bondstrand 2400

Bondstrand 2400 is recommended for salt waters, brackish water, fire protection, potable/waste water and sewage, oil field reinjection, crude oil transmission and mild chemicals.

Bondstrand 2400 piping system is designed and rated to meet requirements of API 15LR, ISO 14692 and ASTM D2310. Taper/Taper adhesive bonded joint used for maximum pressure performance throughout product diameter and pressure range. Key-Lock mechanical joint can be used on pipe connections for ease and speed of assembly. Fittings in smaller diameters may be used over wide range of pressure classes.

Filament-wound (GRE) pipe with an integral Taper female x shaved spigot adhesive bonded joint or Key-Lock integral female x male mechanical joint. Fittings are GRE with integral Taper female bell ends with a wide range available. Product line is well suited for higher pressure applications or where higher service factors are needed.

Bondstrand 3000, 3200 and 3300

Bondstrand 3000 series are manufactured using aromatic amine or anhydride epoxy. Recommended for water, waste water, moderately corrosive liquids and mild chemicals.

Bondstrand 3000 series general purpose piping system with working pressure to 450 psig, depending on pipe size.   Dual-angle construction provides high stiffness characteristics and dimensional stability.  Operating surge pressure to 1.5 times rated operating pressure.  No thrust blocks are required at rated system pressure for most buried piping configurations and most soil conditions.  Recommended for water, waste water, moderately corrosive liquids and mild chemicals.

Filament-wound pipe with integral epoxy liner and exterior coating.  Fittings are available as follows: 2 to 6-inch elbows, tees and flanges are compression-molded, crosses, wyes, laterals and reducers are mitered.  8 "-16" elbows are filament-wound, tees, crosses, wyes, and laterals are mitered.  Flanges are of two-piece construction - Stub End and Flange Ring (van Stone).

Bondstrand 4000

Bondstrand 4000 piping system is designed for aggressive chemical service where epoxy products are suited (solvents, alkalis and non-oxidizing acids).

Bondstrand 4000 piping system is designed for aggressive chemical service where epoxy products are suited (solvents, alkalis and non-oxidizing acids). Meets USFDA requirements for food processing un 21CFR175.105 and 21CFR177.2880. Quick-Lock joining system allows close tolerance fabrication of system.

Filament-wound (GRE) pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Aromatic Amine cured epoxy for high toughness and temperature performance.  A wide range of lined filament-wound (GRE) fittings are available. For special fittings not listed in the product guide, please contact us.

Bondstrand 5000

Bondstrand 5000 is available in 1”-16” diameters with temperature range up to 200°F (93°C). This is a custom vinyl ester pipe available in Asia, Europe and South America and is recommended for most chlorinated and acidic mixtures. Bondstrand 5000 is  a custom vinyl ester pipe available in Asia, Europe, and South America . It utilizes the Quick-Lock straight/taper adhesive-bonded joint featuring integral pipe stop in bell for predictable, precise laying lengths. Vinylester resin matrix recommended for oxidizing acid service and water purification systems. Specialty resins can be used for services in excess of 200°F (93°C).

Filament-wound Glassfiber Reinforced Vinyl Ester (GRVE) pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Premium grade resins used for high temperature performance.  A wide range of lined filament-wound (GRVE) fittings are available. For special fittings not listed in the product guide, please contact us.

Bondstrand 7000

Bondstrand Series 7000 fiberglass pipe, fittings and flanges incorporate high-strength conductive filaments to prevent accumulation and discharge of potentially dangerous levels of static electrical charges.

Bondstrand 7000 piping system provides electrical conductivity to allow dissipation of electrical charge built up by flow of high-purity, non-conductive fluids, such as Jet Fuel. Unlined construction provided inside-to-outside as well as end-to-end conductivity with co-mingled carbon and glass fibers throughout the pipe wall. Suitable for primary piping within secondary containment (limited access) when connected to ground at discrete location.

Filament-wound (GRE) pipe with Quick-Lock adhesive-bonding systems for close tolerance systems. Aromatic Amine cured epoxy for high toughness and temperature performance. Product designed to provide electrical conductivity to eliminate static electricity accumulation generated by high purity fluids, such as Jet Fuel. A wide range of conductive, lined filament-wound (GRE) fittings are available. For special fittings not listed in the product guide, please contact us.


Specifications

Bondstrand Fiberglass Pipe Specifications

Bondstrand Pipe Series

Bondstrand 2000

Bondstrand 2400

Bondstrand 3000, 3000A, 3200, 3200A, 3300, 3300A

Bondstrand 4000

Bondstrand 5000

Bondstrand 7000

Size Range

1"-16" (25 mm - 400 mm) Inner Corrosion Barrier: 0.020" (0.5 mm) resin-rich reinforced liner

2"-40" (50 mm - 1000 mm)

2"-16" (50 mm-400 mm)

1"-16" (25 mm - 400 mm)

1"-16" (25 mm - 400 mm)

1"-16" (25 mm - 400 mm)

Inner Corrosion Barrier

N/A

0.20" (0.5 mm) resin-rich reinforced liner (optional)

0.020" (0.5 mm) neat resin liner

0.050" (1.3 mm) resin-rich reinforced liner

0.050" (1.3 mm) resin-rich reinforced liner

N/A

Pressure Rating

232 psi. (16 bar) Pipe Construction: Reciprocal Filament Wound, Aromatic Amine cured Epoxy

10 to 50 bar

150 to 450 psi. (10 to 32 bar)

150 psi. (10 bar)

150 psi. (10 bar)

232 psi. (16 bar)

Pipe Construction

N/A

Reciprocal Filament wound, Aromatic Amine cured epoxy



Continuous Dual-Angle Filament wound, Anhydride or Aromatic Amine (A-Series) cured epoxy

Reciprocal Filament Wound, Aromatic Amine cured Epoxy



Reciprocal Filament Wound, Vinylester Resin



Reciprocal Filament Wound, Aromatic Amine cured Epoxy with co-mingled carbon fibers

Temperature Range

-40°F - 250°F (-40°C - 121°C)



-40°F - 200°F (-40°C - 93°C)



-40°F - 150°F (-40°C - 66°C) - Anhydride -40°F - 210°F (-40°C - 99°C) - Aromatic Amine

-40°F - 200°F (-40°C - 93°C)



-40°F - 200°F (-40°C - 93°C)



-40°F - 200°F (-40°C - 93°C)



Joining Method

Quick-Lock Adhesive Bonded

Taper/Taper Adhesive Bonded or Key-Lock Mechanical joint

Taper/Taper Adhesive Bonded

Quick-Lock Adhesive Bonded

Quick-Lock Adhesive Bonded

Quick-Lock Adhesive Bonded

Fittings

Quick-Lock Adhesive Bonded

Filament Wound with integral Taper Bell ends. Single-piece or van Stone Flanges (size dependent).

2"-6" compression molded, 8"-16" filament wound. van Stone Flanges.

Filament Wound with integral Quick-Lock Socket ends. Single-piece Flanges

Filament Wound with integral Quick-Lock Socket ends. Single-piece Flanges

Filament Wound with integral Quick-Lock Socket ends, conductive liner. Single-piece Flanges

Chemical Service

Dilute acids and caustics, produced/hot water, industrial waste and condensate return, general purpose.

Water (potable, cooling, produced, waste, salt and fire (FM approved), crude oil and gas, brine solutions, higher pressures.)

Water, waste water, mildly corrosive liquids, and mild chemicals.

Acid drains, chemical processes, slurries, food processing, non-oxidizing chemicals and acids

Chlorinated and acidic mixtures

Industrial and jet fuel services (Applications requiring anti-static properties)
