BRANDT Swarf Screening System

Designed to address a problem faced by many rigs, our swarf screen system eliminates milled swarf clogging and premature damaging of shaker screens.

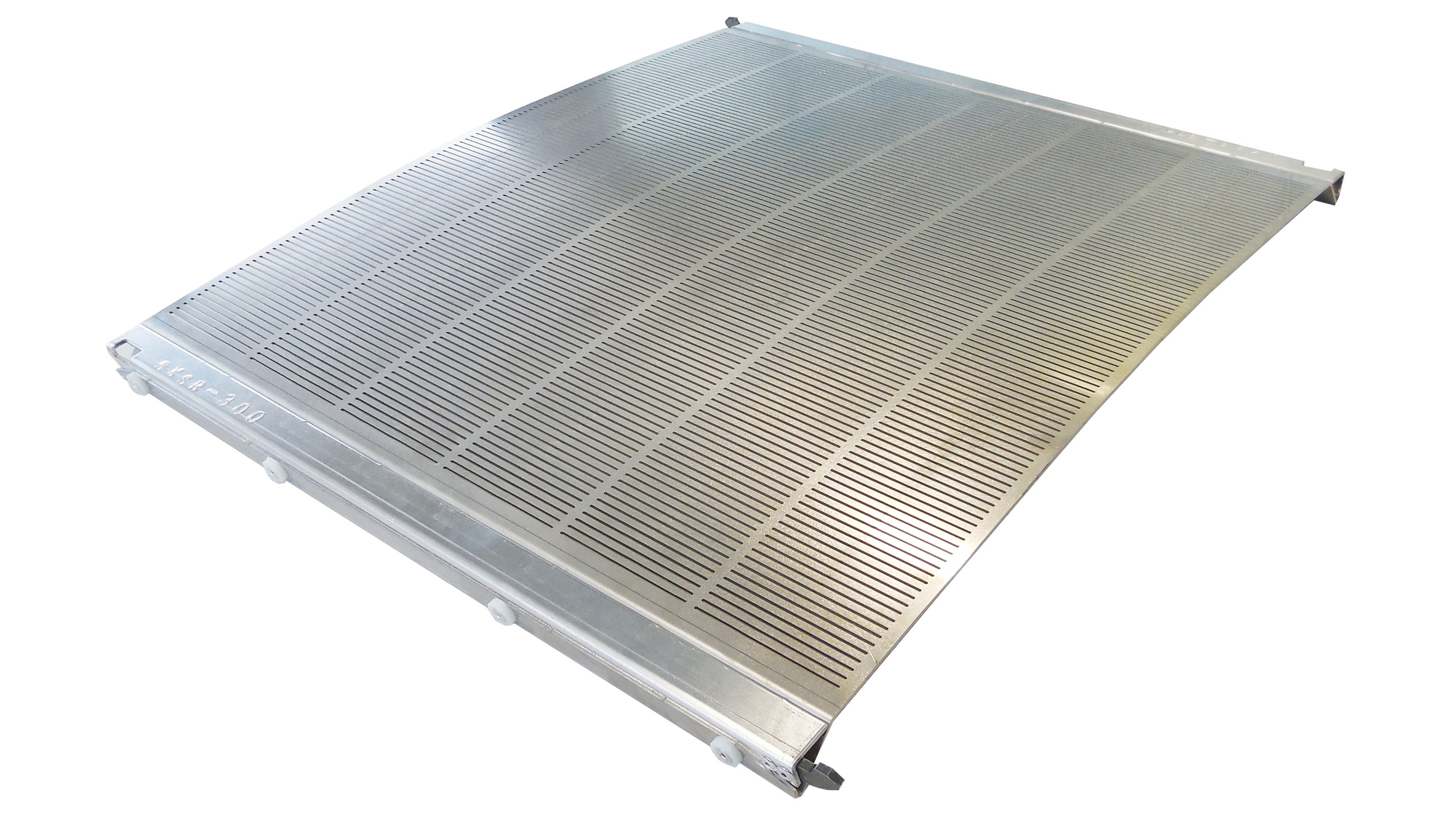

Render of BRAND Swarf Screening System
  • Description Description
  • Resources Resources
Description

Manufactured in stainless steel and with the attention to detail applied to the screens, the BRANDT Swarf Screen System provides a versatile, cost-effective, clean, safe, and hassle-free option for removing swarf at the flowline. Available for both the BRANDT AX series of shakers and for the BRANDT VSM 300™, the swarf screens simply replace the original screen panels, so no equipment modification is necessary.

The unique AX and AX300PLUS swarf screens offer the only in-shaker removal solutions on the market—transforming a shale shaker into an efficient swarf removal tool.

Each batch can be tailor made to maximize throughput based on expected swarf specifications.

Features/Benefits

Plate design: A laser-cut stainless-steel plate ensures a slick finish, reducing the likelihood of birds’ nests forming.

Protection: The system is proven to protect woven mesh screens on lower decks, dramatically reducing screening costs and improving HSE.

Built to last: The use of durable materials and a proven clamping system allows the Swarf Screening System to enjoy an extended life cycle, resulting in lower screen costs and zero downtime.

Weight: Using the same design principles as the AX Screening System gives each Swarf Removal Screen a weight of 6 kg—promoting ease of handling and simple insertion/removal.

Storage: With the same physical dimensions as a standard AX Screen, each Swarf Removal Screen can be easily stored in a standard BRANDT AX Screen Rack.
