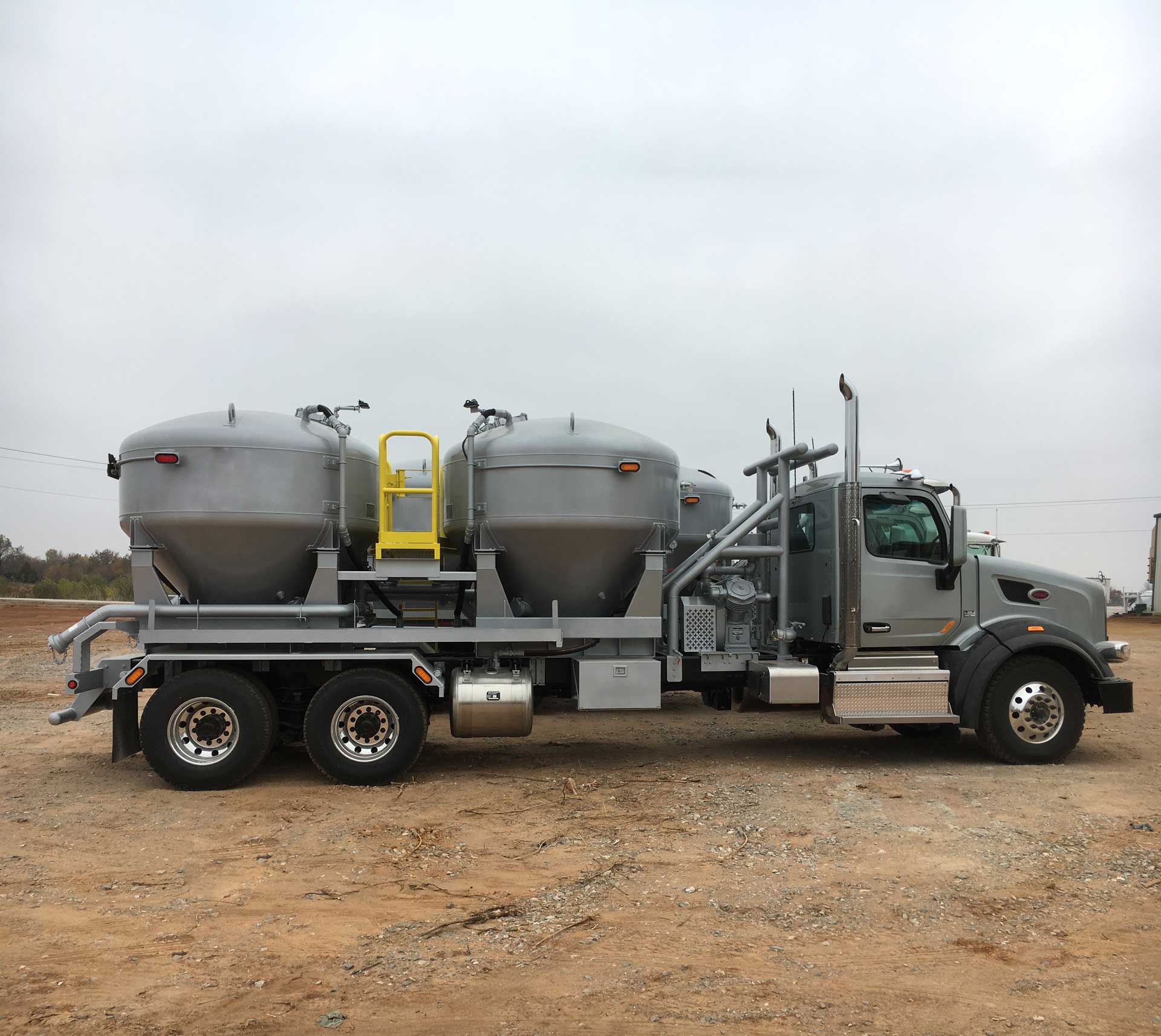

A parked bulk cement body load transport truck

Bulk Cement Body Load Transport Truck

The Wilco 400-ft³ body load bulk handling truck’s small footprint and rugged design approach optimize cost, increase product longevity, and make maintenance simpler.

  • Description Description
  • Resources Resources
Description

The cradle-type vessel support structures in this Wilco™ product design allow for a lower center of gravity, and the large elevated work platform between vessels gives access to vessel manways and main vent release controls. The headache rack is used as an air cooler for the aeration system. Air flows from the compressor through the headache rack and then to the bulk vessels. The heat exchange through the headache rack reduces the air temperature for more efficient performance.

Features/Benefits

  • Two 205-ft³ bulk load vessels designed to ASME Section VIII, Div. 1 standards for 36 psi and -20 to 250 °F
  • APOG air compressor powered by hot-shift PTO
  • 12-ft × 24-in. hose and fittings storage rack on curb side
  • Controls for compressor, PTO, aeration, discharge, and vent located near driver’s side behind cab
  • 5-in. discharge line with purge line and sampling port
