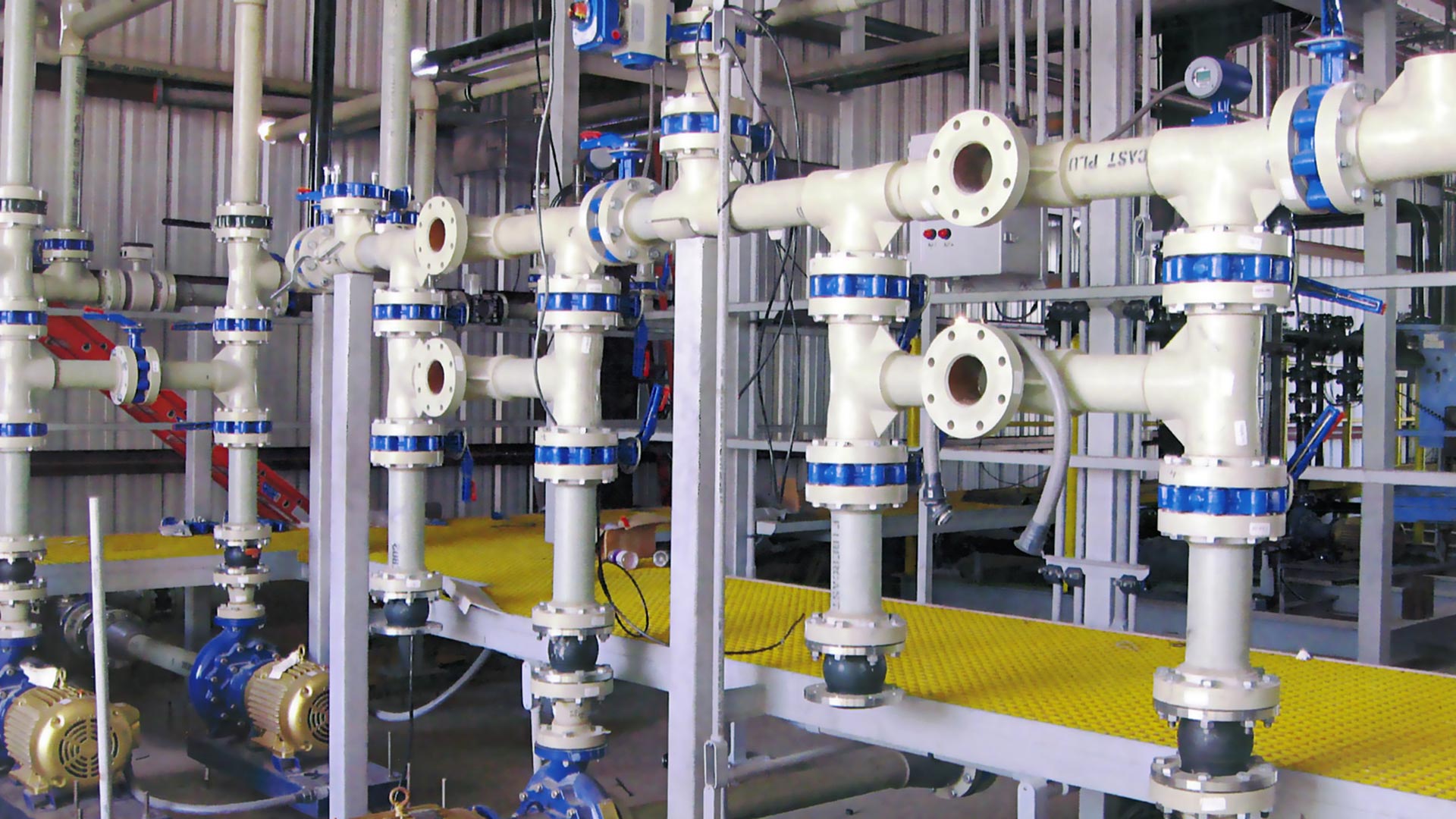

A white and blue Centricast Fiberglass Pipe system

Centricast RB-2530 Fiberglass Pipe

The most chemically resistant pipe in the market.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Centricast™ RB-2530 pipe is manufactured with glass fabrics and a highly resilient formulation of aromatic amine-cured epoxy resin. The excellent chemical resistance of the Centricast RB-2530 piping system provides longer service life than traditional piping materials. Pipe performance conveying chemical mixtures and hot caustics is particularly exceptional, resulting in a reduction in maintenance and replacement costs. Centricast RB-2530 proprietary resin formulation provides the toughness for many corrosive slurries and comes in 20-ft nominal or exact lengths.

The unique construction of centrifugally cast RB pipe offers an easy-to-install epoxy piping system with the best support spacing in the industry. With a 100% resin corrosion barrier, Centricast piping systems provide the most chemically resistant pipe in the market. These pipes have 60 years of successful history in the steel pickling, chloro-alkali, pharmaceutical, power generation, and chemical processing industries.

Specifications

Centricast RB-2530 Fiberglass Pipe Specifications

Size range 1 to 14 in.
Inner corrosion barrier 100-mil liner
Pressure ratings 150 psig (10 bar); higher pressure ratings in smaller sizes
Temperature range Up to 250 °F (121 °C)
Fittings Socket or flanged and sealable drains
Chemical service Chemical process solutions, hot caustics, solvents, acids, salts, and corrosive combinations
Resources
  • Centricast RB-2530 Data Sheet
  • Centricast RB-2530 Piping System Spec Sheet
  • Centricast Piping System 1"-14" Fittings and Accessories Catalog
  • Centricast Sealable Drains Data Sheet
  • Secondary Containment Pipe and Two-Piece Fittings Data Sheet
  • Chemical-Industrial Distribution List
  • Chemical and Industrial Piping Systems Brochure
  • Fiberglass Engineering and Piping Design Guide
  • Mining and Milling Brochure
  • Comision Federal de Electricidad (Mexico) Case Study
  • Acid Regeneration Piping (Pennsylvania) Case Study
  • Fermentation Waste (Illinois) Case Study
  • Navajo Generating Station (Arizona) Case Study
  • Odor Control Piping (Idaho) Case Study
  • Pharmaceutical Sanitary Drain Lines (California) Case Study
  • Recirculation Water (Geothermal) Case Study
  • Steel Pickling Line (Hot HCI) (Ohio) Case Study
  • Wastewater Treatment Piping (Ohio) Case Study
