Choke Valves

Control flow rate and reduce pressure for processing of produced fluids farther downstream with the Anson choke valves.

AH2 Adj choke valve against a white background
  • Description Description
Description

Choke valves are used to control flow rate and reduce pressure for processing of produced fluids farther downstream. Our Anson™ choke valves are offered in two basic body styles (adjustable and positive) and three body types (AH2, AD2, and AR2).

Anson choke valves have interchangeable bodies. The bonnet can be removed on the adjustable valve and replaced with the positive choke valve bonnet, and vice versa. In most cases users will determine the desired calibrated orifice size using the adjustable valve and then convert this to the positive valve with the corresponding choke bean in place.

Adjustable choke valve

The Anson adjustable choke valve is manually operated via a handwheel. This is a stem and seat design, with the desired flow rate achieved by turning the handwheel to achieve a calibrated orifice size. The orifice size is visible on a sleeve located above the valve bonnet.

Positive choke valve

An Anson positive choke valve uses a choke bean to provide a fixed flow rate. This valve has no manual means of operation. The choke beans are supplied separately and are measured in orifice sizes of 64ths of an inch.

Choke valve models

  • The AH2 is the most widely used within the field, available in 1- and 2-in. maximum orifice sizes. The AH2 valves can be supplied with either Anson hammer union ends (standard or sour service) or API 6A flanged connections.
  • The AD2 is a ¾-in. orifice valve, normally supplied with Figure 1502 union end connections. The AD2M is identical in valve design to the AD2 but has nonstandard leg lengths that allow it to be used as a direct replacement for valves in existing choke manifold assemblies.
  • The AR2 is a ¾-in. orifice valve developed for a maximum working pressure of 6,000 psi, with Figure 602 union end connections.
Close up image of positive choke manifold
Close up image of AH2 Positive Choke Valve
AH2 Adjustable Choke Valve close up image

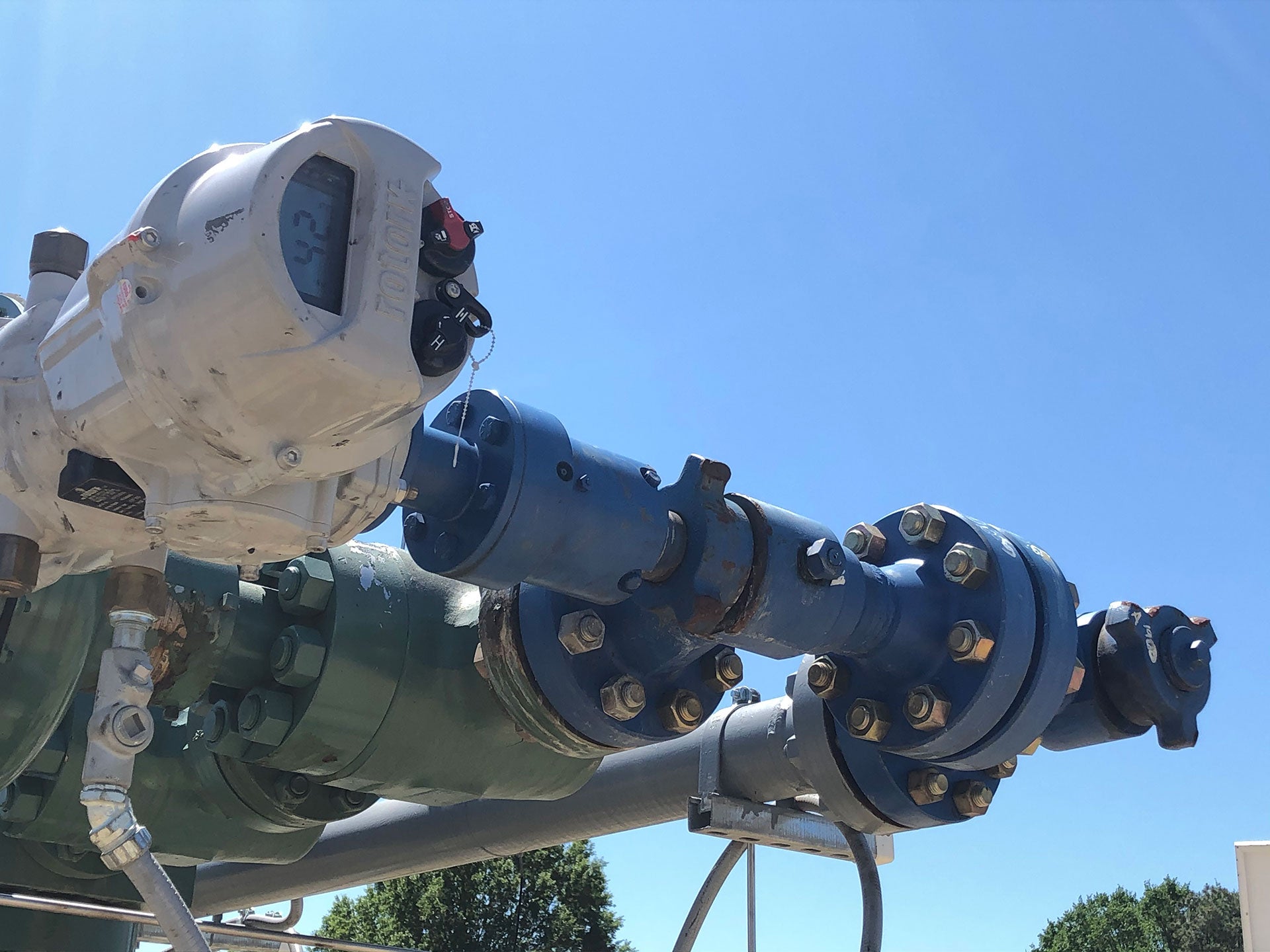

Close up image of Choke Valve
