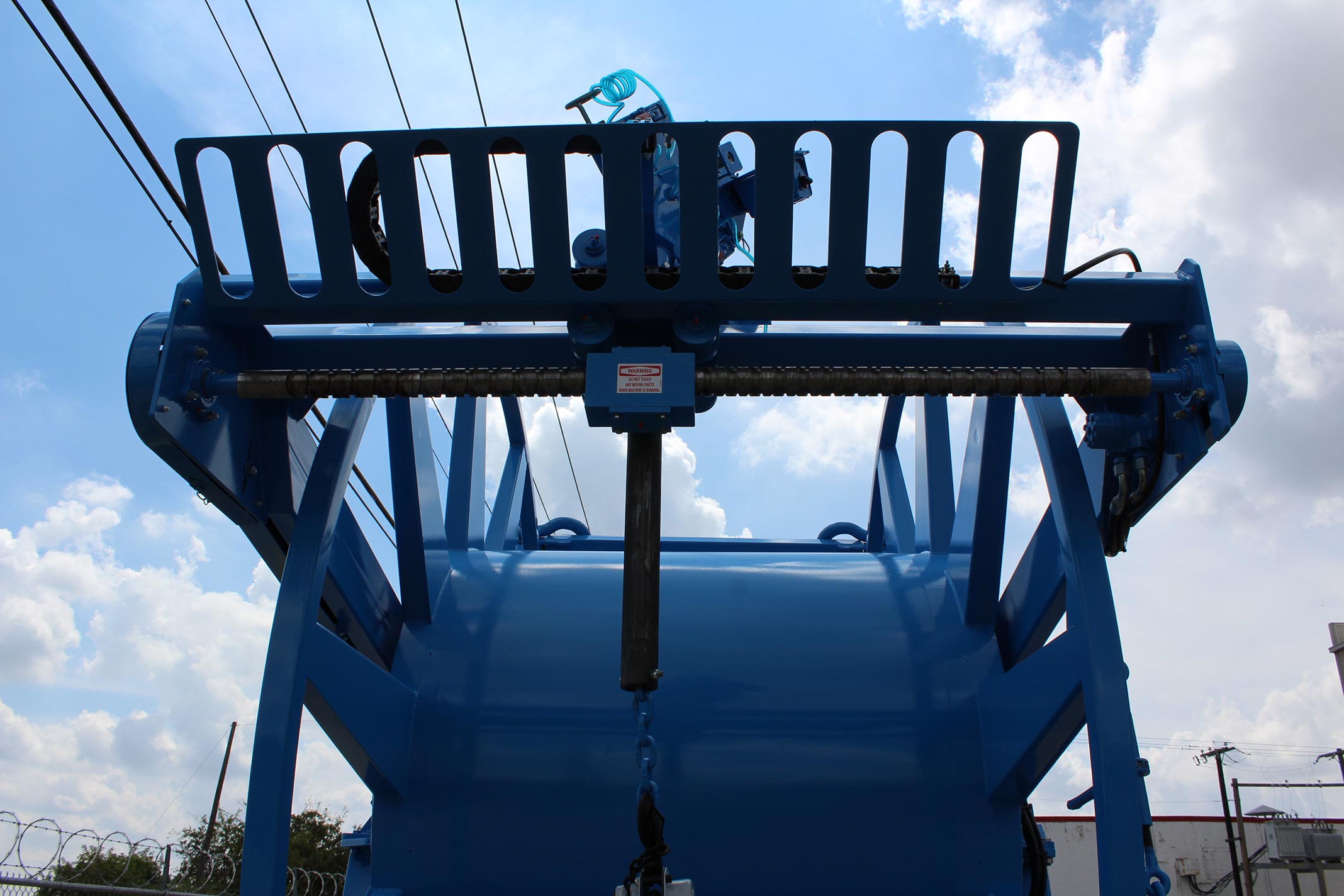

A closeup view of the 24K Coiled Tubing Reel

Coiled Tubing Work Reels

Customized and fit-for-purpose to ensure maximum reliability, safety, and efficiency for all your coiled tubing operations.

  • Description Description
  • Resources Resources
Description

Hydra Rig™ coiled tubing work reels come in skid- or trailer-mounted designs. Available in various sizes and multiple drive configurations, each coiled tubing reel work reel is customized and fit-for-purpose to ensure maximum reliability, safety, and efficiency for all your coiled tubing operations.

24K Coiled Tubing Reel

Our 24K tubing reel is a medium-capacity tubing reel that is ideally suited for all grades of 2-in. tubing and capable of running some 2⅜-in. tubing. The maximum rated operational payload capacity is 110,000 lb.

Our high-strength double-tapered spoke design is 25% stronger and 15% stiffer than conventional tubing reels, decreasing flange flex. As a result, the 24K tubing reel is a stronger and more capable reel without increasing weight.

Powering the 24K tubing reel is a patent-pending and purpose-built direct-drive gearbox rated for a maximum drive torque of 24,000 ft-lb and a maximum speed of 13 rpm.

Realize wireline options that previously required a chain drive with the performance and reliability of a direct drive. The patent-pending hybrid planetary offsets the motor and allows for a collector port for wireline on the drive side. The port optionally allows for remote hydraulic operation of the spool safety valve.

Keeping operator efficiency in mind, we incorporated the levelwind quick-change ratio cartridges on the drop-in-drum (DID) tubing reels. The levelwind quick-change ratio cartridges allow easy changing of the levelwind ratio timing when swapping from one pipe size to the next.

33K Coiled Tubing Reel

Our 33K tubing reel is a large-capacity tubing reel ideally suited for all grades of 2⅜-in. tubing and many grades of 2⅞-in. tubing. The maximum rated operational payload capacity is 150,000 lb.

The high-strength double-tapered spoke design is 50% stronger than conventional tubing reels, decreasing flange flex has by half. The levelwind arm is also 33% stiffer than the current design. As a result, the 33K tubing reel is a stronger and more capable reel with lasting performance.

Powering the reel is a hydraulic piston motor paired with a purpose-built direct-drive gearbox providing a maximum drive torque of 33,000 ft-lb and a maximum speed of 10 rpm.

Realize wireline options that previously required a chain drive with the performance and reliability of a direct drive. The patent-pending hybrid planetary offsets the motor and allows for a collector port for wireline on the drive side. The port optionally allows for remote hydraulic operation of the spool safety valve.

Keeping operator efficiency in mind, we incorporated the levelwind quick-change ratio cartridges on the drop-in-drum (DID) tubing reels. The levelwind quick-change ratio cartridges allow easy changing of the levelwind ratio timing when swapping from one pipe size to the next.

Dished-Head Tubing Reel

The Hydra Rig dished-head tubing reel has become an industry standard for coiled tubing work reels. Available in various sizes and multiple drive configurations, each dished-head tubing reel is customized and fit-for-purpose to ensure maximum reliability, safety, and efficiency for all your coiled tubing operations.

Drop-in-Drum

Ideal for offshore platforms with crane limitations and maximized tubing payloads, the Hydra Rig drop-in-drum (DID) coiled tubing reel design separates the tubing drum with its tubing payload from the crash frame/drive system to ensure that tubing length and wall thickness can be maximized for your project’s demands.

This method ensures that on-site demands are addressed quickly to reduce downtime by often supplying two spools—one for standby with an additional or different-sized tubing string preloaded. Each spool comes complete with a storage base.

DID systems are available in various sizes and can be powered with either a direct-drive planetary motor or a chain drive arrangement. The DID quick-change ratio cartridges allow for easy changing of the levelwind ratio timing when swapping from one pipe size to the next.

50K Coiled Tubing Reel

Coming soon! Reach out to your NOV sales representative or email [email protected] to learn more.

Resources
  • Hydra Rig 24K Tubing Reel Flyer
  • Hydra Rig 33K Tubing Reel Flyer
A 24K Coiled Tubing Reel sits on concrete
24K coiled tubing reel
Dished-Head Tubing Reel
Dished-head coiled tubing reel
A Hydra Rig 33K Coiled Tubing Reel sits on concrete
33K coiled tubing reel
A side view of a yellow Drop in Drum
Drop-in-Drum
