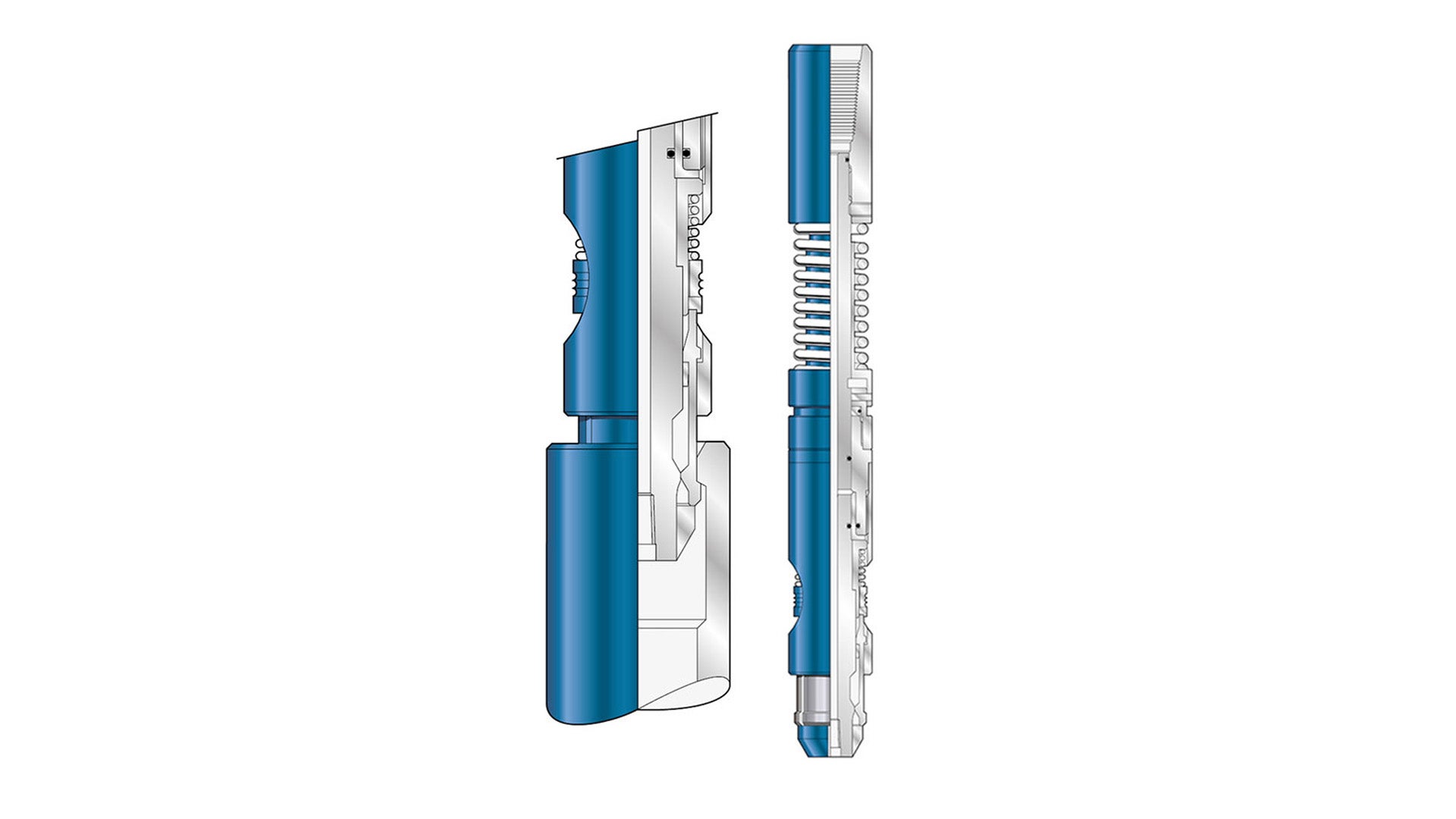

Flow-Activated GS Type Running/Pulling Tool

Retrieve downhole tools with conventional internal fish necks with our flow-activated GS-type running/pulling tool.

Description

The flow-activated GS-type running/pulling tool is designed to run and retrieve downhole tools with conventional internal fish necks. The latching mechanism is a robust dog/core design that releases positively from the internal fish neck when a hydraulic differential is applied to the tool. The tool does not require shear pins or drop balls because the differential required to activate the tool is provided by circulation through a choke insert in the core.

Flow-activated GS-type running/pulling tools are available for all standard internal fish-neck sizes. When ordering flow-activated GS-type running/pulling tools, please specify size and thread connection.

Features/Benefits

  • Full hydraulic operation
  • Capable of multiple latch and release operations
  • Proven dog/core design
  • Available to catch internal fish necks from 2 to 7 in.
  • Safety shear function
