Flow-Activated Heavy-Duty Running/Pulling Tool

Run or retrieve downhole tools with full 360° engagement of conventional external fishing necks with our flow-activated heavy-duty running/pulling tool.

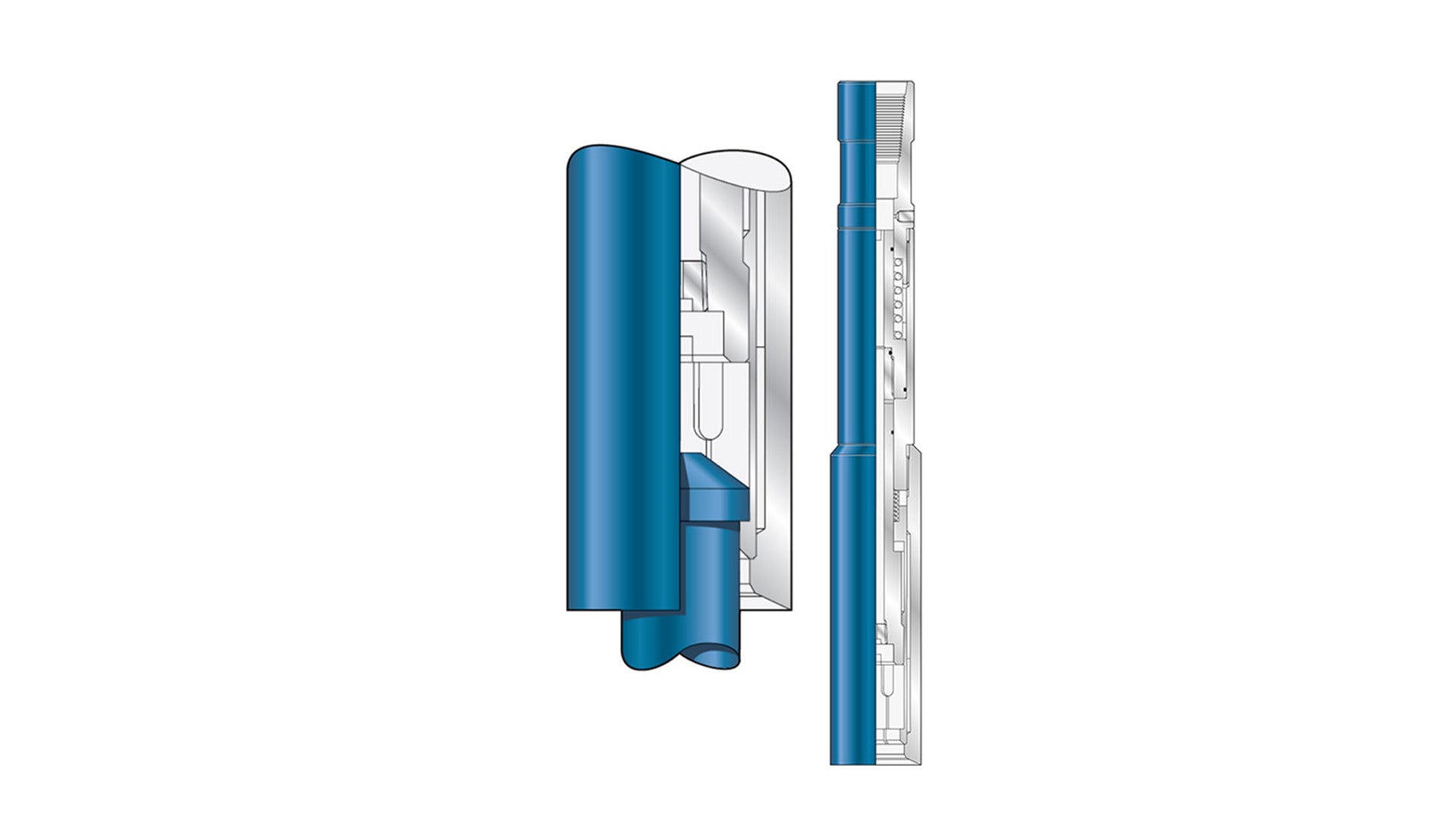

Render of Flow Activated Heavy Duty Running Pulling Tool
  • Description Description
  • Resources Resources
Description

The flow-activated heavy-duty running/pulling tool is a collet-type running/pulling tool designed to run or retrieve downhole tools with conventional external fishing necks.

The running/pulling tool design is extremely robust in construction and allows a full 360° engagement of the fishing neck to be latched.

The tool is fully hydraulically activated and therefore does not require the use of shear pins or drop balls to operate; this is achieved by circulating through a choke in the core of the tool.

Hydraulic heavy-duty running/pulling tools are available for all sizes of standard external fish necks. Adaptor kits are available to increase a standard tool's catch size. When ordering flow-activated heavy-duty running/pulling tools, please specify size and thread connection.

Features/Benefits

  • Full hydraulic operation
  • Heavy-duty construction
  • Available to catch all standard external fish necks
