FlyLine Wireline Winch Unit

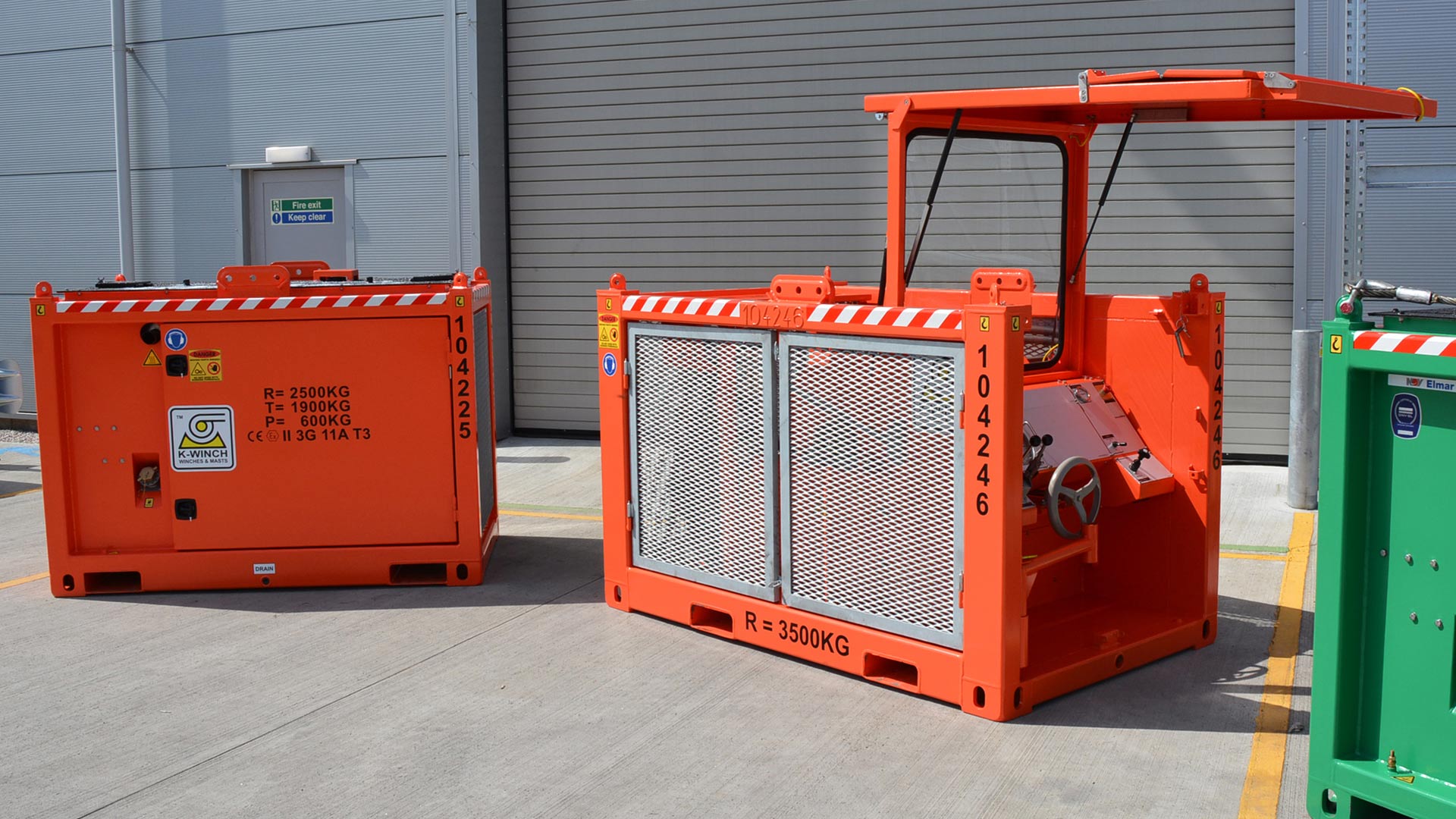

FlyLine Open Console Wireline Winch and Power Pack

Compact design is deal for operations where footprint and weight are critical

  • Description Description
  • Resources Resources

Our compact FlyLine™ dual-lift wireline winch unit is suitable for rapid deployment in onshore and offshore operations located in warm, tropical climates. The unit is configured with drums and measure heads to provide a comprehensive range of services, including slickline, fishing, and logging operations. DNV GL 2.7-1 frames and ATEX certification ensure this recognizable K-Winch product is readily accepted on any operator location. Available in single- or double-drum configurations and for wire sizes from 0.092 to ¼ in. (including 0.160-in. slickline), this wireline winch unit model comes standard with 72-HP or optional 109-HP heavy-duty power pack.

The FlyLine features the tried and tested ASEP™ closed-loop hydraulic system, MP16 or MP20 measure head, CombiGauge for mechanical depth and tension, the option to fit a LineMinder™ system which provides read out and recording of line speed, depth, and tension with the additional protection of alarms and winch shutdown features to minimize wire damage or operator error.


  • Fully certified winch & power pack frames to DNV GL 2.7-1 & ISO 10855 offshore containers
  • ATEX certified for Zone II operations
  • Rigsafe option available
  • Powerful water-cooled four-cylinder diesel engine delivering up to 54 kW (72 HP)
  • Optional heavy-duty 109-HP turbo diesel engine
  • Spring, air, or hydraulic power pack start options
  • Open winch control console with integral sun protection cover
  • All round protective guards for transportation


  • Compact weight and dual lift format ideal for offshore operations
  • Unique hydraulic transmission provides stable winch speed and maximum control
  • Dual drive motors provide fast and safe change over on double drum units
  • Open operator station on winch module provides high visibility over operating area
  • Reliable Elmar™ patented closed-loop hydraulic system gives trouble-free operation and low-cost maintenance
  • Power pack designed to run quietly reducing operator fatigue
  • Fitted with drainage drip tray to eliminate environment impact and spillage from well fluids and lubricants
  • ATEX certification meets European sector requirements


  • Auxiliary hydraulic mast drive system
  • Jacking wheels
  • 6kW generator for LineMinder system
  • Automation Products LineMinder Touch Screen Panels for Wireline Units Brochure
  • Elmar Product Catalog
Double Drum FlyLine Wireline Winch Unit
Double Drum
FlyLine Wireline Winch Unit Console
FlyLine Console
SIngle Drum FlyLine Wireline Winch Unit
Single Drum
