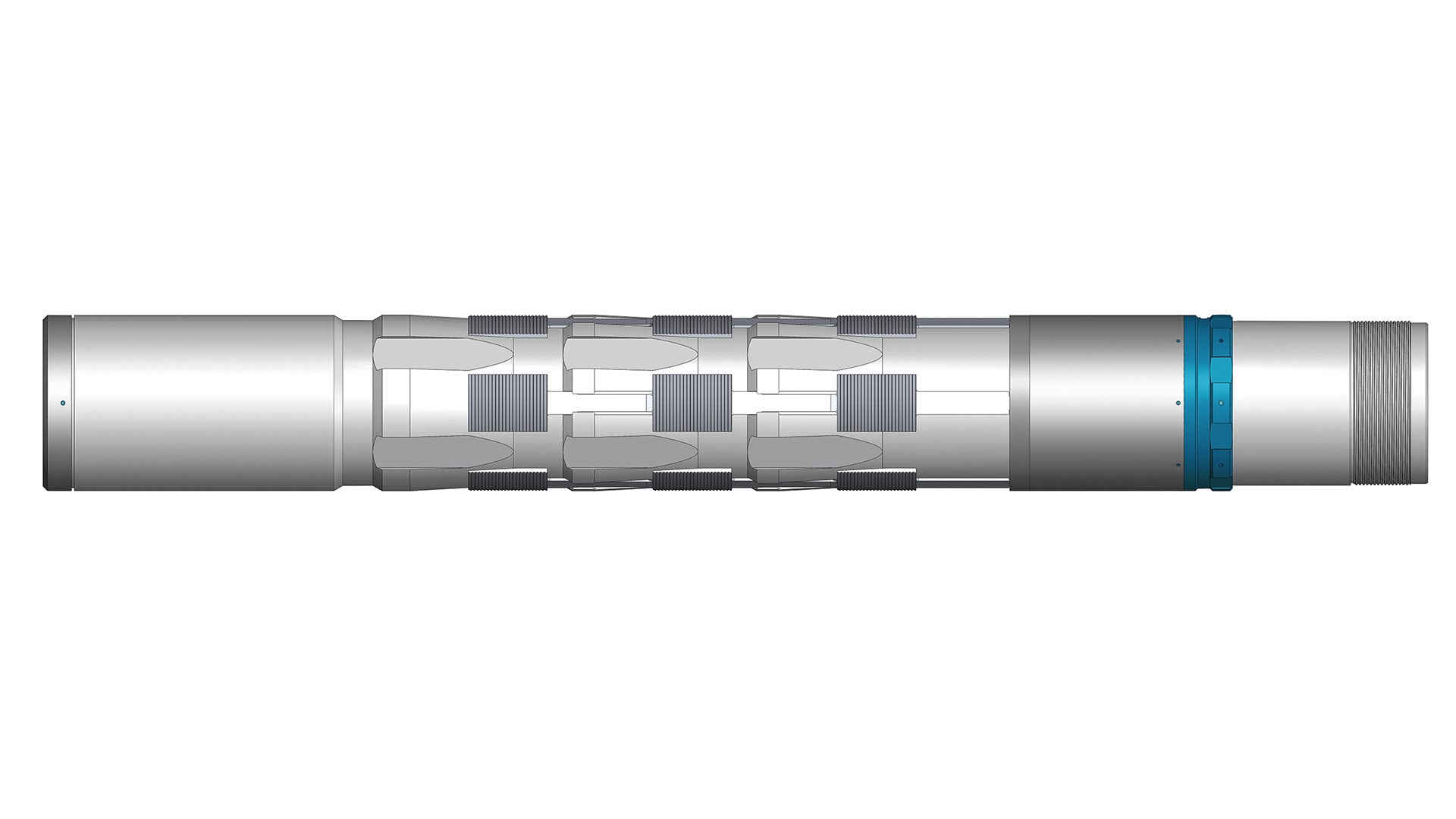

GSL Liner Hanger

Designed for tight clearance, our GSL liner hanger assists you in hanging an intermediate liner.

Have a question? Contact us.
  • Description Description
  • Resources Resources
Description

Designed for tight clearance, our GSL liner hanger assists you in hanging an intermediate liner. Its slips are recessed into a special profile at the body, ensuring trouble-free installation and uniform load distribution in the setting section. Due to the tight clearance, the GSL liner hanger is only available in a nonrotating version. The robust and sturdy body with cone is made of one piece.

SPE paper:

Features/Benefits

  • Nonweld design, one-piece body
  • Capable to hang liners of short and middle length without distortion of the cone or body
  • Large annular flow area in set condition ensures minimum pressure drop during cementing
  • Suitable for short liner in highly deviated wells
  • Nonrotating during cementing
Resources
  • GSL Liner Hanger Data Sheet
  • TK-Liner Hanger Prevents Corrosion Case Study

Related Products

GSP II Liner Hanger

Designed for deviated and horizontal holes. Available in both mechanical and hydraulic options.

VXP Liner Top Packer

Developed for high differential pressures, the VXP liner top packer is also ISO 14310/14998 V0…
