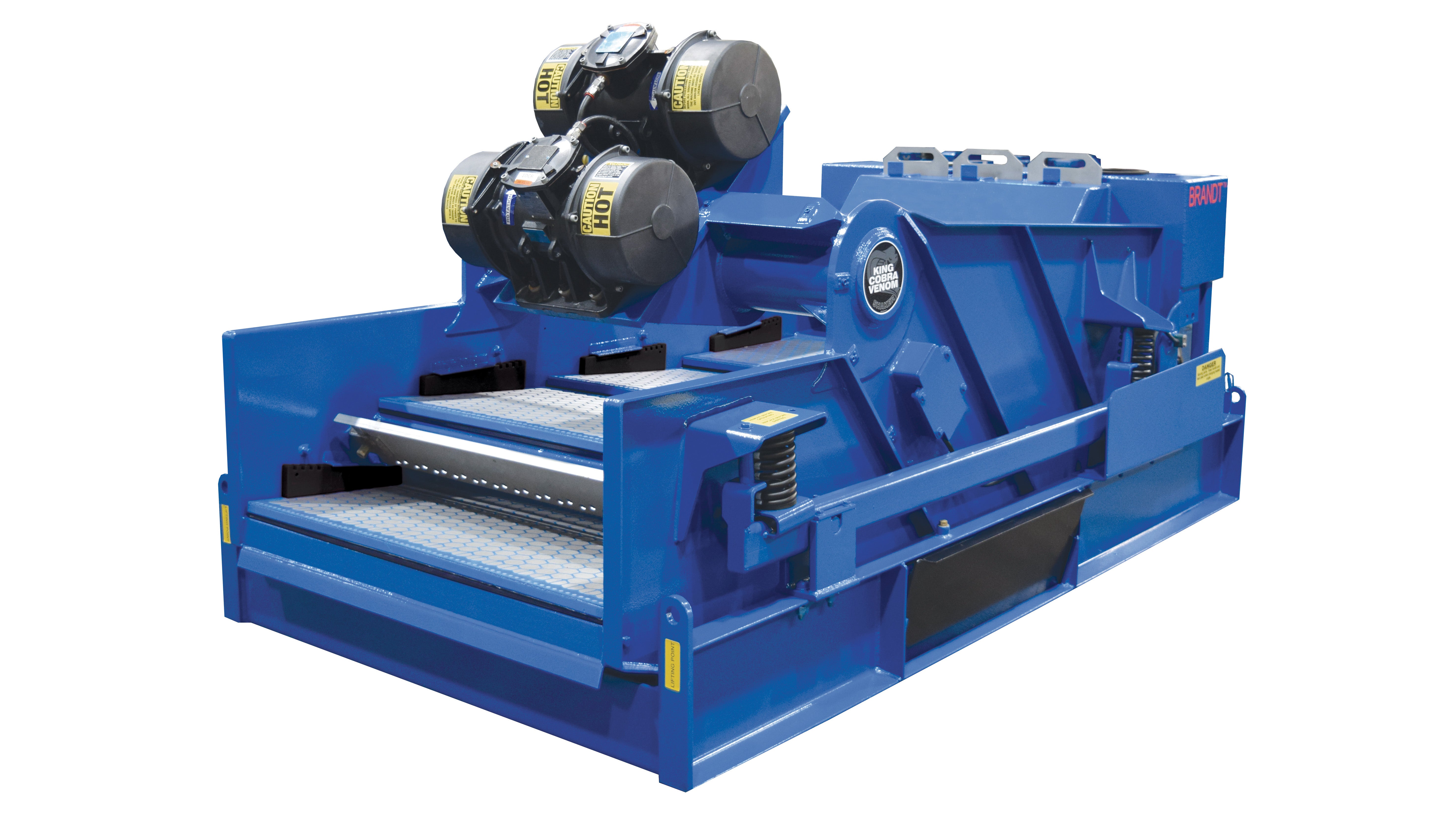

HDD KING COBRA VENOM Shale Shaker

The BRANDT™ KING COBRA HYBRID shaker is the simplest, most reliable shaker for any cleaning system

Description

The BRANDT KING COBRA HYBRID shaker is the simplest, most reliable shaker for any cleaning system.

Combining ruggedness, reliability, and high-performance options

The BRANDT™ KING COBRA™ HYBRID shaker combines the reliable standard skid, backtank, and screen-angle adjustment features with the rugged design shaker basket. The basket’s design reduces the liquid pool depth to provide better conveyance of drilled solids across the screens, which means you get cleaner fluid back to your system with our sacrificing capacity. Configured for 0° at the feed panel and +5° on the remaining panels, this design minimizes basket angle elevation and achieves maximum separation and increased screen life by decreasing the fluid pool volume weight over the screens.

We’ve also equipped the KING COBRA HYBRID with a variety of high-performance options* like our patented Constant-G Control (CGC™) for increased process capacity and dual motion for more precise vibration control.

With the rugged reliability of the KING COBRA and the fine-tuned performance options of the KING COBRA VENOM, the KING COBRA HYBRID has the flexibility to meet your projects changing needs.

*All high-performance options can be ordered initially or installed in the field regardless of original factory configuration.

Features/Benefits

  • Minimal replacement parts
    • Small parts inventory
  • Linear motion (available on all configurations)
    • Rapidly separates and discharges solids
  • G-force
    • Fixed nominal
      • 6.1 G’s – 25 hp
      • 8.0 G’s – 3.5 hp
    • Constant-G Control – patented worldwide:
      • Automatically sustained settings as loading increases or decreases
      • 6.3 G optimal – 2.5-hp motors
      • 7.3 to 8.3 G optimal – 3.5-hp motors
  • Patented Contour Plus deck design with incorporated drying deck; deck angles 0°, +5°, +5°, and +5°
    • Increases screen life by diminishing fluid pool volume and reduces fluid losses via a dry solids discharge
  • Venom series screens
    • Larger screening area (33.4 ft2 or 3.1 m2)
    • Cost saving with elimination of crown rubbers
    • Repairable screens
    • Improved solids conveyance and fluid throughput
  • Manual flywheel deck-angle adjustment mechanism
    • Quick and easy deck-angle adjustments
  • Epoxy and glass flake paint system
    • Longer paint life
Specifications

KING COBRA VENOM Shale Shaker Features and Specifications

Dimensions (L × W × H) 121.1 × 67.4 × 63 in. (3077 × 1711 × 1600 mm)
Weir height 34.5 in. (876 mm)
Weight 4,800 lb (2177 kg)
Basket angle Adjustable, -2 to +2°
Deck angle 0°, +5°, +5°, +5°
Screening area 33.4 ft² (3.1 m²)
Screen type (qty 4) Pretension, repairable
Motor type (qty 2) Vibra-Motors
Motor power
  • 2.5 hp (1.9 kW) each – Standard
  • 3.5 hp (2.6 kW) each – Optional
Vibration motion Linear or dual
Dual-motion configuration

Allows selection of vibration motion most suitable

• Linear – Rapidly separates and discharges solids

• Tuned elliptical – Removes large, sticky, hydrated clays and other troublesome solids

Backtank

Standard (single – shaker configuration)

Flanged (multiple – shaker configuration)

• Bolt-on sections

Material: Carbon steel or stainless steel

Adjustable basket hood Helps to contain splashing during operation and leads to a cleaner working area
