HDD Mini COBRA 2-Panel Mud Conditioner

A powerful cleaning system with a small footprint and low weir height

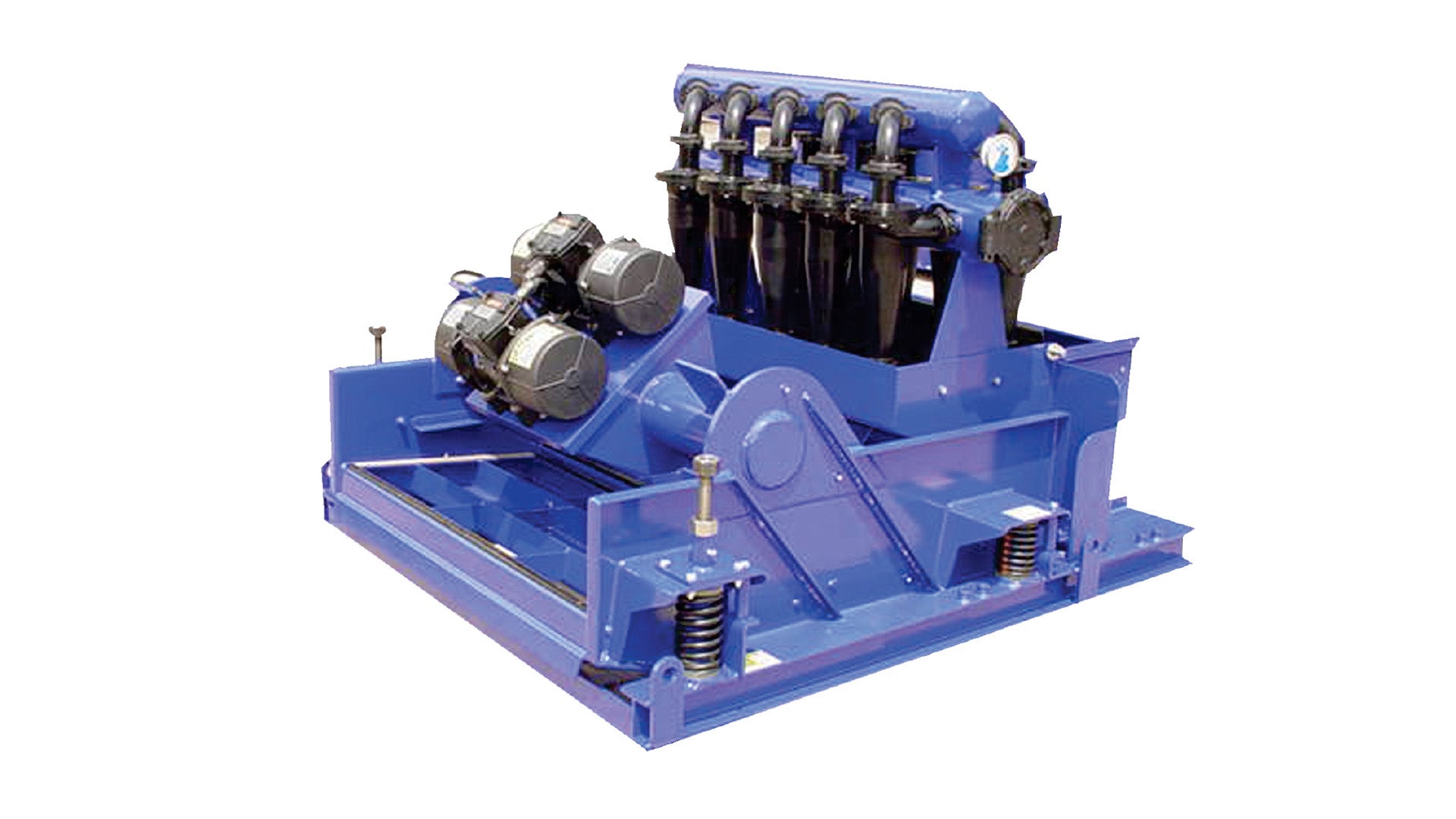

Render of Mini Cobra 2-Panel Mud Conditioner
  • Description Description
  • Ruler Specifications
Description

Fortifying fluid cleaning with a small footprint and low weir height

The low weir height of 15 in. (381 mm) enables the Mini COBRA™ 2P Fluid Cleaner to easily fit tank systems where space may be limited or flowline slope is critical. As the name infers, the Mini COBRA 2P fluid cleaner is a two-panel shaker that has many compatible parts with other KING COBRA™ shakers.

Multiple units can be supplied on a single skid and feature a common feed distribution to reduce installation time and costs and ensure balanced flow to each shaker. The Mini COBRA 2P Fluid Cleaner generates 6.4 G’s of efficient linear motion to rapidly remove drilled solids, saving valuable fluid and reducing waste.

The basket design sets the feed end at 0° and the discharge end at +5°. This basket angle minimizes liquid pool depths, which reduces fluid weight on screens. The basket angle is also adjustable. The flat screening surface evenly distributes fluid across the shaker. All these features maximize usable screen area.

The popular COBRA shaker family is also available as the BRANDT™ Mini COBRA 3P Fluid Cleaner.

Specifications

Mini COBRA 2-Panel Mud Conditioner Specifications

Vibration type Linear
Quantity of screens 2 screens (not included)
Deck type Flat (0°, +5°)
Basket angle Adjustable, -2 to +3°
Screen area 16.8 ft2 (1.6 m2)
G-force 6.4
Vibrator drive (2) Vibra-Motors
Length × Width × Height 76.67 × 66.20 × 39.88 in. (1947 × 1681 × 1013 mm)
Weir height 15 in. (381 mm)
Weight 2,100 lbs (953 kg)

BRANDT Fluid Cleaning Shakers

BRANDT shakers are manufactured in Conroe, Texas, and are engineered to meet the specifications demanded by the application in most cases. Shakers are just one of the many solids separation and fluid cleaning offerings that BRANDT supplies to the industrial, construction and microtunneling industry. NOV Quality Management System is ISO 9001-2000 certified.

Typically, multiple de-sander cones (12- or 10-in.) and de-silter cones (4-in.) are mounted above the screen deck of a shaker. The size of the solids (in microns) removed by these units is directly correlated to the size of the cone. The larger the cone, the larger the size of the particle removed and vice-versa. The fluid is fed first through the hydrocyclones, where it subsequently cascades down over the shaker. The remaining solids are returned to the fluid system.
