HDD SABRE Shale Shaker
The BRANDT™ SABRE shaker is the most advanced high-capacity cleaning system in the industry
-
Description
-
Specifications
The first modular shale shaker system

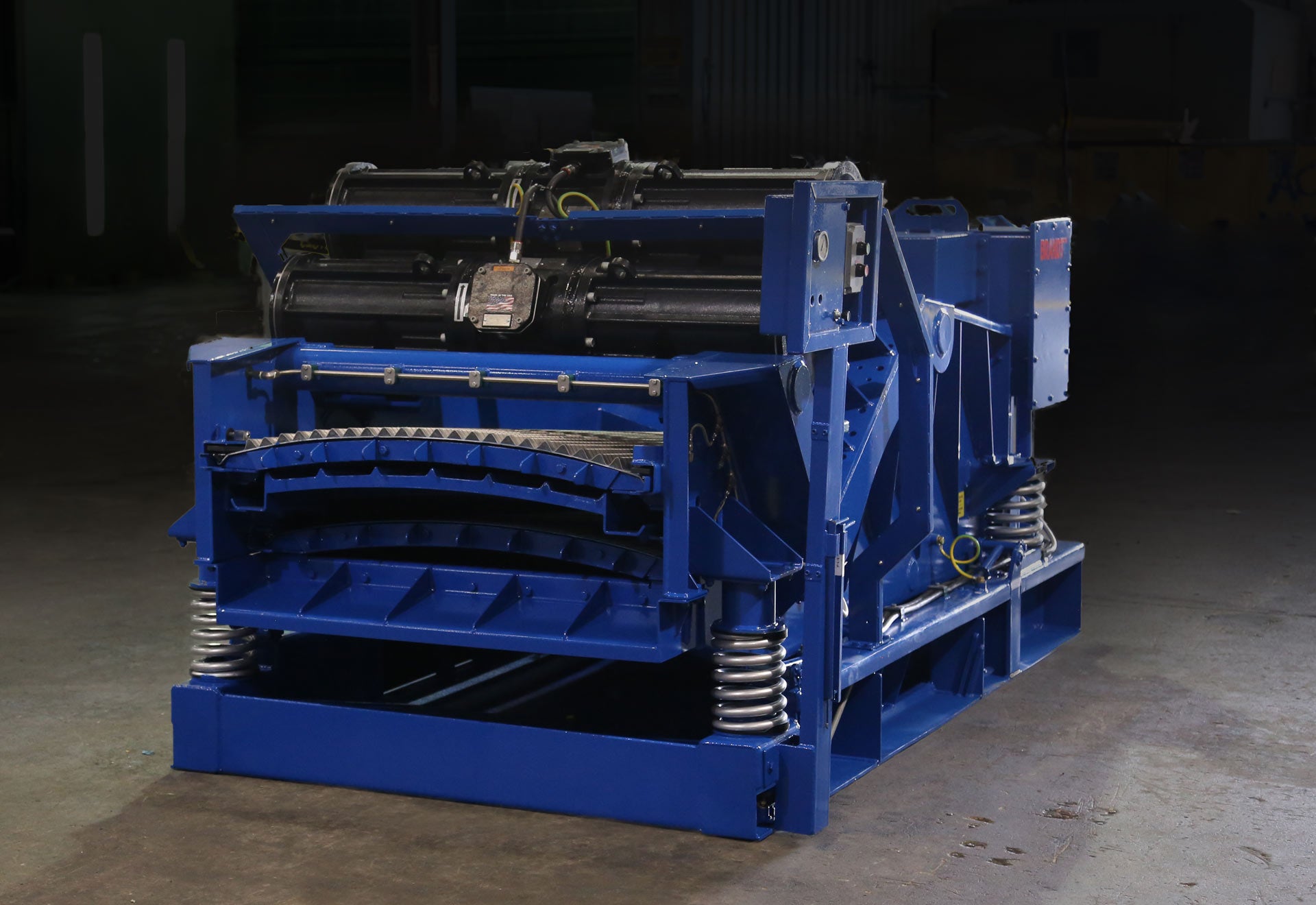

The first of its kind, SABRE™ is a modular shaker system based on a scalable platform that can easily be changed from a single-deck shaker to a double-deck shaker and from a double-deck shaker to a triple-deck shaker.
Enhanced fluid-handling capacity
Field tests have shown that the BRANDT SABRE shale shaker has one-and-a-half to two times the fluid-handling capacity of existing high-performance shakers. This performance advantage enables SABRE to better control low-gravity solids (LGS) throughout the entire mud cleaning process, thereby reducing dilution and increased fluid volumes and cost and associated logistics costs.
Designed with simplicity and durability
In addition to improved performance, ease of use and durability were principal factors in the design of the SABRE shaker. SABRE shale shaker screens are super-lightweight (weighing only 14 lbs) and are repairable using our unique AX SNAPFAST™ screen repair system. In addition, the screens are secured and sealed using our industry-proven pneumoseal technology, enabling them to be quickly changed out by a single person in a matter of minutes.
SABRE Shale Shaker Basket Options
| Single deck | Double deck | Triple deck | |
| Screen | SABRE pretensioned | ||
| Screen clamping | Pneumatic [80 to 90 psi (5.5 to 6.2 bar)] | ||
| Screen angles | 6° | ||
| Angle adjustment | +6° (standard), +6° to 4 (optional) | ||
| API screen area | 17.60 ft2 (1.63 m2) | 35.20 ft2 (3.01 m2) | 52.8 ft2 (4.90 m2) |
| Total screen area | 28.28 ft2 (2.62 m2) | 56.56 ft2 (5.25 m2) | 84.84 ft2 (7.88 m2) |
| Operating modes | Single-deck screening | Dual deck-in series | Triple deck-in series |
| Power consumption | 8.0 kW maximum | ||
| Recovery option | N/A | N/A | Sized solids removal |
SABRE Shale Shaker Dry Operating Weights and Dimensions
| Single deck | Double deck | Triple deck | ||
| SABRE shaker option | Weight | 4,762 lb (2160 kg) | 5,584 lb (2533 kg) | 6,406 lb (2906 kg) |
| Length | 120.8 in. (3068 mm) | 120.8 in. (3068 mm) | 123.8 in. (3145 mm) | |
| Width | 75.9 in. (1928 mm) | 120.8 in. (3068 mm) | 75.9 in. (1928 mm) | |
| Height | 61.5 in. (1562 mm) | 61.5 in. (1562 mm) | 61.5 in. (1562 mm) | |
| Weir height | 38.6 in. (980 mm) | 38.6 in. (980 mm) | 44 in. (1118 mm) | |
| SABRE retrofit option (less skid) | Weight | 3,395 lb (1540 kg) | 3,866 lb (1754 kg) | 4,337 lb (1967 kg) |
| Length | 103.5 in. (2629 mm) | 103.5 in. (2629 mm) | 106.5 in. (2705 mm) | |
| Width | 75.9 in. (1928 mm) | 75.9 in. (1928 mm) | 75.9 in. (1928 mm) | |
| Height | 50.8 in. (1290 mm) | 50.8 in. (1290 mm) | 50.8 in. (1290 mm) |
