Hercules HP ROTA BOP

The rams of the Hercules HP ROTA blowout preventer (BOP) offset to accommodate for long-stroke pumping units.

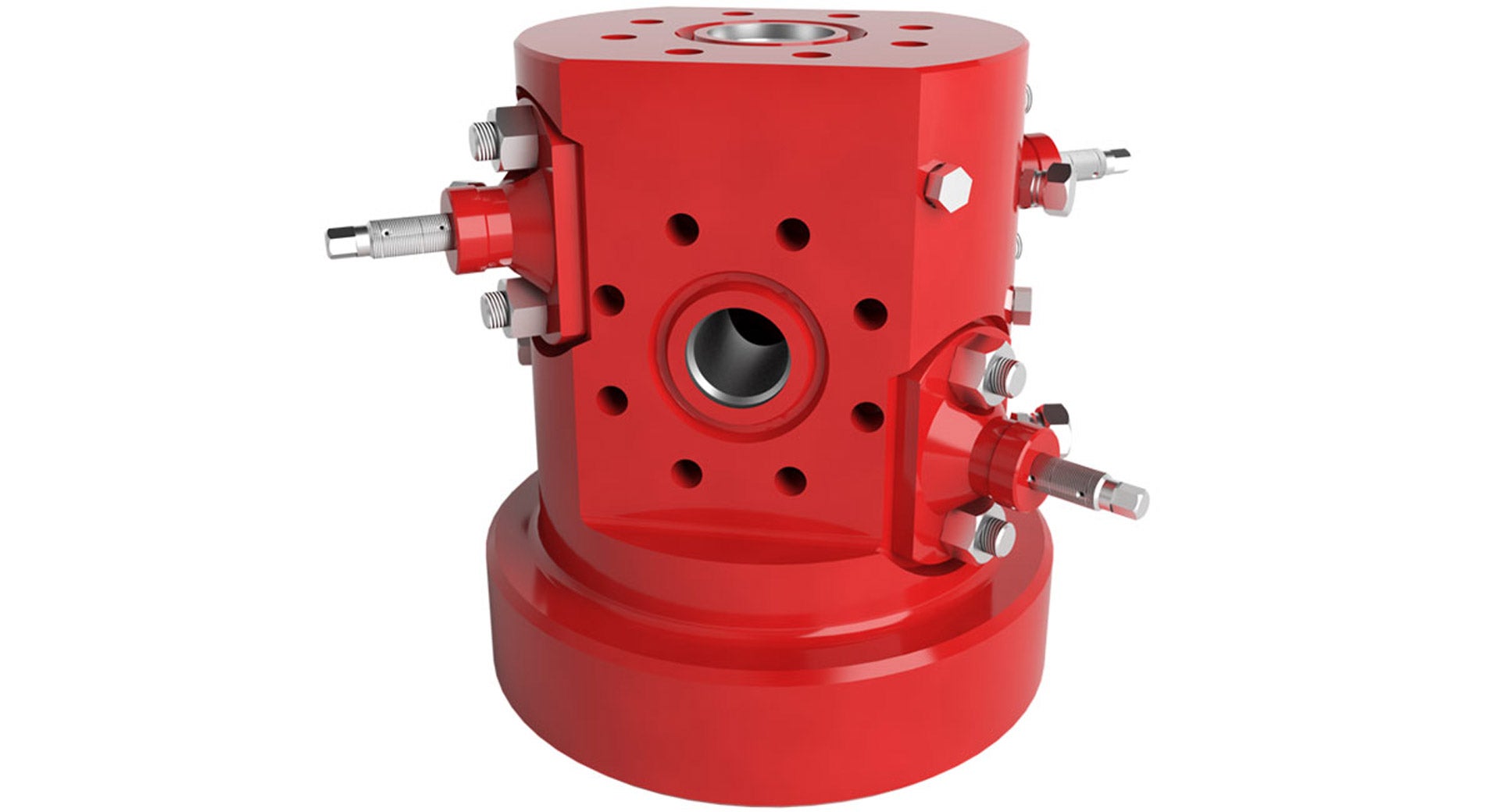

Render of Hercules  HP Rota BOP
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Replace ram blocks without the nuisance of having to move your long stroke unit. The Hercules™ HP ROTA BOP makes stuffing box servicing easy, with two sets of ram blocks that can independently seal against the polished rod when stationary.

  • Provides two sets of ram blocks that can independently seal against the polished rod when it is stationary so that the stuffing box can be serviced
  • Provides a method of shutting in the well for testing, servicing, or potential emergencies
  • Rams can be tested from either direction
  • All steel conforms to NACE standards for sour service
Specifications

Hercules HP ROTA BOP Specifications

Top connection R27 stud
Bottom connection R27 flange
Side outlet R24 stud
Pressure rating 5,000 psi
