Hercules HP Single-Pin Ram BOP

Our Single-Pin Ram blowout preventer (BOP) offers a high-pressure solution for your offset fracking.

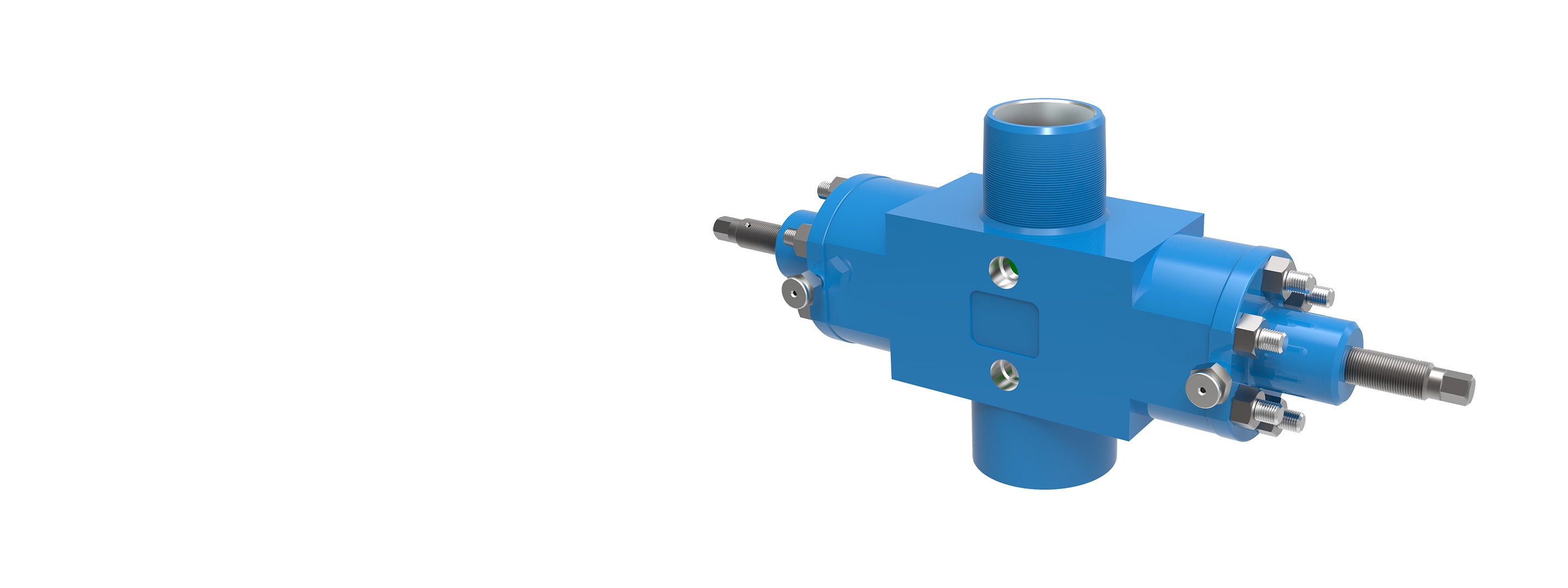

Render of Hercules HP Single Pin Ram BOP
Have a question? Contact us.
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Upgrade your existing low-pressure BOP to 5,000-psi frac protection.

  • Ram block is greaseable while in service
  • Only requires 100 ft/lb to seal; operator can use crescent wrench or ⅝-in. socket
  • All steel conforms to NACE standards for sour service
  • Test ports above and below rams
Specifications

Hercules HP Single-Pin Ram BOP Configurations

Bottom connection 2.875-in. EUE
Top connection 2.875-in. EUE
Pressure rating 5,000 psi
Bore size 2.56 in.
Option Big Bore single-pin ram
Top connection Various threaded connections pin or box
Bottom connection Various threaded connections pin or box or various flange or stud sizes
Pressure rating 5,000 psi operating (7,500 psi test)
Resources
  • Hercules HP Single-Pin Ram BOP Flyer
  • Production Service Hookup Brochure
