Register here Sign inHigh-Temperature Lock (HTL)
Our High-Temperature Lock pumps extend the application range of progressing-cavity (PC) downhole pumps in high-temperature wells that were previously thought to be out of the range of PC pumps.
-
Description
-
Specifications
-
Resources
Our High-Temperature Lock pumps extend the application range of progressing-cavity downhole pumps in high-temperature wells—up to 300 °F (150 °C)—that were previously thought to be out of the range of PC pumps. As a result of our extensive research and development as well as thorough in-field application testing, these proprietary high-temperature downhole pump solutions have taken multiple approaches to achieving the advanced capability of handling increasing downhole temperature levels.
Features/Benefits
- Capable of handling downhole temperatures to 300 °F (150 °C)

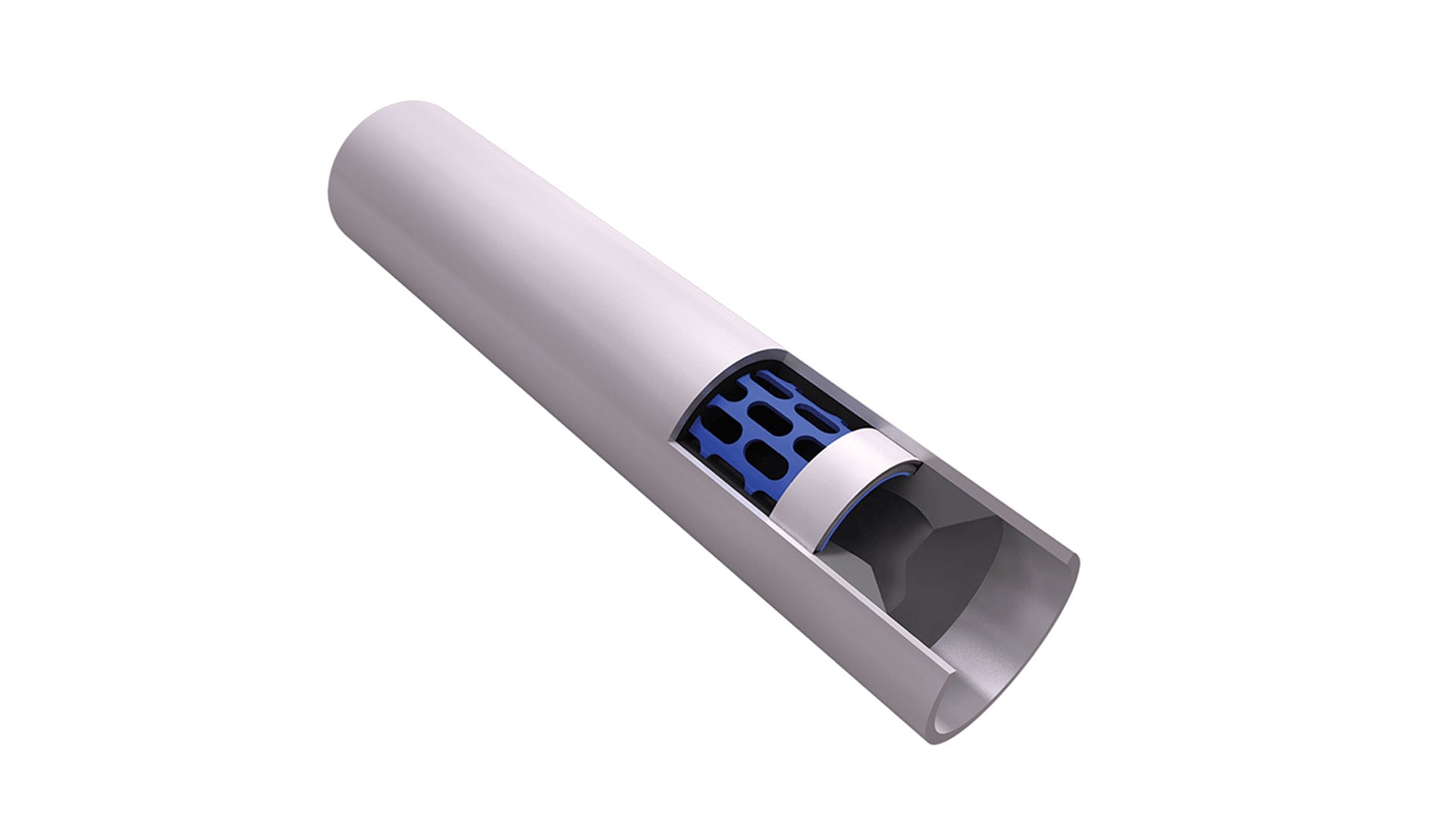

- Stator elastomer is mechanically secured to the stator tube
- Patented design does not rely on the bonding agent between the elastomer and the stator tube
- Compatible with steam injection
High-Temperature Lock (HTL) specifications
|
Metric (m3/day per 100 RPM – Lift in m) |
Imperial (B/D per 100 RPM – Lift in ft) |
|
16-1200 HTL, 16-1800 HTL, 16-2400 HTL, 16-3000 HTL, 16-3600 HTL |
094-4000 HTL, 094-6000 HTL, 094-8000 HTL, 094-10000 HTL, 094-12500 HTL |
|
32-900 HTL, 32-1800 HTL |
200-3000 HTL, 200-6000 HTL |
|
45-800 HTL, 45-1200 HTL, 45-1600 HTL |
280-2650 HTL, 280-4000 HTL, 280-5400 HTL |
|
47-750 HTL, 47-1500 HTL, 47-2250 HTL |
295-2500 HTL, 295-5000 HTL, 295-7500 HTL |
|
54-600 HTL, 54-1200 HTL, 54-1800 HTL |
340-2000 HTL, 340-4000 HTL, 340-6000 HTL |
|
74-800 HTL, 74-1000 HTL, 74-1200 HTL |
495-2650 HTL, 495-3300 HTL, 495-4000 HTL |
|
96-520 HTL, 96-1040 HTL, 96-1560 HTL |
600-1750 HTL, 600-3500 HTL, 600-5250 HTL |
|
120-400 HTL, 120-800 HTL, 120-1200 HTL |
755-1350 HTL, 755-2650 HTL, 755-4000 HTL |
|
155-450 HTL, 155-600 HTL, 155-750 HTL, 155-900 HTL |
975-1500 HTL, 975-2000 HTL, 975-2500 HTL, 975-3000 HTL |
