HMA-RG Series Agitators

BRANDT agitators serve the drilling industry with high-quality, time-proven mechanical agitation. HMA-RG horizontally skid-mounted agitators are robust, heavy-duty mechanical mixers.

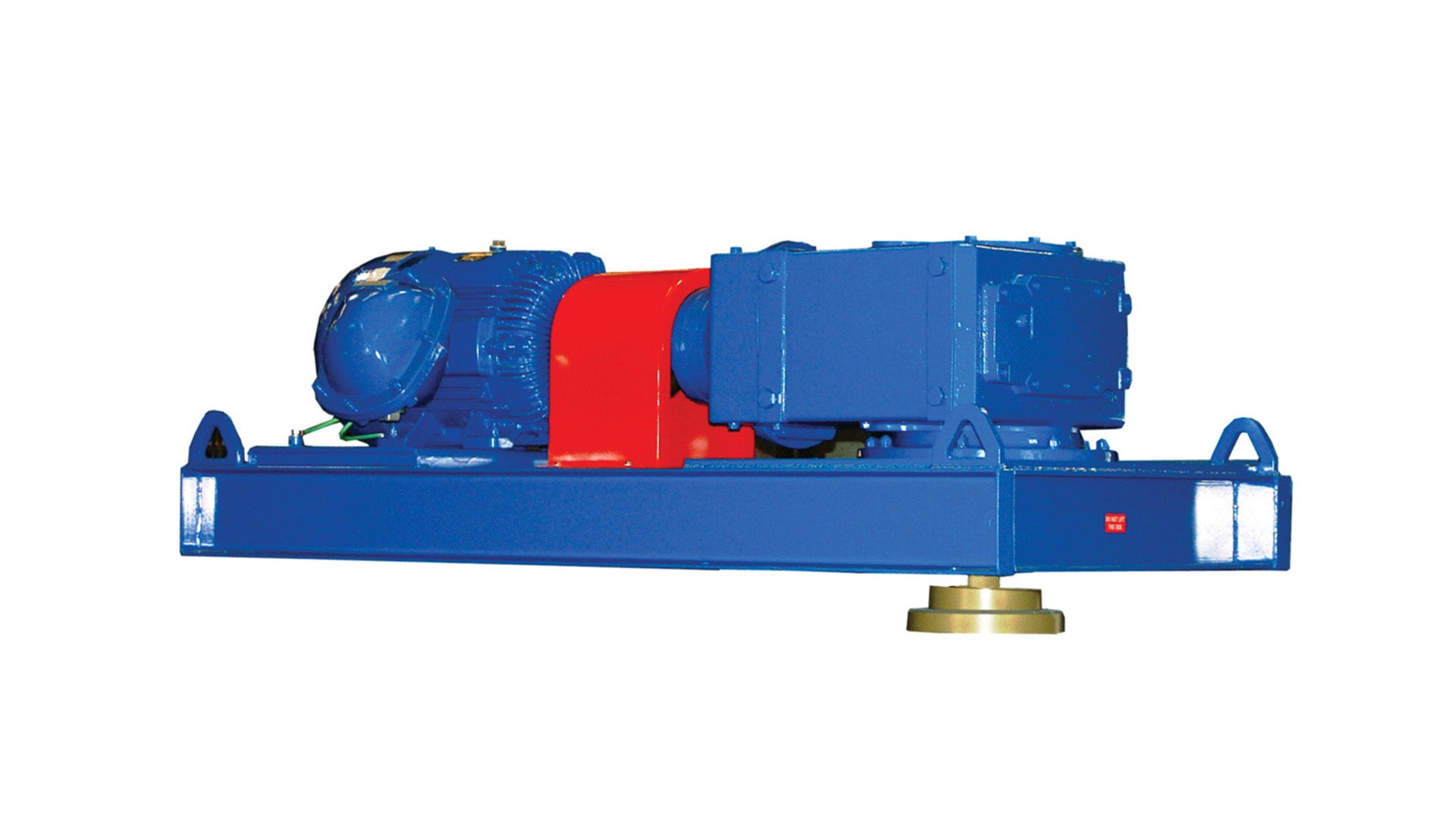

Renderof HMA RG Series Agitators
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

HMA-RG Series

These agitators feature a triple-reduction helical-bevel gear drive system that reduces the rotational speed of the motor to drive the impeller(s). BRANDT™ HMA-RG series agitators are offered with a 900 RPM or 1,200 RPM motor.

Impellers

Impellers are available with flat blades (radial flow), contour blades (axial flow), and canted blades (radial/axial flow). The impellers are sized according to tank volume and expected duty. Active mud system compartments such as solids removal sections, mud mixing sections, and slug pits—which need a higher shear force to produce immediate mixing—are another consideration in impeller sizing.

Shafts

Several types of shafts are offered. Mild steel shafts are cut to length and joined to the gearbox output shaft with a rigid coupling. Solid shafts are keyed at the bottom for impeller height adjustment. Hollow pipe shafts are available on select models for use in deep tanks. They are supplied in flanged sections and bolted together, making them ideal in cases of limited lifting height.

Contact your NOV sales representative for selection and size based on tank geometry for optimal mixing and suspension in each compartment.

Features

  • Explosion-proof motors and starters (optional)
  • Provides optimal mixing
  • Triple-reduction helical gearbox
  • 95% mechanical efficiency
  • 900 RPM and 1,200 RPM motor options

Benefits

  • Can be used in a variety of locations
  • Lowers mud cost
  • Quiet, efficient, and low operational temperature
  • Reduced horsepower requirement
  • Large impellers for use in deeper tanks
Specifications

HMA-RG Series Agitator Specifications

Model  hp/kW Length Width  Height  Weight (less the shaft and impeller)
HMA-25RG  25 hp (18.6 kW) NEMA: 85¼ in. (2165 mm) IEC: 88½ in. (2248 mm) NEMA: 39 in. (993 mm) IEC: 44 in. (1118 mm) NEMA: 32 in. (813 mm) IEC: 34¼ in. (870 mm) 2,250 lb (1020.5 kg)
HMA-30RG  30 hp (22.4 kW) NEMA: 88½ in. (2248 mm) IEC: 88½ in. (2248 mm) NEMA: 44 in. (1118 mm) IEC: 44 in. (1118 mm) NEMA: 31¾ in. (806 mm) IEC: 28½ in. (724 mm) 2,950 lb (1338.1 kg)
HMA-40RG  40 hp (30 kW) NEMA: 88½ in. (2248 mm) IEC: 88½ in. (2248 mm) NEMA: 44 in. (1118 mm) IEC: 44 in. (1118 mm) NEMA: 29 in. (735 mm) IEC: 34¼ in. (870 mm) 3,300 lb (1497 kg)
HMA-50RG  50 hp (37.3 kW) NEMA: 88½ in. (2248 mm) IEC: 88½ in. (2248 mm) NEMA: 44 in. (1118 mm) IEC: 44 in. (1118 mm) NEMA: 28½ in. (724 mm) IEC: 35¾ in. (907 mm) 3,300 lb (1497 kg)
HMA-75RG  75 hp (55.59 kW) NEMA: 90½ in. (2301 mm) IEC: 96½ in. (2451 mm) NEMA: 42½ in. (1079 mm) IEC: 44½ in. (1127 mm) NEMA: 63½ in. (1613 mm) IEC: 42½ in. (1078 mm) 5,500 lb (2495 kg)
Resources
  • BRANDT HMA-RG Series Agitators Spec Sheet (English)
  • BRANDT HMA-RG Series Agitators Spec Sheet (Arabic)
  • BRANDT HMA-RG Series Agitators Spec Sheet (French)
  • BRANDT HMA-RG Series Agitators Spec Sheet (Portuguese)
  • BRANDT HMA-RG Series Agitators Spec Sheet (Spanish)
