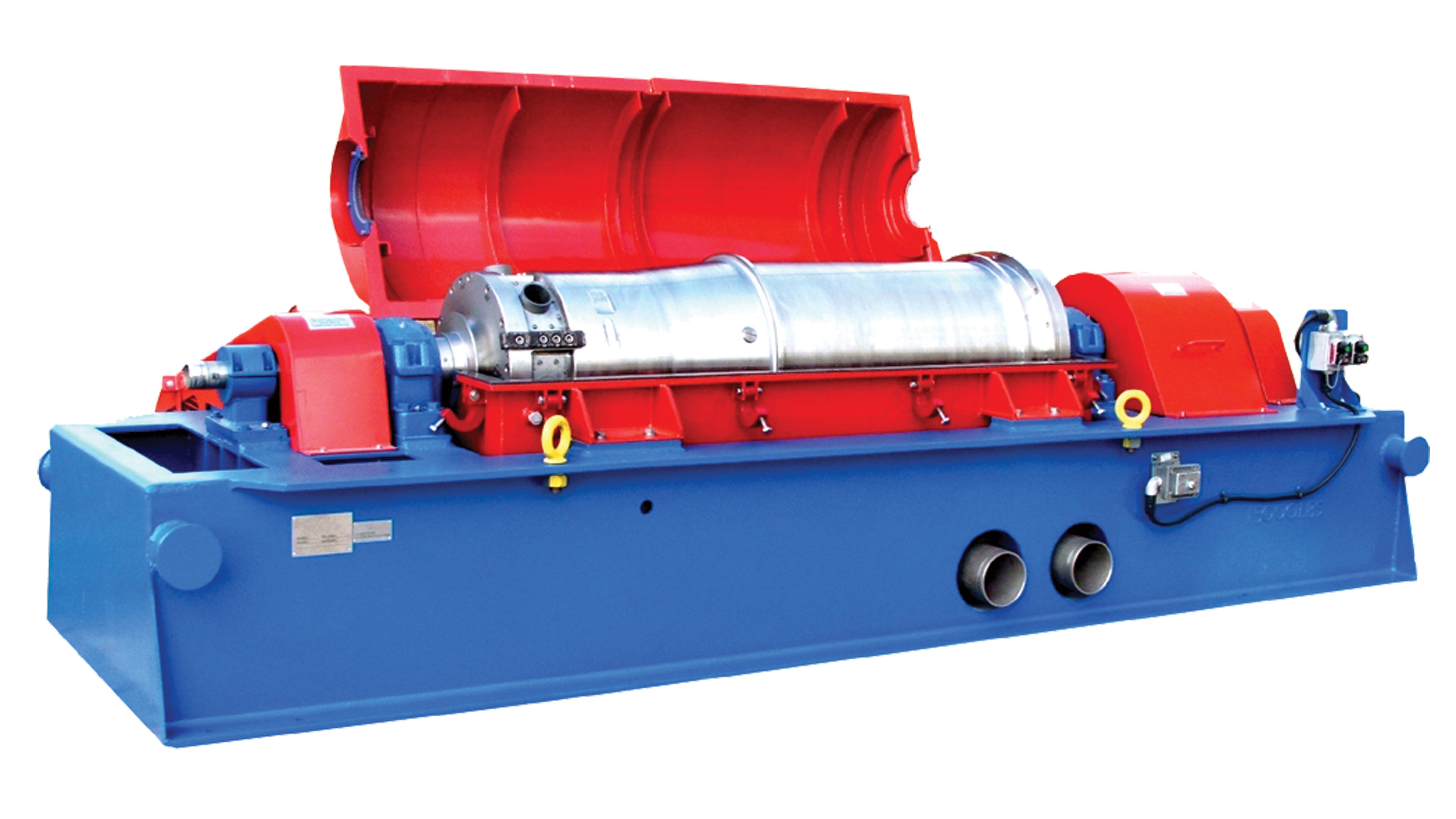

Register here Sign inHS-2172 Centrifuge
As the most innovative decanting centrifuge available, HS-2172 maximizes performance, efficiency, and operational simplicity.
-
Description
-
Specifications
-
Resources
Centrifuges are used to process unweighted and weighted water-based and oil-based drilling fluids (muds). The HS-2172L centrifuge uses high G-forces to separate fine solids from liquid.
The BRANDT™ HS-2172L centrifuge is fed from the solids end of the conveyor. Mud is introduced into the feed chamber of the HS-2172L through a feed tube and—with the aid of a concave accelerator—exits through 12 nozzles into the bowl.
The HS-2172L is equipped with variable-frequency drive (VFD) control, which provides a controlled application of motor drive power to the centrifuge components (bowl, conveyor, and feed pump). Hardware and software packages can be custom-designed to specific installation and operational requirements. With a processing capacity of up to 550 gal/min (2082 L/min), the HS-2172 series centrifuge can quickly process high volumes of mud while maintaining prescribed mud weights and separation efficiencies. This enables the HS-2172 series centrifuge to produce fine cut points at higher flow rates, making it ideal for high-flow applications and critical-conditions solids control.
Features/Benefits
- 550 gal/min (2082 L/min) maximum processing capacity (water)
- High processing capacity for use in high-flow drilling applications and conditions
- 75:1 ratio planetary gearbox
- Enables reduced motor size
- Fluid fed from solids end
- Enables a short feed tube with less vibration
- VFD control
- Permits easy adjustment of bowl, conveyor, and feed pump speeds for varying process conditions; provides torque overload protection
- Bowl and heads forged of stainless steel
- Provides corrosion resistance for long life, smooth operation, and low maintenance
- Stainless steel case
- Offers high strength and corrosion resistance
- Entire scroll fitted with tungsten carbide tiles
- Offers abrasion resistance for maximum operational life and low maintenance
- Flush connections
- Aids in cleaning excess material from inside the case
- Case gaskets
- Contains process materials within the case
- Vibration switch shut-off mechanism
- Automatically disables operation in situations of high vibration
- Stainless steel rotating assembly
- Provides corrosion resistance for long life, smooth operation, and low maintenance
- Split-case cover
- Facilitates easy access for inspection and maintenance
- Spherical-roller and cylindrical-roller main bearings
- Offers long life and low maintenance
- Sturdy I-beam skid
- Supplies a solid foundation for smooth operation and long bearing life
- Dual 6-in. (152 mm) effluent discharge pipes with optional bottom discharge
- Enables high-capacity processing
- Five epicentric orifices
- Enables easy adjustment of pond depth
HS-2172 Centrifuge General Specifications
| Length | 174 in. (4420 mm) |
| Width | 83.75 in. (2127 mm) |
| Height | 47.3 in. (1201 mm) |
| Weight “dry” | 15,500 lb (7031 kg) |
| Bowl diameter | 21 in. (533 mm) |
| Bowl length | 72 in. (1829 mm) |
| Maximum bowl speed | 3,000 RPM |
| Typical bowl speed | 2,400 RPM |
| Maximum processing capacity | 550 gal/min (2082 L/min) |
| Drive type | VFD |
| Maximum G-force | 2,684 |
Rotating assembly
| Conveyor pitch | 7 in. (178 mm) |
| Conveyor type | Single |
| Feed chamber discharge type | 12 nozzles |
| Gearbox type | Planetary |
| Gearbox ratio | 75:1 |
Power requirements
*Optional 380, 480, and 575 VAC also available
| Main drive motor | 150 hp (112 kW) |
| Back drive motor | 40 hp (30 kW) |
| Voltage | 460 VAC* |
-
