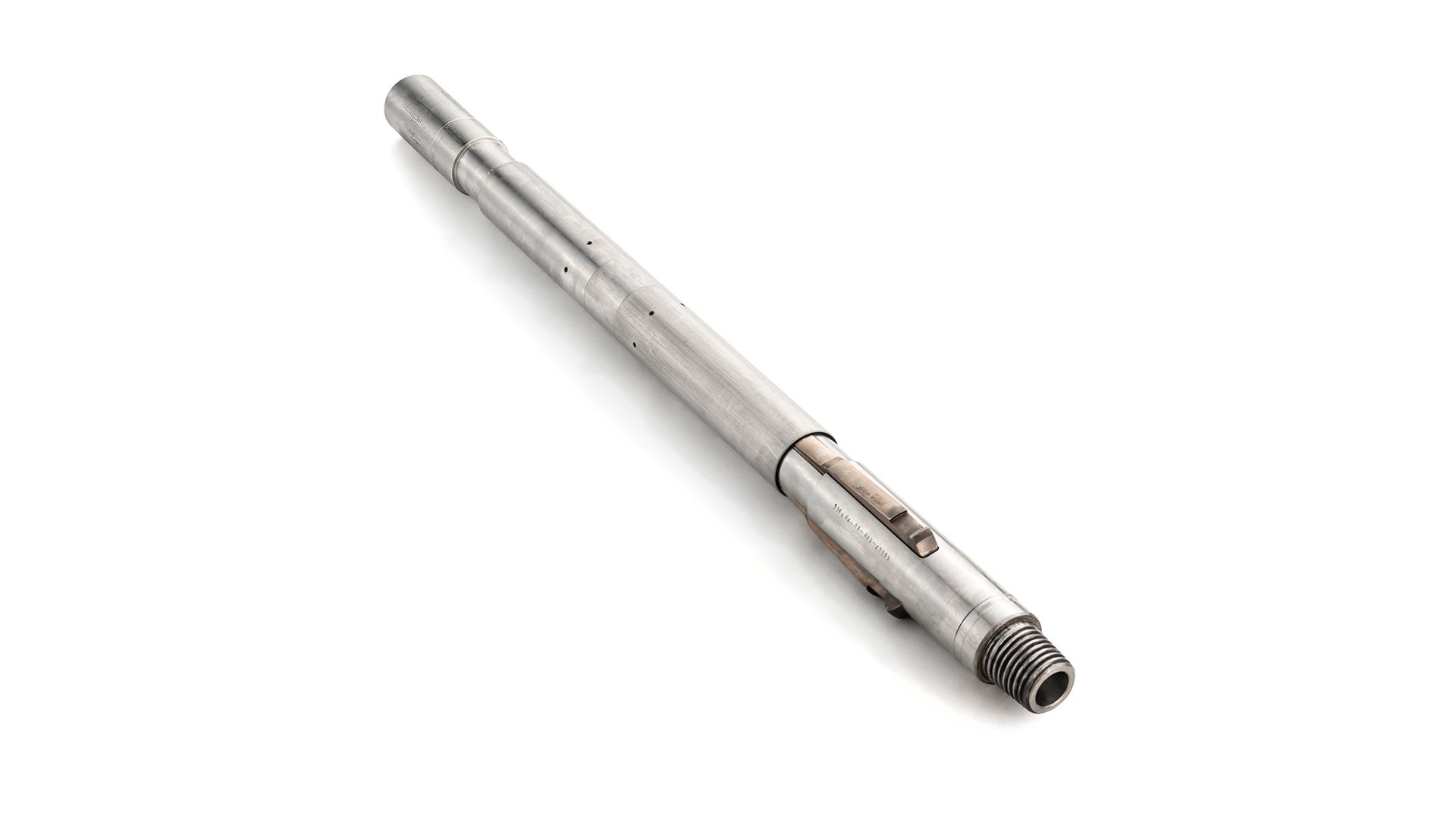

i-Shift Hydraulic Shifting Tool

The i-Shift is a reliable, selective hydraulic shifting tool used in operating sliding sleeves activated by flow at desired depths to open or close sleeves multiple times during the same run.

Have a question? Contact us.
  • Description Description
  • Resources Resources
Description

The i-Shift™ can be supplied with various keys to allow shifting of a wide range of SSDs. It can be configured as a single-down, single-up, or dual-acting manipulation tool depending on the client request. Combined with the i-Stroke™ impact hammer, we can deliver the optimal technology for all hydraulic shifting operations.

Features

  • Available in single-up, single-down, or (as tandem in) dual operation
  • Robust construction and emergency release function
  • Carbide insert on top of keys
  • Changeable nozzles
  • Wash ports under keys
  • Interchangeable keys

Benefits

  • Flexible setup for all needs
  • Ensure safe operation and retrieval from well
  • Prevents wearing of critical profile
  • Adjustable activation flow rate
  • Debris resistant
  • Suitable for various sleeve profiles

Applications

  • Coiled tubing and drill string shifting operations
Resources
  • i-Shift Data Sheet
  • Re-stimulation using multi open close frac sleeves operated by i-Shift on wireline tractor Case Study
  • Sleeve operation in well with multiple i-Valve sleeves after 7 years of oil production Case Study
  • 10-stage proppant frac with cemented i-Valve coiled tubing-actuated multistage frac system in the North Sea Case Study
  • Reliable Sleeve Technology Provides Water Shut Off and Restimulation Capabilities Case Study
