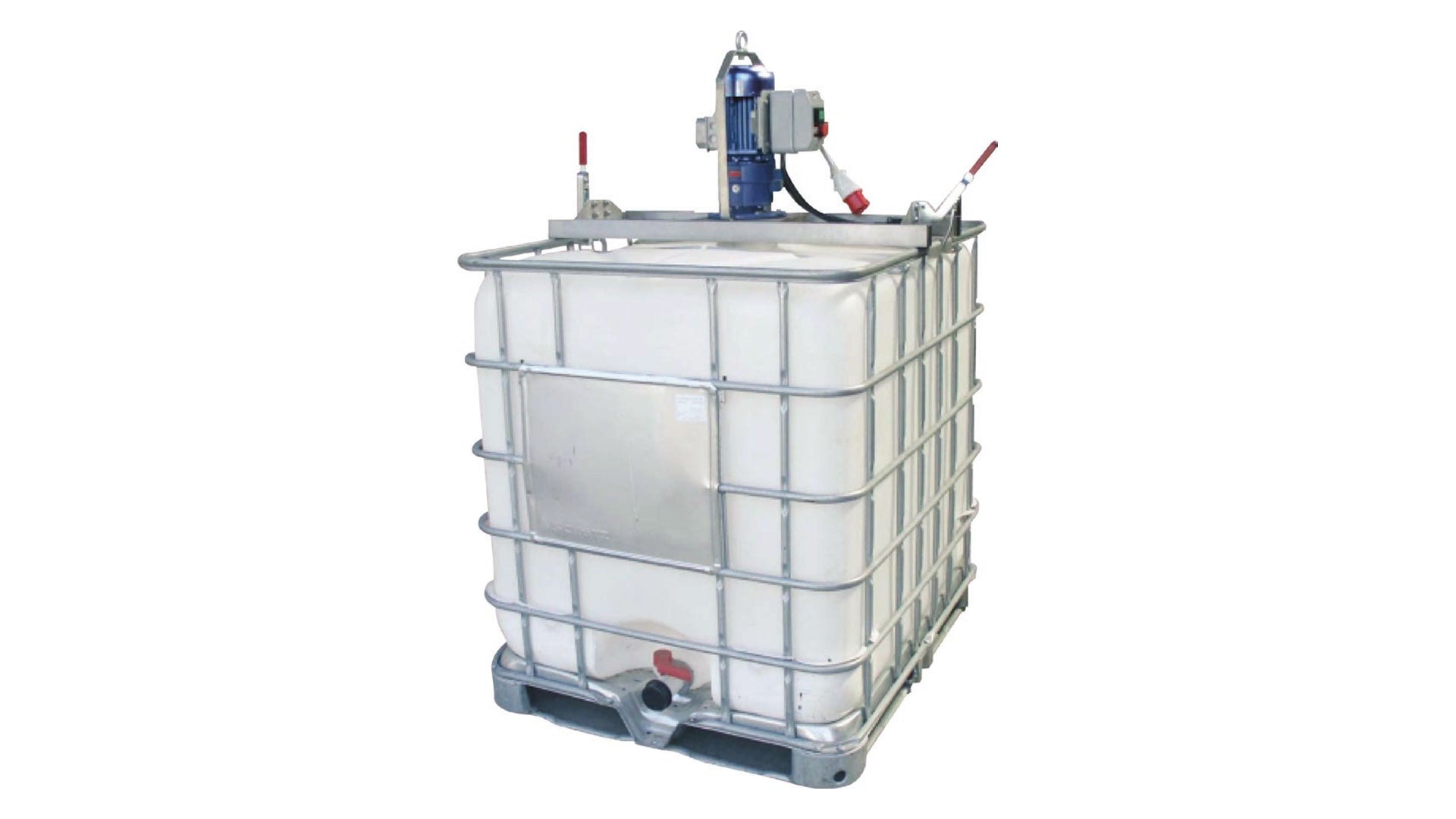

IBC Mixers

Chemineer's unique new range of industrial agitators are designed for use with plastic transportable (IBC) containers. We supply a range of models suitable for a variety of applications including - blending light viscous liquid as well as re-suspension of settled solids and dissolution of powders.

Applications

• Chemical Industries
• Dye stuffs & Pigments
• Slurries
• Paint & Varnish
• Food & Beverage
• Water treatment chemicals and flocculants
• Cosmetics Industry

Container

Designed for use on 1000 / 800 litre IBC containers with 150mm screw caps by Schutz, Sotralentz and Van Leer, suitable for most container types.

Mixer Support

Lightweight stainless steel bridge which mounts directly onto the IBC frame and is secured in place with quick action toggle clamps.

Lifting Options

As standard the mixer is supplied with an eye bolt for lifting the mixer using a hoist, bolt on modules are also available for lifting the mixer using a fork lift truck.

Motors

Electric

• 400 Volts 3ph 50Hz protection IP55, fited with Start / Stop push buttons and overload relays.
• Connection to the unit is with a 4 pin, 16 amp plug / socket, a 10 metre steel wire armoured flex extension cable is available as an optional extra.
• A safety interlock is integrated into the mixer support bridge and wired to the motor control.

Air

Are fitted with a flow control valve and muffler.

Gear Drives

Factory filled with a synthetic food quality lubricant and sealed for life.

Shaft and Impellers

The mixer shaft and impellers are manufactured in 316 stainless steel. High speed mixers are fitted with single or dual fixed impellers and low speed mixers with E-400 Folding Impellers.

Models

• HBC - high speed direct drive
• LBC - low speed gear drive
• Motors 0.37 - 1.5 kw electric or air
• Special designs are also available for introducing powders or liquids into the IBC

Enquiries / Ordering

Please mention container type and size: volume and mixing duty together with viscosity and SG when requesting a quotation or placing an order to enable our application engineers to confirm or propose a suitable IBC mixer selection.

Check List / Options

Drive Electric or Air Lifting Hoist Standard or Fork Lift Truck Extension 10 metre Steel wire armoured flex fitted with a plug and socket.
