ION+ 5DX Shaped Cutter Technology

Delivering greater durability and unparalleled performance in hard and interbedded rock drilling

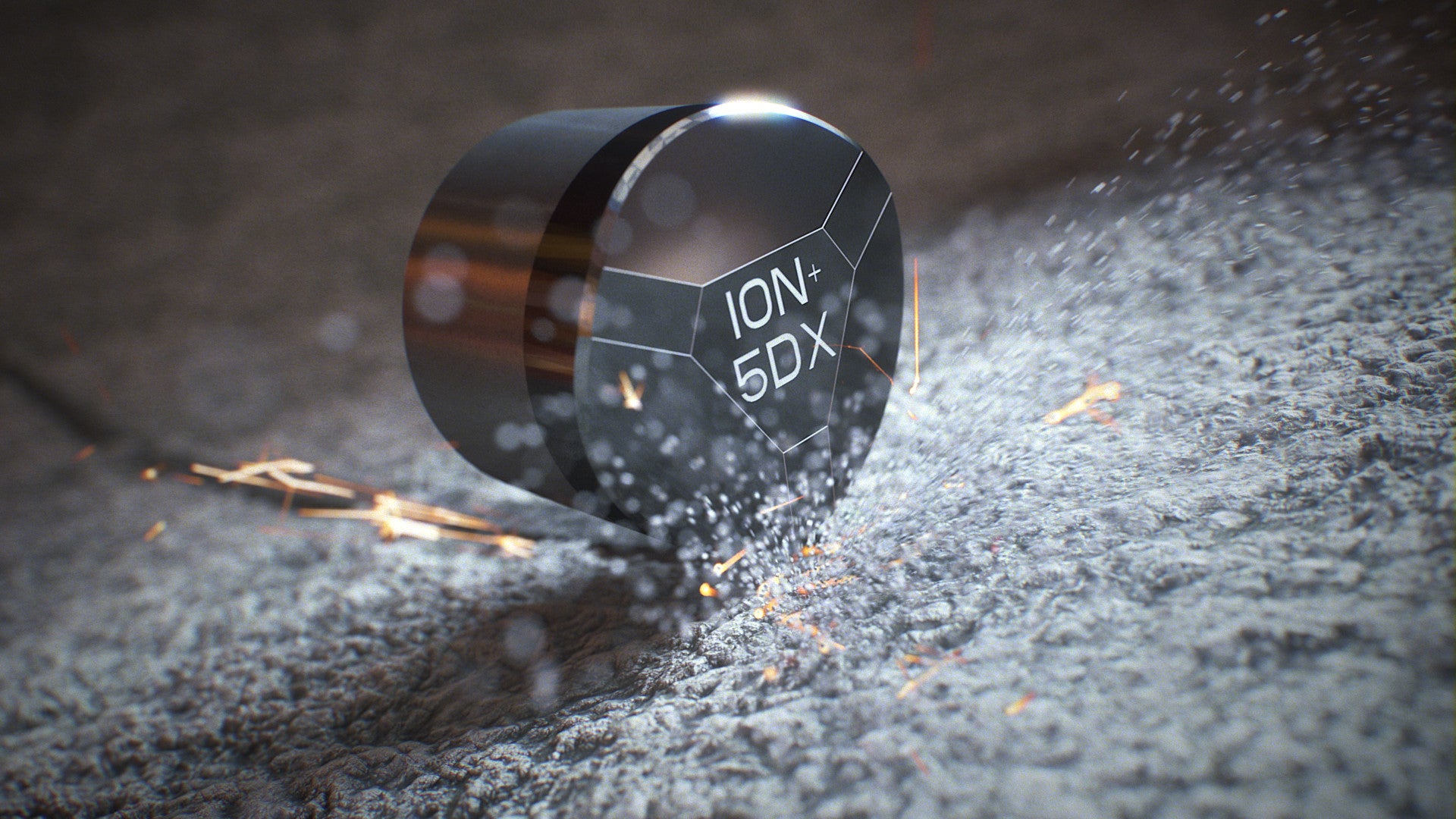

Built upon our dominant ION+™ cutter technology, our ION+ 5DX™ Polycrystalline Diamond Compact (PDC) cutter incorporates an optimized multi-faceted geometry that improves mechanical toughness by 60% over conventional cutters, resulting in remarkably effective performance when drilling challenging interbedded lithologies. The working ridge is optimized to withstand sudden impacts while imparting higher compressive loads into the formation for more efficient and effective rock failure.

The ION+ 5DX cutter provides greater durability, which increases interval lengths and eliminates unnecessary and costly bit trips. Our drill bit design engineers strategically position 5DX cutters in a patent pending cutter layout that delivers faster, instantaneous ROP while resisting impact damage in tougher applications with chert nodules or conglomerates.  The layout has been proven in the lab to reduce torque without sacrificing ROP and has translated to record-setting performances.

We continue to rapidly innovate cutter technology and translate rock failure knowledge into time and cost savings for our customers. ReedHycalog™ bits provide consistent performance in applications around the world because we design application specific solutions. The ION+ 5DX shaped cutter technology is one of the newest examples of the ReedHycalog philosophy.

  • ION+ 5DX Shaped Cutter Technology Flyer
