Low-Profile Cuttings Skips

BRANDT Low-Profile Cuttings Skips incorporate innovative features to allow for improved safety and ease of operation for any drillsite.

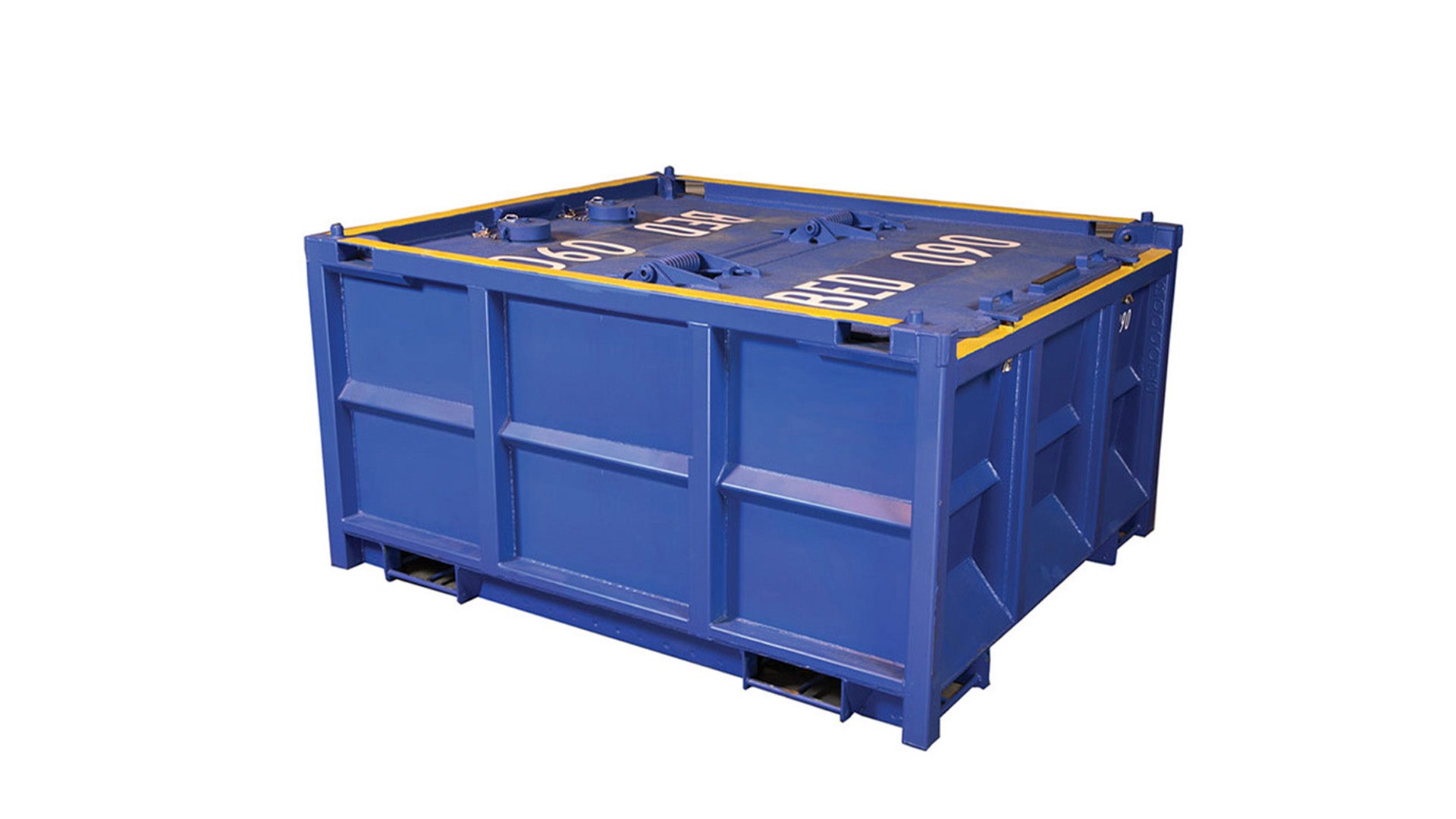

Render of low profile cuttings skips
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

FluidControl provides BRANDT™ Low-Profile Cuttings Skips that incorporate innovative features, which allow for improved safety and ease of operation. Built to DNV 2.7-1/EN12079 and certified by Lloyd’s Register, these stackable skips are able to contain a payload of 18,850 lb (8550 kg) while maintaining a height of only 47 in. (1183 mm).

A spring-assisted lid and large access door make accessing and filling the container safe and easy, while a raised seal on the lid prevents spillage.

Features/Benefits

  • Spring-assisted lid
    • Provides safe and easy access (by one person)
  • Large access door
    • Enables safe and easy filling and discharging of the container
  • Vacuum-rated design with 6-in. (152-mm) filling points
    • Allows for alternative methods of filling the container
  • Raised face seal on lid
    • Prevents spillage
  • High-capacity payload (8.5 tons)
    • Provides a large capacity with a minimized footprint
  • Stackable design
    • Allows for increased capacity without required increased deck space
  • Positive location pins
    • Facilitates safe and easy stacking of containers
  • One-piece, stainless steel locking mechanism
    • Eliminates the need for ratchet straps
  • Low height profile
    • Eliminates the dangers of working at heights
  • Open-bar forklift pockets
    • Eliminates the danger of having a potential dropped object from a conventional forklift pocket
  • Liquid drainage points
    • Prevents the buildup of rainwater on top portion of the container
Specifications

Low-Profile Cuttings Skips Specifications and Dimensions

Dimensions (L × W × H) 91 × 76 × 47 in. (2320 × 1940 × 1183 mm)
Volume 910 gal (3.44 m3)
Gross weight 22,050 lb (10 000 kg)
Tare 3,197 lb (8550 kg)
Payload 18,850 lb (8550 kg)
Design standard DNV 2.7-1/EN12079
Resources
  • BRANDT Cuttings Box Spec Sheet (English)
  • BRANDT Cuttings Box Spec Sheet (Arabic)
  • BRANDT Cuttings Box Spec Sheet (French)
  • BRANDT Cuttings Box Spec Sheet (Portuguese)
  • BRANDT Cuttings Box Spec Sheet (Spanish)
