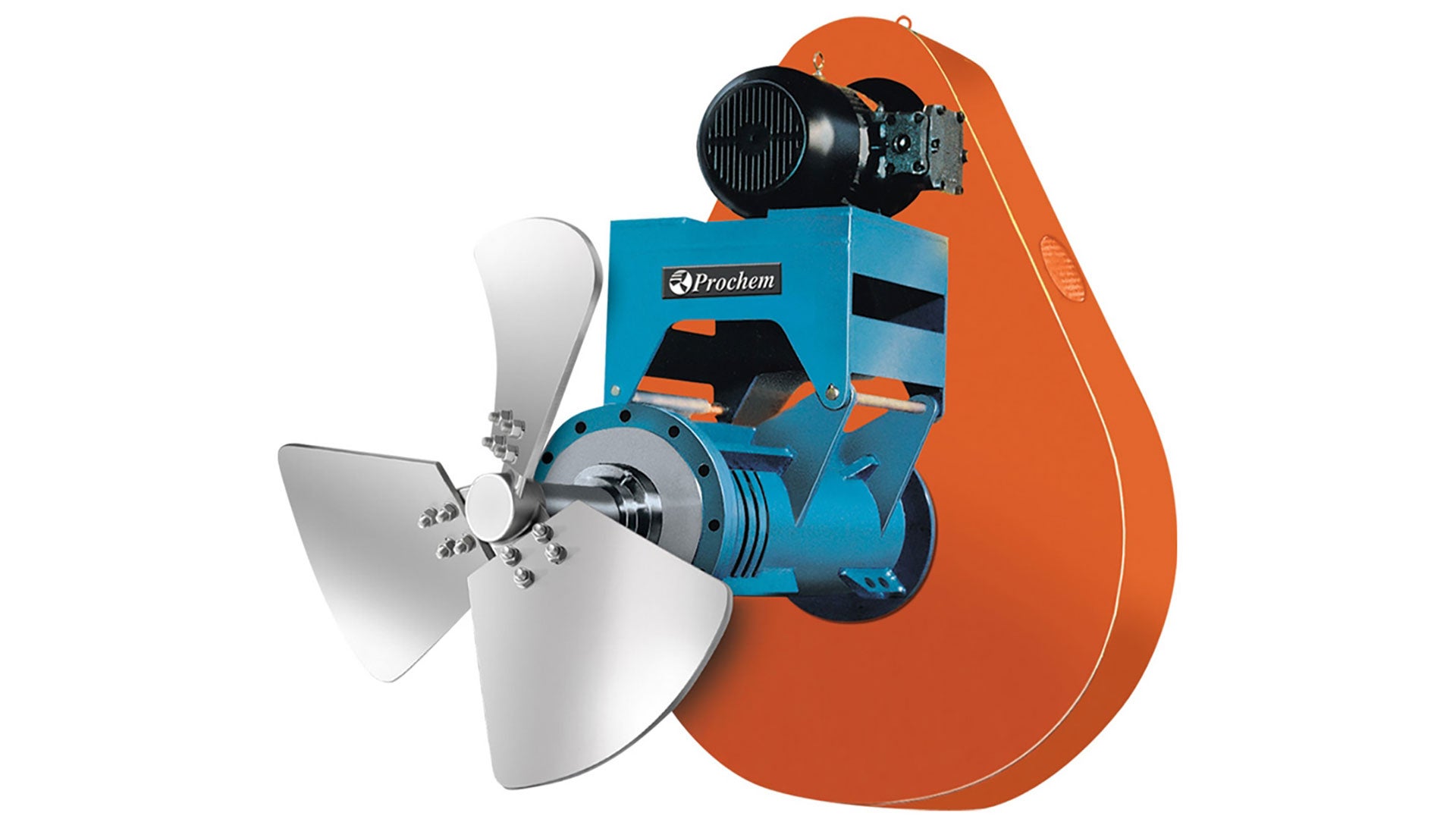

MD Series Mixer

Prochem’s MD Series Mixers are designed for side-entering applications  and feature a modular design with innovative shaft bearing cartridges, allowing for longer operating runs between maintenance periods.


For over 40 years, Prochem® MD Series Mixers have been the value choice for many side-entering applications. Integral to the MD Mixer's design is the Maxflo WSE impeller. Each MD Series Mixer maximizes the capabilities of this high-efficiency impeller to reduce operating costs and increase processing capacities.

The MD Mixer's modular design, featuring innovative shaft bearing cartridges, allows longer operating runs between maintenance periods. Routine maintenance and overhauls can be performed without draining the tank or removing the mixer.

Horsepower and Speed Ranges

Standard PB Mixers are available from 1 hp to 300 hp with speeds from 160 rpm to 480 rpm. Mixer designs with enhanced operating capacity can be designed for applications with unique requirements.


Heavy-duty, oversized shafts, the largest in the industry, are designed to handle up to 10 times the normal operating bending load at full torque. PB Mixers offer shaft sizes from 2" to 7".


PB Mixers offer a minimum B-10 bearing life of 100,000 hours and feature pillow block mounted inboard and outboard bearings mounted and aligned on an integral fabricated steel base.

Unit Construction

All MD Mixers are completely assembled at our facility with all shaft, bearings and seals accurately aligned before shipment, No on-site alignment is required.

Housings & Mounts

Housings and motor mounts are fabricated from steel and can withstand loads several times that of typical application requirements. Two coats of polyurethane, catalyzed paint over a two-part epoxy primer protect against corrosion.

Tank Shut-Off Devices

An optional secondary shut-off seal prevents fluid leaking during routine bearing/seal maintenance so the tank does not have to be drained when servicing the mixer.

Belt Drives and Guards

Ultra VX belts and sheaves provide economical power transmission with shock-absorbing capability. Belt and shaft guards are made to OSHA standards. Guards on units with 3" or larger shafts contain access holes for adjusting belt tension. Drive systems are available for 1.3, 1.5 and 2.0 belt drive service factors.
