GSP II Liner Hanger

Designed for deviated and horizontal holes. Available in both mechanical and hydraulic options.

Description

GSP II Hydraulic Set Liner Hanger

Designed for deviated and horizontal holes, the GSP II hydraulic-set liner hanger contains slips that are fully recessed into a special profile at the rotating body. This ensures trouble-free installation and uniform load distribution in the setting section. In set and non-set state, the GSP II liner hanger allows a very high bypass, ensuring a high flow rate with low pressure loss.

Hydraulic liner hanger design features

  • All hydraulic seals remain stationary during rotation of the liner
  • Improved seal stack in the hydraulic cylinder; HP/HT seals

GSP II Mechanical Liner Hanger

Designed for vertical and slightly deviated holes where rotational string manipulation is possible, the GSP II mechanical set liner hanger contains fully recessed slips, ensuring trouble-free installation and uniform load distribution in the setting section. The GSP II mechanical liner hanger utilizes a solid one-piece body that is not compromised by a hydraulic cylinder or any ports. Thus, allowing the liner hanger to have an overall enhanced performance rating that matches or exceeds the customer’s casing mechanical properties. In addition, the GSP II mechanical liner hanger allows a very high bypass area, ensuring a high flow rate with low pressure loss.

Mechanical liner hanger design features

  • Enhanced overall performance ratings due to no need for hydraulic cylinder or hydraulic seals
  • Standard right-hand mechanical set and release with left-hand option available upon request

GSP II features and benefits

  • Non-weld design, one-piece body with premium threads
  • Slips are fully recessed and pocketed into a special profile at the rotating body to prevent from premature setting during running
  • Slips and cone are designed to minimize casing stress
  • Slips are designed and tested to hang inside a large range of casing weights
  • Capable of hanging long, heavy liners with enhanced hanging capacity
  • Large annular flow area in set and unset position
  • Lock of slips prevents premature setting during running
  • Rotating/non-rotating (optional)

Materials

  • L80, T95, P110, Q125, 22Cr 125 ksi
  • Other materials on request

Thread connections

  • Standard VAM® TOP/VAM® 21 or on customer’s request
Resources
  • GSP II Liner Hanger Tool Specification

  • GSP II Mechanical Liner Hanger Tool Specification

  • Successful Germany Geothermal Liner System Installations Case Study

  • Longest and Heaviest Geothermal Liner Hanger Installation Case Study

  • Permian Liner Hanger System Success Case Study

  • Successful Offshore Caspian Sea Liner Hanger Installation Case Study

  • Geothermal Well Construction Products Brochure

  • Sustainable Greenhouses Hoogweg Case Study

GSP II Liner Hanger Slips
GSP II Slips

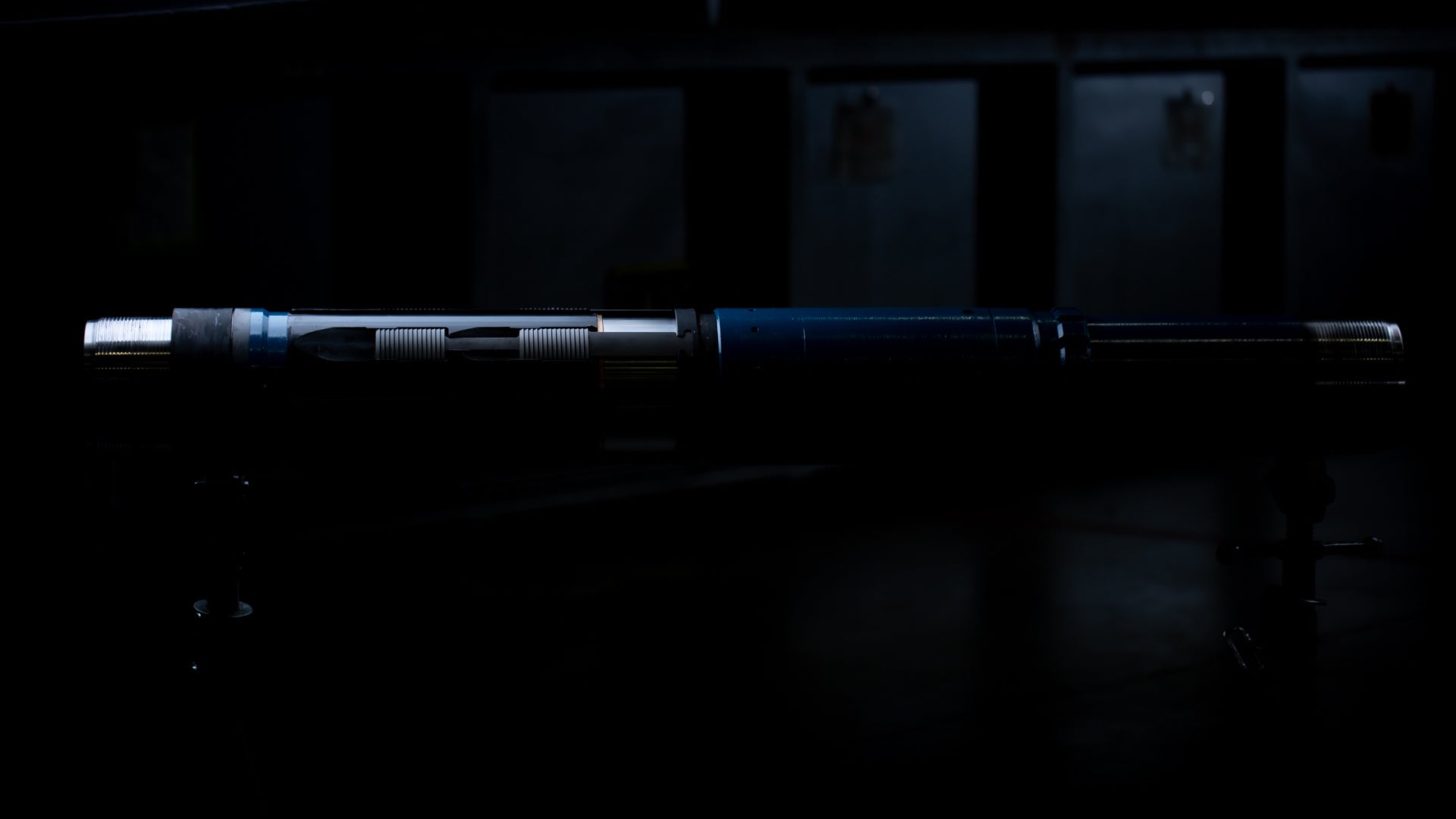

Side view of GSP II Liner Hanger
