NG-3500X-LD Self-propelled jack-up

Best-in-class solution for heavy well intervention


Field lifecycle and Drilling

The NG’s are a series of multi-purpose jack-ups. These units undertake transit and positioning offshore without tug assistance. The four legs and diagonal preloading capability allow for easy, fast, and secure jacking and pre-loading operations.

The NG-3500X-LD is intended for use in water depths of up to 80 m in a benign type of environment. This unit is equipped with a well-balanced DP2 maneuvering capability and a VFD-driven jacking system providing a controlled ramp-up / ramp-down, speed & torque control, for frequent, fast, and secure jacking operations and with built-in high redundancy.

This unit offers extended performance for the mid to deeper water depth range, bridging the gap towards the full-blown deepwater jack-ups. This unit is suitable for heavy well intervention and light drilling work.


  • Safe, solid and stable platform
  • Designed for survival
  • Transit and positioning without tug assistance
  • Easy and fast installation onsite by diagonal pre-loading
  • Large free deck space
  • Modern accommodation layout
  • VSD controlled Rack & Pinion jacking system
    • Fast , secure and controlled Jacking and Preloading
    • High number of jacking moves
    • Built-in redundancy
  • The NG series can be fully customized to owner’s specific requirements

Main characteristics

Water depth

80 m

Deck size 71.0 x 40.0 m
Variable load oper. max. 1,250 t
Cantilever reach 15.2 x 7.3 m
Derrick 500 kips

  • NG-3500X-LD Brochure

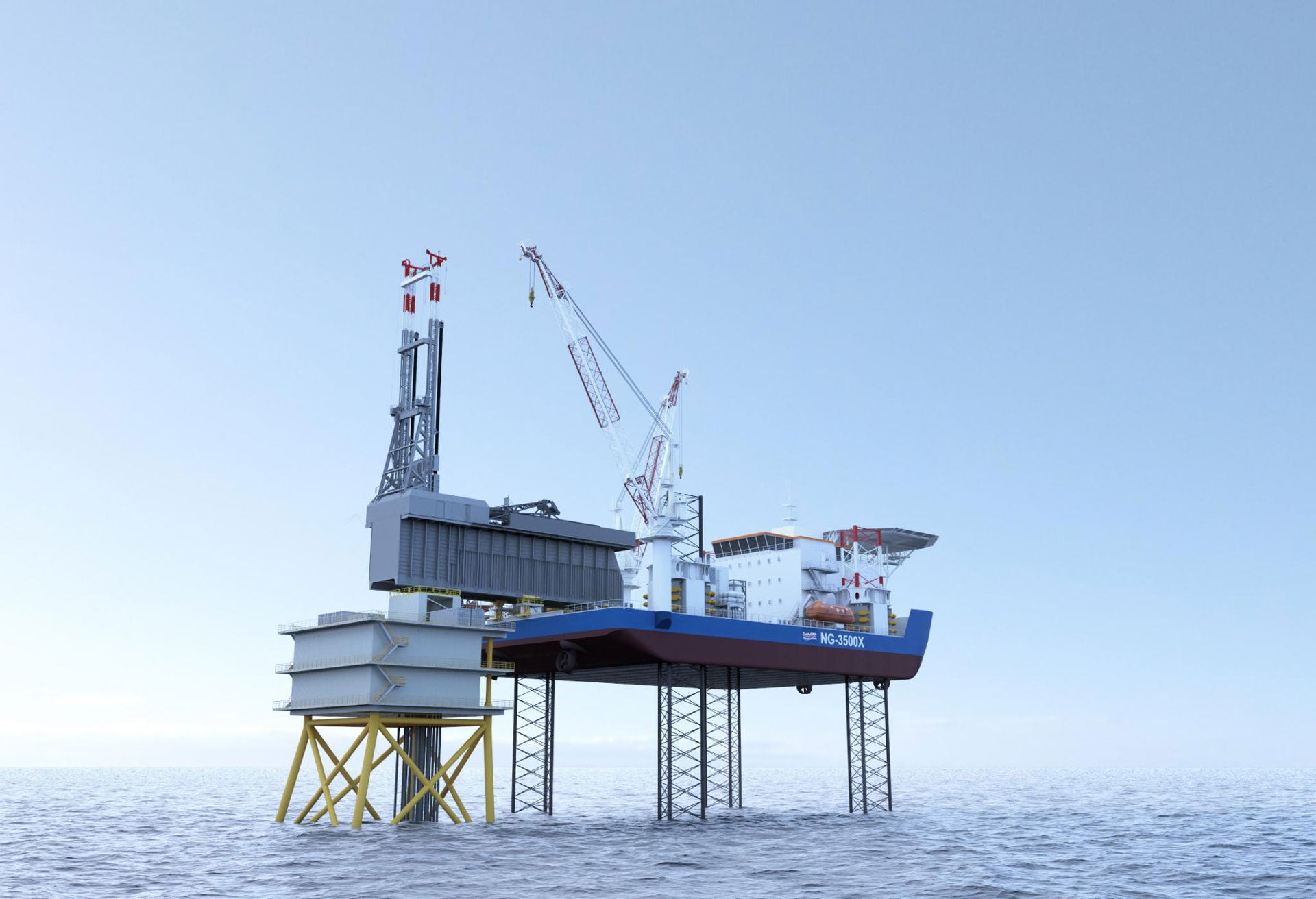

NG-3500X-LD Light Drilling Cantilever Reverse Angle
NG-3500X-LD Light Drilling Cantilever Reverse Angle
