NG-5500X-LD

NG-5500X-LD Self-propelled jack-up

Safe, Stable, and Efficient

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Field lifecycle

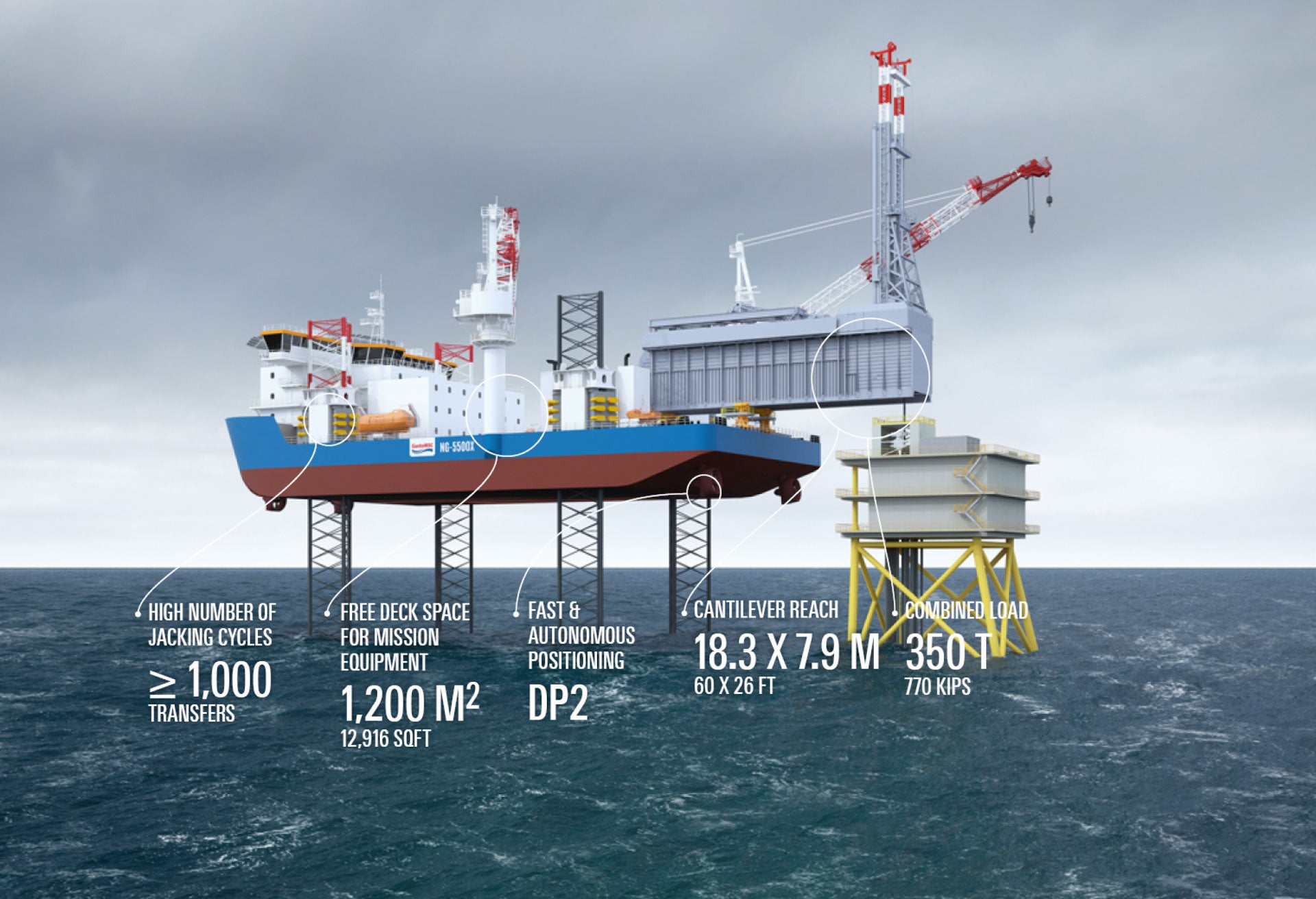

The NG’s are a series of multi-purpose jack-ups. These units undertake transit and positioning offshore without tug assistance. The four legs and diagonal preloading capability allow for easy, fast, and secure jacking and pre-loading operations.

The NG-5500X-LD is intended for use in water depths of up to 80 m in a moderate environment as well as harsh offshore environment water depths of 50 m. The unit is equipped with a well-balanced DP2 maneuvering capability and a VFD-driven jacking system providing a controlled ramp-up / ramp-down, speed & torque control, for frequent, fast, and secure jacking operations and with high redundancy.

The NG-5500X-LD truly bridges the gap between the successful shallow to midwater service units and the full-fledged drilling rigs. This light drilling rig will ensure high utilization as it can serve a variety of brownfield needs.

Highlights

  • Safe, solid and stable platform
  • Transit and positioning without tug assistance
  • Easy and fast installation onsite by diagonal pre-loading
  • Large free deck space
  • Modern accommodation layout
  • VFD controlled Rack & Pinion jacking system
    • Fast , secure and controlled Jacking and Preloading
    • High number of jacking moves
    • Built-in redundancy
  • The NG series can be fully customized to owner’s specific requirements
Specifications

Main characteristics

Water depth

50 - 80 m

Deck size 87.5 x 42.0 m
Variable load oper. max. 2,750 t
Cantilever reach 18.3 x 7.9 m
Derrick 550 kips

Resources
  • NG-5500X-LD Brochure
