Offshore Bulk Transport Vessels

Our bulk cement transport vessel-skid assembly is designed for convenient transportation of bulk materials to offshore drilling locations.

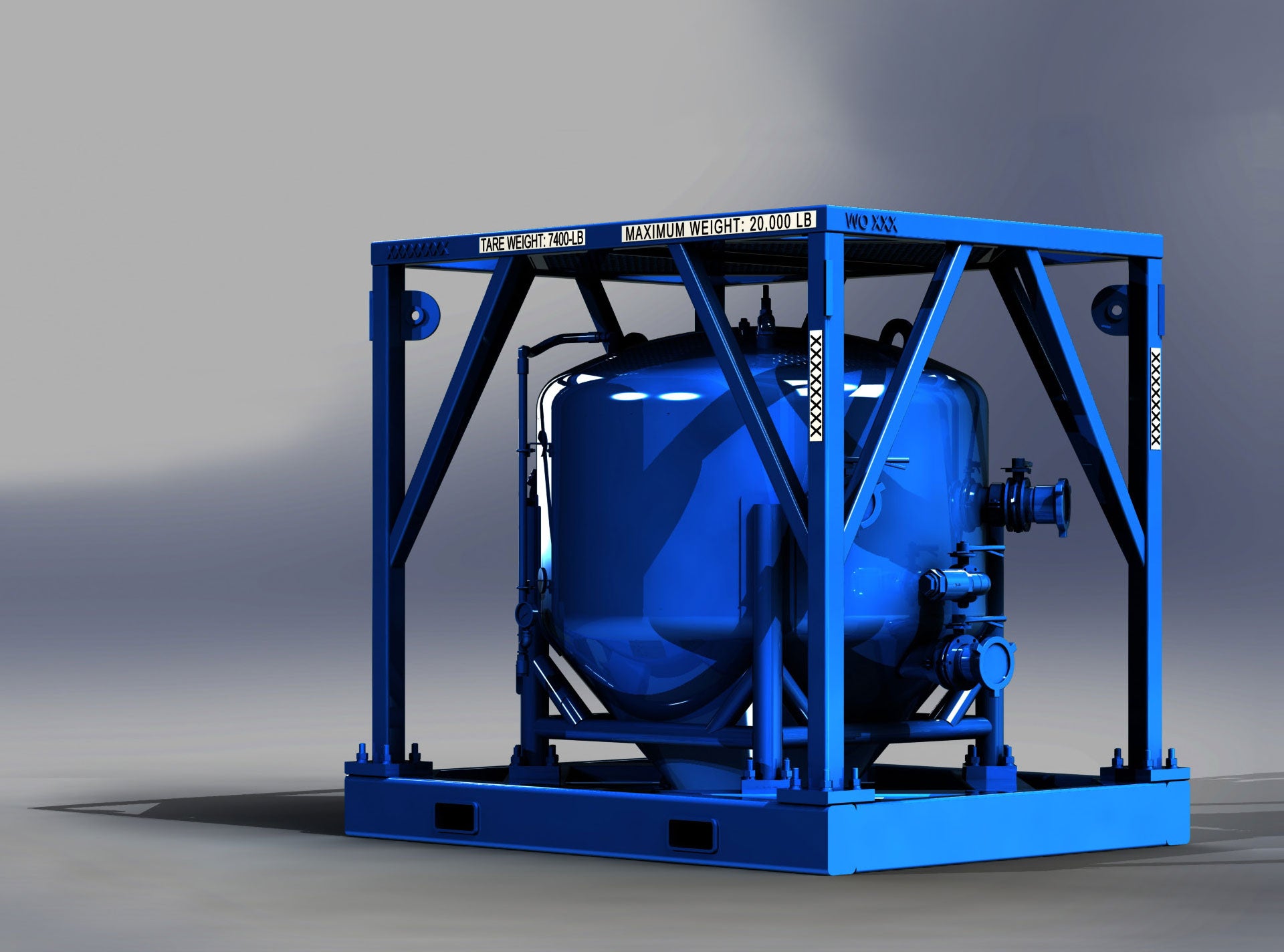

Render of Offshore Bulk Transport Vessel
Description

We have two pressure vessel models currently available with 130- and 220-ft³ capacities. Our pressure vessels are skid-mounted with an enveloping lift frame, and the bulk material is loaded and discharged pneumatically.

Our skid-mounted bulk cement transport vessels are designed in accordance with DNV Standard for Certification No. 2.7-1, but they may be certified to other customer specifications. The pressure vessel is also designed to the requirements of ASME Sec. VIII, Div. 1, current edition as well as for registration with the National Board of Boiler and Pressure Vessel Inspectors.

This vessel comes complete with 5-in. fill, vent, and discharge ports in the side of the tank, as well as a 20-in. Wilco™ manway in the vessel cone. A 3-in. connection in the side of the tank feeds a set of aeration jets in the center of the tank for pressurization. Other aeration methods may be specified by the customer.

Manways

Wilco ASME-certified manways are available in both dome and flat designs and in almost any size required. Extended neck lengths are also available. Flat models are available with or without davit assembly.

Features/Benefits

  • The vessel features 5-in. fill, vent, and discharge ports in the side of the tank as well as a 20-in.
  • Wilco manway in the vessel cone.
  • A 3-in. connection in the side of the tank feeds a set of aeration jets in the center of the tank for pressurization.
  • Other aeration methods may be specified by the customer.
Specifications

Offshore Bulk Transport Vessels Specifications

Pressure vessel capacity

130 ft³

220 ft³

Skid dimensions

8 × 8 ft 10 in. × 7 ft ()

9 ft 3.5 in. × 8 ft 6 in. × 8 ft 6 in. (2.83 × 2.59 × 2.59 m)

Vessel dimensions

6 ft × 6 ft 9 in. (1.83 × 2.05 m)

8 ft × 7 ft 3 in. (2.44 × 2.21 m)

Weight (empty)

7,400 lb (3360 kg)

10,200 lb (4630 kg)

Maximum certification weight

20,000 lb (9070 kg)

35,000 lb (15 876 kg)

Maximum pressure

45 psi (310 kPa) at 190 °F (88 °C)

38 psi (262 kPa) at 190 °F (88 °C)

Maximum temperature

-20 °F (-29 °C) at 45 psi (310 kPa)

-20 °F (-29 °C) at 38 psi (262 kPa)





Resources
  • Wilco Additional Code and Non-code Vessels Design Portfolio

  • Wilco Capabilities and Services Brochure

  • Wilco Manways Specification Sheet
