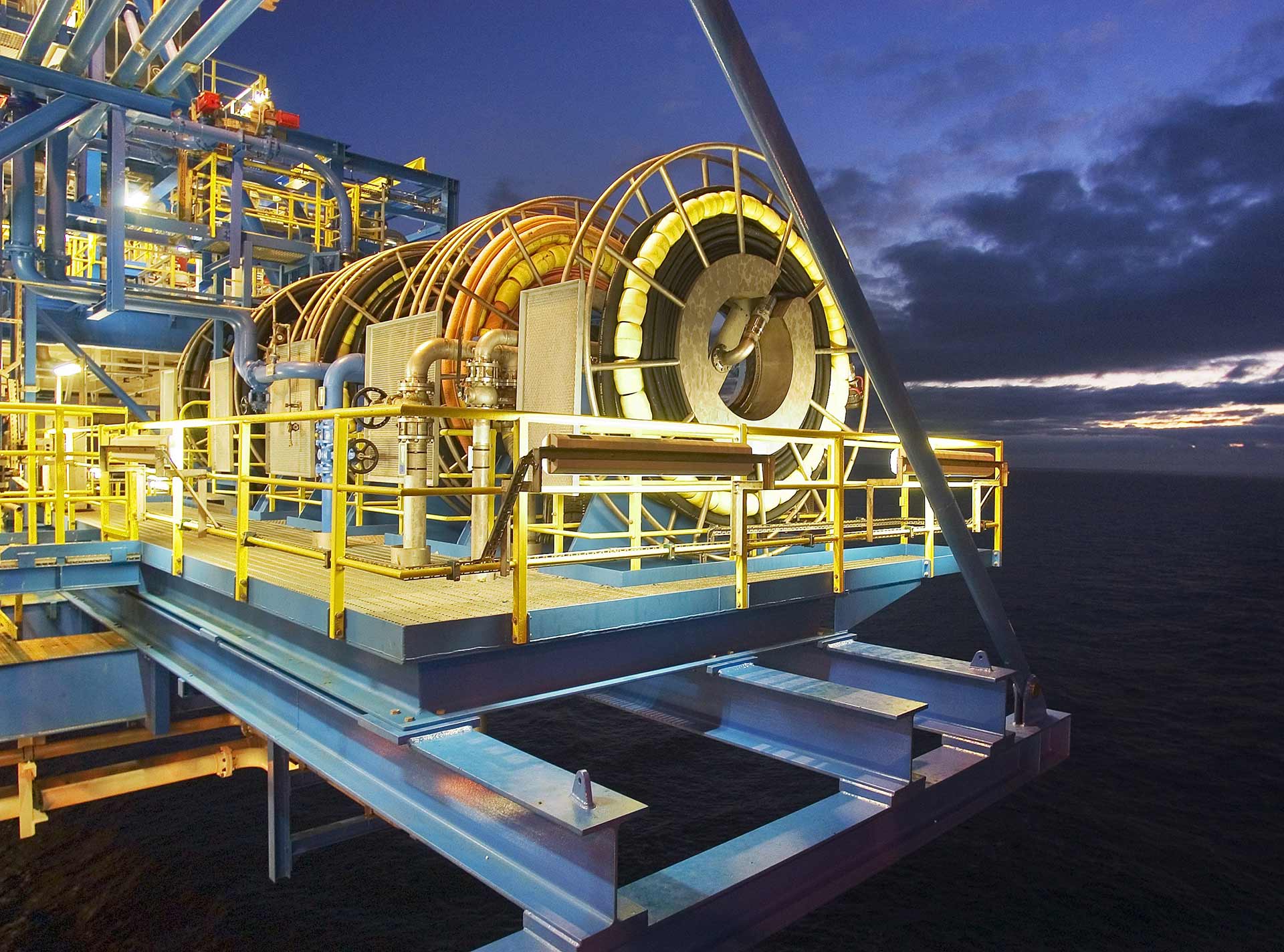

Offshore hose reels and hose loading station on drilling platform

Offshore Hose Loading Stations

Achieve greater loading control during fluid transfer and dry materials bulk transfer between supply vessels and fixed platforms, floating production vessels, or offshore drilling rigs.

  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Our offshore hose loading reels are controlled using a portable control lever or the fixed control lever located on the power pack. No manual handling of the hoses is necessary apart from connecting and disconnecting the crane hook.

Benefits

  • Single and multi-reel offshore hose loading stations
  • Designed for safe and easy hose handling operations
  • Increased lifespan of the loading hoses
  • Reduced life cycle costs of hoses
  • Designed for ease of assembly and maintenance
  • Reduced risk for spillage
  • Global OEM support

Offshore hose loading features and options

  • Weak-link ensures a controlled brake of the hose assembly
  • Liquid hose with permanent connection, including low-friction anti-twist swivel
  • Flexible hose for dry-bulk connection
  • Floating section with floating elements
  • Non-corrosive hose components
  • Hose reels made with AISI 316 stainless steel
  • Remote operation with radio control
  • Safety cage

Optional electric drive configuration

  • All hydraulics are replaced by electronics.
  • Each hose reel is driven by an electrical motor with failsafe multidisc brakes.
  • Motors are controlled by variable frequency drive (VFD).
  • VFD will replace the hydraulic power unit (HPU).
Specifications

Hose Reel Stations Specifications

This table shows the most standard variation of reels; the offshore hose loading station can be supplied in a variety of configurations.

Model Weight (kg) Dimensions (L × W × H) (m) Power Consumption (kW)
1 Reel 3400 2.3 × 3.5 × 4 12.7
5 Reels 13,400 8.7 × 3.5 × 4 12.7
8 Reels 20,000 12 × 3.5 × 4 12.7
9 Reels 22,000 13.6 × 3.5 × 4 12.7
10 Reels 24,000 14.2 × 3.5 × 4 12.7
11 Reels 26,000 15.6 × 3.5 × 4 12.7

Length: up to 120 m
Hose sizes: 1½, 2, 2½, 3, 4, 5, and 6 in.

Resources
  • Hose Loading Stations Flyer

    Flyer describing our line of Hose Loading Stations

  • Lifting and Handling Product Portfolio

    Brochure highlighting our Lifting and Handling products and services

Engineering Excellence

Designed for ease of operation, maintenance, and reliability – backed by a global network of support.

Hose loading station and hose reels as seen on the Stena Drillmax drillship
Hose loading station and hose reels as seen on a drillship
Hose loading station and hose reels as seen on a drilling rig
Maintenance deck for easy access
Hose loading station and hose reels as seen on a drilling rig
Available in a variety of configurations
Hose loading station and hose reels as seen on the Johan Sverdrup drilling platform
Hose loading station and hose reels as seen on a drilling platform
