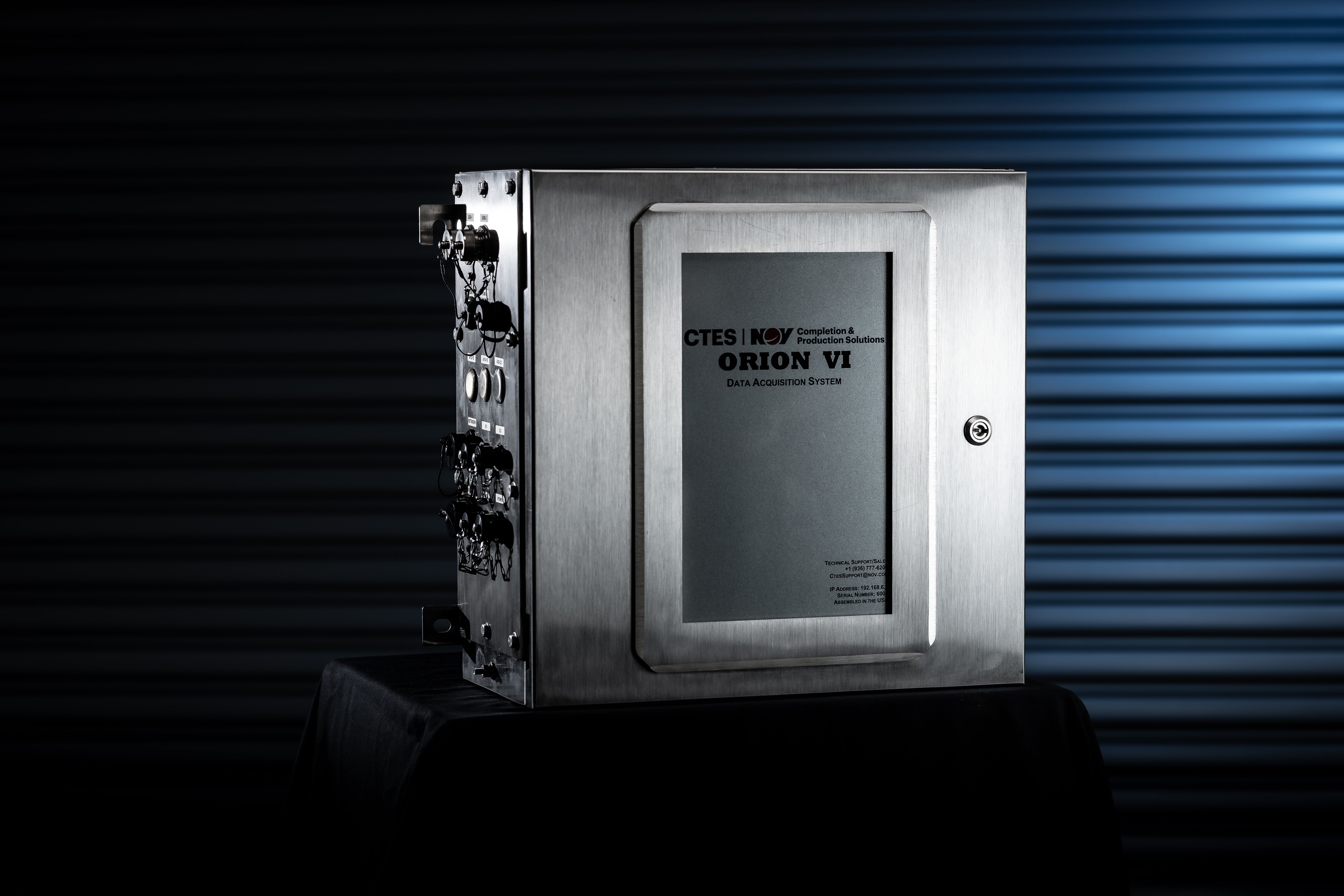

Orion VI DAS for Intervention

Data acquisition system for real-time data monitoring at the wellsite

Description

Specifications

Power input
Safe area	110-220 VAC at 50/60Hz or 10-36 VDC
Safe area with IS upgrade	220 VAC at 50/60Hz or 10-36 VDC
Hazardous certified	110-220 VAC at 50/60Hz
Operating temperature (95% non-condensing)
Safe area	-4 to 140°F / -20 to +60°C
Safe area with IS upgrade	-4 to 140°F / -20 to +60°C
Hazardous certified	-4 to 122°F / -20 to +50°C
Storage temperature (95% non-condensing)	-4 to 158°F / 20 to +70°C
Shock	5G continuous and 20G peak
Ingress rating	IP67
Enclosure dimensions (W x H x D)
Safe area	20 x 20 x 8 in.
Safe area with IS upgrade	24 x 24 x 8 in.
Hazardous certified	24 x 24 x 8 in.
Certifications	ATEX IECEx
