Portable Diesel Light Towers (US)

Portable Power provides diesel-powered light towers for land use while quietly supplying light to any land-based job site.

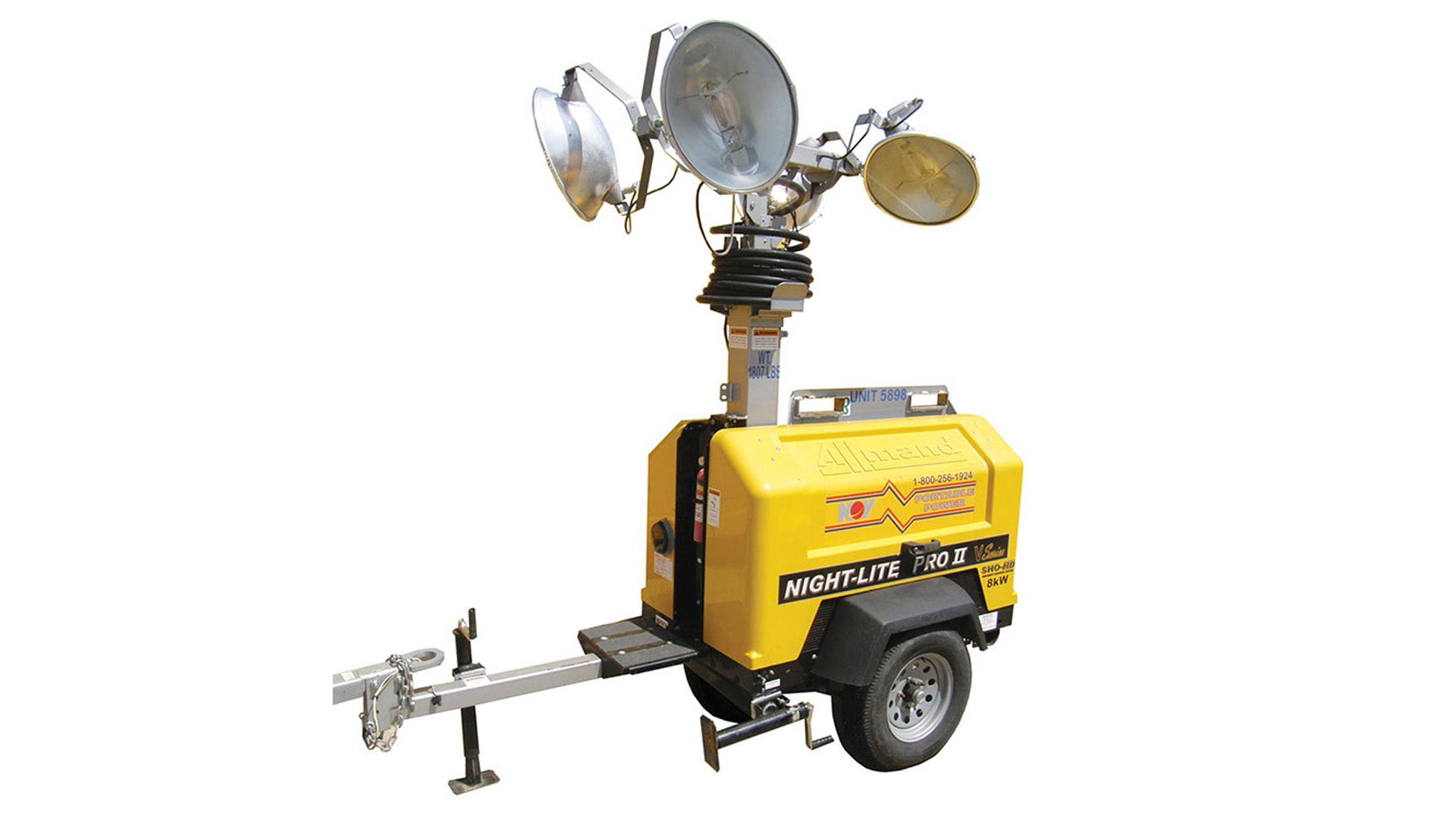

Render  of Portable Diesel  Light Towers
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Customizing portable power with proven, effective design and quality service

All Portable Power units are custom built to supply light in the harshest environments, employing heavy-duty sound-attenuated housings and stainless steel components.

Portable Power light towers, powered by Kubota Tier 4 engines, meet or exceed all requirements for operation on land-based job sites. Standard features include forklift pockets, circuit breakers, and a trailer mount. Easy operating instructions are included with each unit.

The NOV Portable Power group has highly trained technical teams of mechanics and electricians. The technical support staff is available to the energy and construction industries for both land-based and offshore work sites. Services include job surveys, hook-ups, troubleshooting, and maintenance. Technicians are available 24 hours a day, 7 days a week.

Features

  • Four 1,250-Watt metal halide bulbs
  • Sound-attenuated housing
  • Vertical lifting
  • Forklift sockets
  • Single-point lifting system
  • Generator disconnect

Benefits

  • Safe working environment
  • Reduces noise in work area
  • Safe and easy lifting operation
  • Safe lifting capabilities
  • Enables use of existing power for lights
Specifications

Portable Diesel Light Towers (US) Specifications

Model 8 kW 20 kW 30 kW
Dimensions (L × W × H) 106 × 54 × 85 in. (2692 × 1372 × 2159 mm) 124 × 74 × 92 in. (3150 × 1880 × 2337 mm) 142 × 77 × 101 in. (3607 × 1956 × 2565 mm)
Height with mast extended 25 ft (8 m) 25 ft (8 m) 26 ft 6 in. (8 m 152 mm)
Weight 1,807 lb (820 kg) 2,503 lb (1137.7 kg) 5,007 lb (2275.9 kg)
Fuel consumption (full load) 0.5 gal/hr (1.9 L/hr) 2.0 gal/hr (7.57 L/hr) 1.8 gal/hr (6.81 L/hr)
Engine type Kubota Tier 4 Isuzu Kubota
Stabilizers (out riggers) 3 4 5
Fuel tank 30 gal 50 gal 135 gal
Power outlets (1) 110 Volt (2) 110 Volt, (2) 30 Amp 125 VAC, (1) 50 Amp 240 VAC (4) 110 Volt, (2) 50 Amp 240 VAC, (1) 30 AMP 120 VAC
Resources
  • Diesel Light Towers Flyer (English)
  • Diesel Light Towers Flyer (Spanish)
  • Diesel Light Towers Flyer (Chinese)
