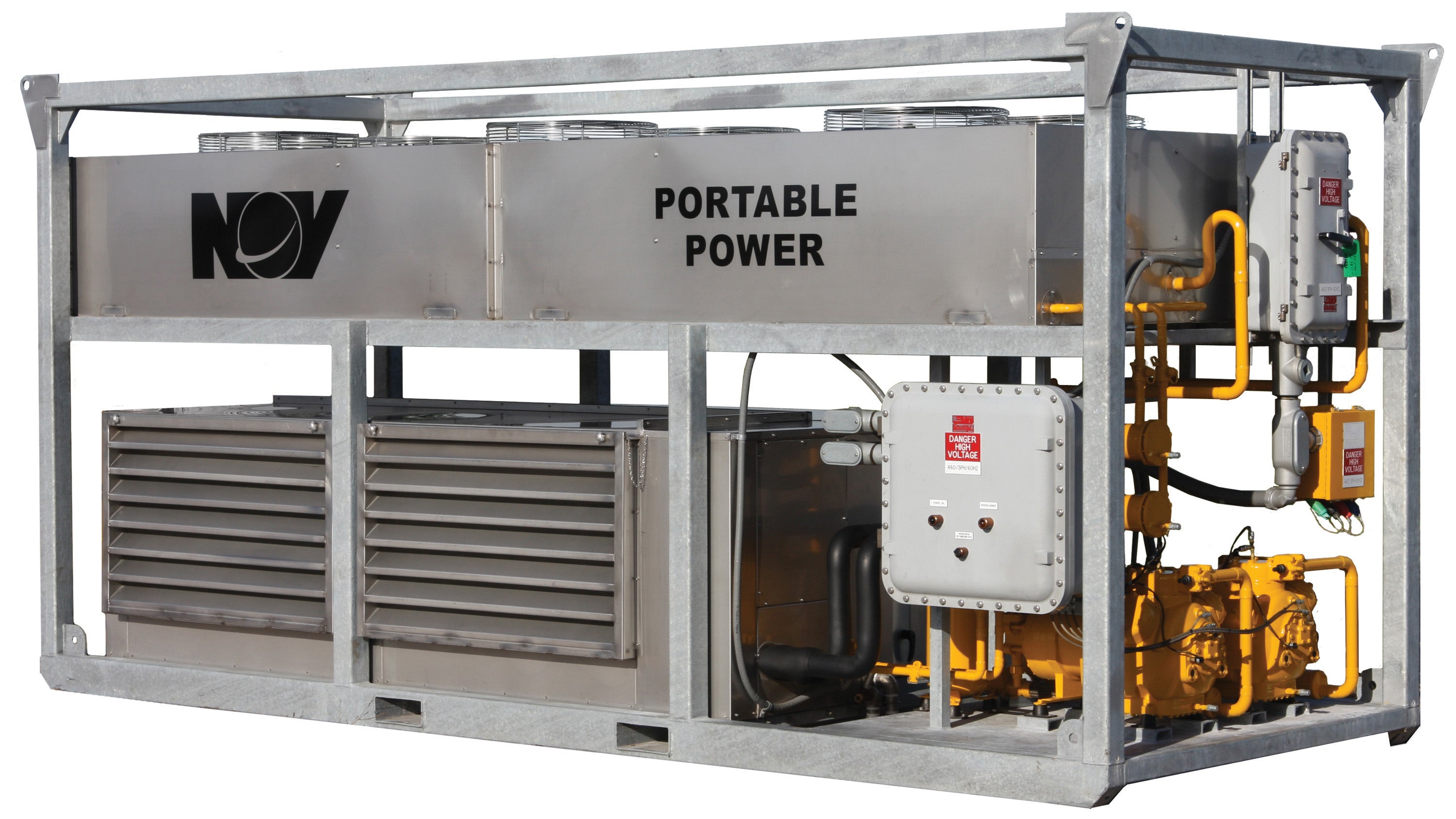

Our portable HVAC units supply temperature and humidity control to any application.
-
Description
-
Specifications
-
Resources
Description
Customizing HVAC equipment with effective designs for optimal control
Portable Power markets air conditioners, air-cooled water chillers, dehumidifiers and electric heaters that supply temperature and humidity control to any application. Units are available in Class I, Division 2 for use in restricted areas that require explosion-proof units. Models vary in size and output capabilities, ranging from 1.5 to 500 tons (14,000 to 6 million Btu/hr), for all your temperature and humidity control needs.
Features/Benefits
- Phase rotation monitors and color-coated camlock connections
- Ensure correct phase rotation and ease
- Heater coils (factory air conditioners)
- Allow control of temperature and humidity during changing weather conditions
- Multiple air outlets and return air capability (air conditioners)
- Provide distribution of air to a larger area, with improved air temperature and flow control
- Skid frames with forklift pockets and lifting slings
- Prolong equipment life and allows for ease of equipment loading/unloading
- Commercial grade with coated coils and heavy-duty compressors (air conditioners and chillers)
- Gauges on process and reactivation air (dehumidifiers)
- Maximize drying and indicate filter conditions
- Manually adjustable dampers (electric heaters)
Specifications
Portable HVAC Unit Specifications
| Unit size | Full load (amps) |
Dimensions (L × W × H) |
Weight | Volume | Notes |
| 1.5 ton |
12 (120 V) |
26 × 20 × 46 in. (660 × 508 × 1168 mm) |
153 lb (69 kg) |
300 cfm | Needs condenser duct |
| 12.5 ton | 45 |
146 × 90 × 87 in. (3708 × 2268 × 2210 mm) |
2,000 lb (907 kg) |
5,000 cfm | 20 °F (11 °C) below ambient |
| 25 ton | 70 |
156 × 90 × 87 in. (3962 × 2286 × 2210 mm) |
4,000 lb (1814 kg) |
1,200 cfm | 20 °F (11 °C) below ambient |
| 40 ton | 150 |
270 × 96 × 111 in. (6858 × 2438 × 2819 mm) |
7,000 lb (3175 kg) |
16,000 cfm | 20 °F (11 °C) below ambient |
| 50 ton | 150 |
270 × 96 × 111 in. (6858 × 2438 × 2819 mm) |
7,000 lb (3175 kg) |
20,000 cfm | 20 °F (11 °C) below ambient |
| 80 ton | 200 |
221 × 80 × 89 in. (5613 × 2032 × 2261 mm) |
11,000 lb (4990 kg) |
10,000 cfm | 40 °F (22 °C) below ambient |
