Pressure Control Accessories

We offer several different kinds of pressure control accessories to provide a complete package for your operations. All items are available in applicable bore sizes and working pressures.

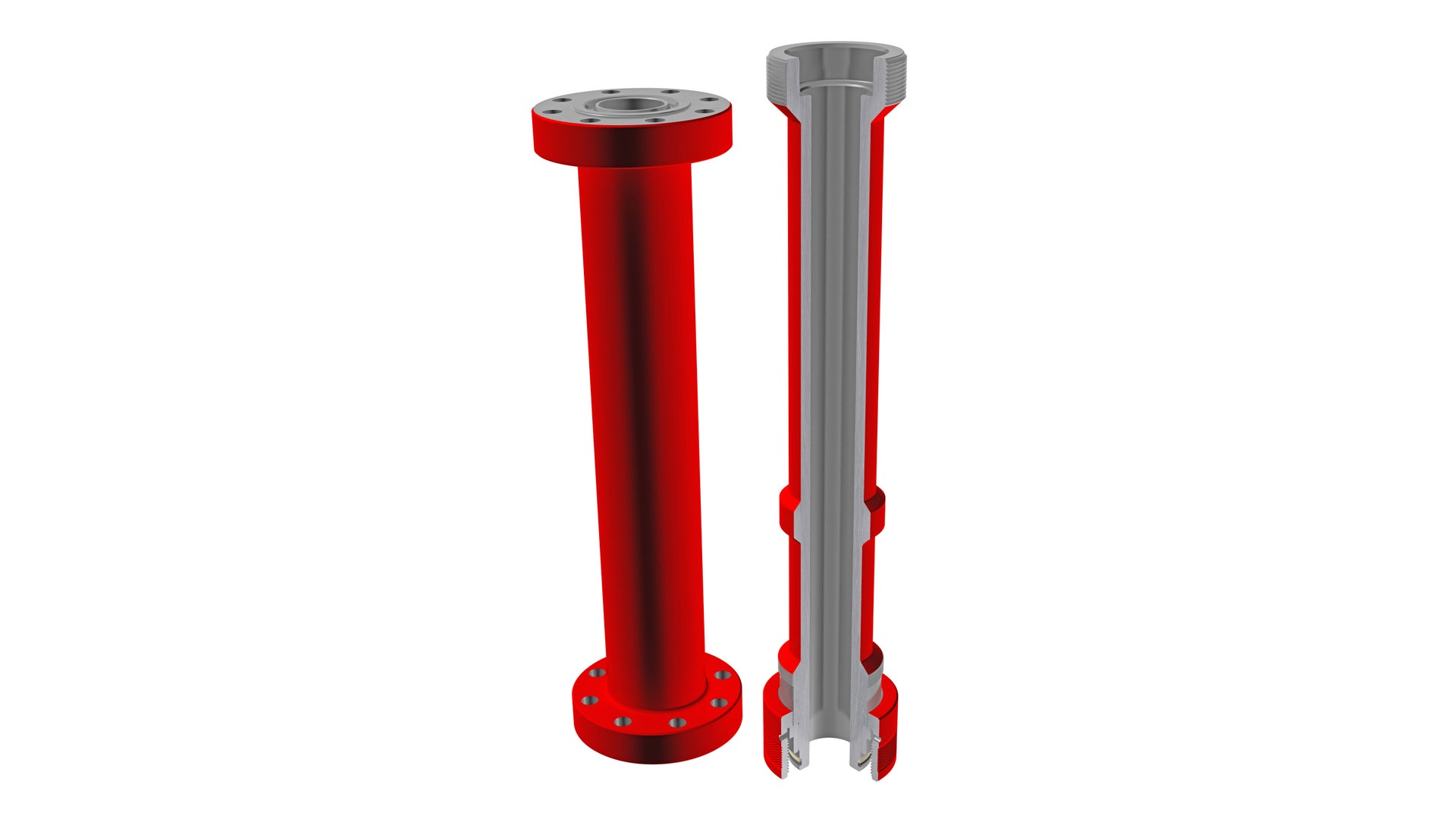

Render of  pressure control accessories
  • Description Description
  • Resources Resources
Description

Texas Oil Tools™ pressure control accessories include lubricators and risers, tubing cutters, flow crosses, quick disconnects, adapter flanges, quick unions, adapter spools, and flow tees.

Flow cross

We offer flow crosses from 2.56 to 7.06 in. with 2.06, 3.06, or 4.06 in. side outlets. Flow crosses can be manufactured to any desired length or the shortest standard length possible.

Lubricators and risers

Our lubricators and risers have integral (non-welded) end connections or flanges and are manufactured in 5,000, 10,000, and 15,000 psi working pressures.

Union connections:

  • CB-Bowen
  • CO-Otis
  • CQ-TOT

Quick disconnect

Using the same locking dog principle as the Hydraconn and injector connector quick latches, our quick disconnect is designed to increase safety when pumping to additional vessels with flexible hoses and reels. The function of the disconnect is to quickly disconnect in the event of an emergency to avoid damaging the hose when the vessel drifts away.

We offer quick disconnects that range in size from 2.56 to 4.06 in. and that are available in 5,000-, 10,000-, and 15,000-psi working pressures. H2S service models are available, along with designs using corrosion-resistant alloy components. End connections can be accommodated for flange, hub, or hose-end connections.

Tubing cutter

In response to the needs of the coiled tubing industry, we have developed a line of coiled tubing cutters for use in a variety of applications.

  • Three models are currently available for shearing up to 3.5 in. outside diameter (OD) tubing.
  • Hydraulically operated cutter comes in a configuration as light as 42 lb for easy handling.
  • Generates over 60,000 lb of force
  • Requires only one hydraulic hose connection
  • Air spring return for blades
Resources
  • Texas Oil Tools Subsea Well Intervention Equipment Catalog
  • Texas Oil Tools Well Intervention Equipment Catalog
Render of Pressure Control Accessories Flowcross
Flow cross
Render of Pressure Control Accessories Quick Disconnect
Quick disconnect
Render of Pressure Control Accessories Tubing Cutte
Tubing cutter
