Register here Sign inPumping Flow Tees

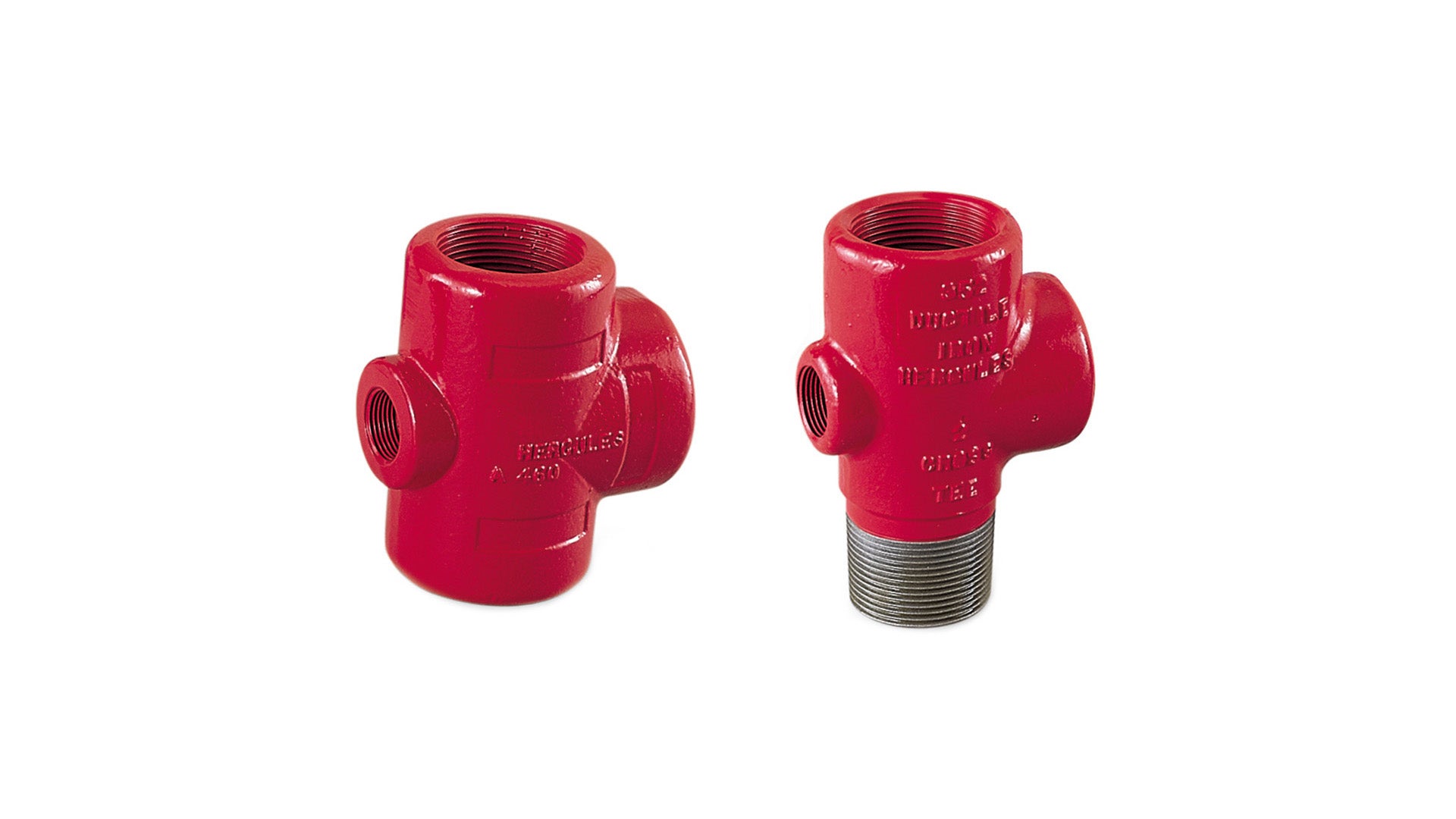

Our corrosion-resistant pumping flow tee is available in various configurations according to your application needs.
-
Description
-
Specifications
Description
With more than 70 years of manufacturing experience for the oil and gas industry, our Hercules™ flow tees are the most preferred in the market.
Features/Benefits
- Ductile iron construction
- Most precise alignment in the industry
- Hundreds of thread combinations
- 2-, 2½-, and 3-in. cast steel tees meeting NACE MR0175 available
- Corrosion-resistant coatings available
- Four-way cross configuration available in 2- and 4-in. LP
- 1-in. NPT standard (or smaller) bleeder port
- 2-in. bleeder available in some sizes (bleeder port can be left blank by request)
Specifications
Pumping Flow Tee Specifications
| Model No. |
Bottom thread (tubing or LP) |
Top thread (tubing or LP) |
Major side outlet (LP) |
Height | Weight |
| CT-7 | 2 in. | 2 in. | 2 in. | 6 in. | 9 lb |
| CT-13 | 2-in. male | 2 in. | 2 in. | 7¼ in. | 7 lb |
| CT-8 | 2 in. | 2½ in. | 2 in. | 7¼ in. | 13 lb |
| CT-17 | 2 in. | 3 in. | 2 in. | 8 in. | 21 lb |
| CT-1 | 2 in. | 3 in. | 3 in. | 8 in. | 18 lb |
| CT-18 | 2½ in. | 2 in. | 2 in. | 7¼ in. | 13 lb |
| CT-11 | 2½ in. | 2½ in. | 2 in. | 7¼ in. | 13 lb |
| CT-14 | 2½-in. male | 2½ in. | 2 to 2½ in. | 8 in. | 10 lb |
| CT-9 | 2½ in. | 2½ in. | 2 ½ in. | 7¼ in. | 12 lb |
| CT-19 | 2½ in. | 2½ in. | 3 in. | 8 in. | 20 lb |
| CT-12 | 2½ in. | 3 in. | 2 in. | 8 in. | 20 lb |
| CT-10 | 2½ in. | 3 in. | 2½ in. | 8 in. | 20 lb |
| CT-16 | 2½-in. male | 3 in. | 2 in. | 8 in. | 10 lb |
| CT-2 | 2½ in. | 3 in. | 3 in. | 8 in. | 18 lb |
| CT-20 | 3 in. | 2½ in. | 2 in. | 8 in. | 20 lb |
| CT-21 | 3 in. | 2½ in. | 2½ in. | 8 in. | 20 lb |
| CT-22 | 3 in. | 2½ in. | 3 in. | 8 in. | 20 lb |
| CT-23 | 3 in. | 3 in. | 2 in. | 8 in. | 20 lb |
| CT-3 | 3 in. | 3 in. | 3 in. | 8 in. | 18 lb |
| CT-25 | 3-in. male | 3 in. | 2 to 3 in. | 9½ in. | 19 lb |
| CT-4 | 4 in. | 3 in. | 3 in. | 7¾ in. | 22 lb |
| CT-24 | 4 in. | 4 in. | 3 in. | 7¾ in. | 21 lb |
| CT-6 | 4 in. | 4 in. | 4 in. | 7¾ in. | 18 lb |
Other models are available.
Note: Pumping tee test pressure >1.5 × working pressure (male threads) and 2 × working pressure (female threads)
*Corrosion-resistant coatings are available; contact customer service.
**CT-1, CT-2, and CT-3 are available in carbon steel with welded 3.12-in. 2M or 3M API top flange for attachment of PCP drive head.
