ReAct Completion Circulation Valve

Our ReAct completion circulation valve incorporates our unique ReAct technology to enable downhole tools to be remotely activated without control lines or intervention runs.

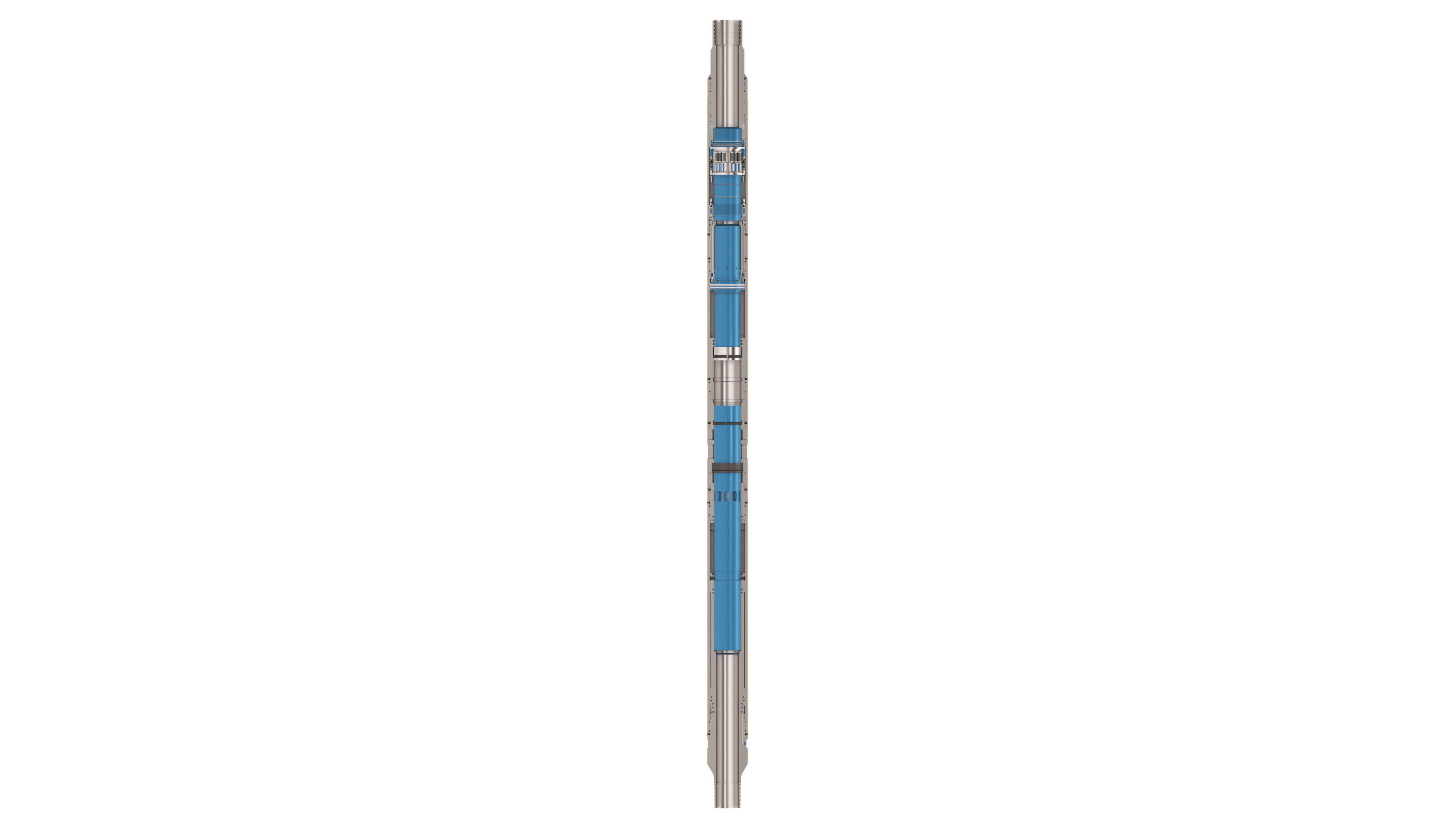

Render  of ReAct Circulation Valve
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

The ReAct™ Completion Circulation Valve (RCCV) is a remotely activated completion valve that is run above the upper completion production packer. The valve incorporates our unique ReAct technology, which allows downhole tools to be remotely activated without the need of control lines or intervention runs. The valve offers significant cost and time savings compared to conventional operations. Dependent on the well design, either multiple wireline runs can be eliminated or, in many cases, entire middle completion strings can be eliminated, saving both significant rig time and cost.

The RCCV can be deployed above any packer and is run closed to allow for packer setting and packer/tubing testing. Once the production packer is set, the operator can pressure test the tubing against the closed RCCV. Applying increased annulus pressure then bursts a ruptured disk to open communication ports to circulate between the tubing and the annulus and vice versa. Once the tool is open, tubing fluid is then circulated out to a lighter fluid to allow the well to flow naturally. The valve is then closed by applying a ReAct pressure signal.

In addition to fully redundant primary and backup ReAct modules, the RCCV has full mechanical redundancy with a standard mechanical shifting tool in the unlikely event that it is not possible to activate any of the ReAct modules. The RCCV has great flexibility, as all of the operational parameters are fully adjustable until deployment.

Features

  • Incorporates our unique ReAct technology
  • Allows on-demand annulus-to-tubing communication above the production packer
  • Dual electronic redundancy
  • Valve permanently locked shut after operation
  • Shifting profiles provided to allow manual override
  • ISO 14998 V0 barrier qualified

Benefits

  • No need for control lines
  • No need for intervention runs to operate valve
  • Potentially removes the requirement for a middle completion string
  • Maximum flow area through circulating ports
  • Pressure signal can be fully adjusted until deployment

Application

  • Displacement of completion fluids
Specifications

ReAct Completion Circulation Valve Specifications

Tool size 5.500 in.
End connections Customer specific
Material 13%Cr-80, L-80, etc.*
OD 8.250 in. max.
ID 4.562 in.
Length 161.000 in.
Flow area 16.345 in.
Pressure rating 10,000 psi
Operating temperature 150 °C max.

* Other materials available on request.
