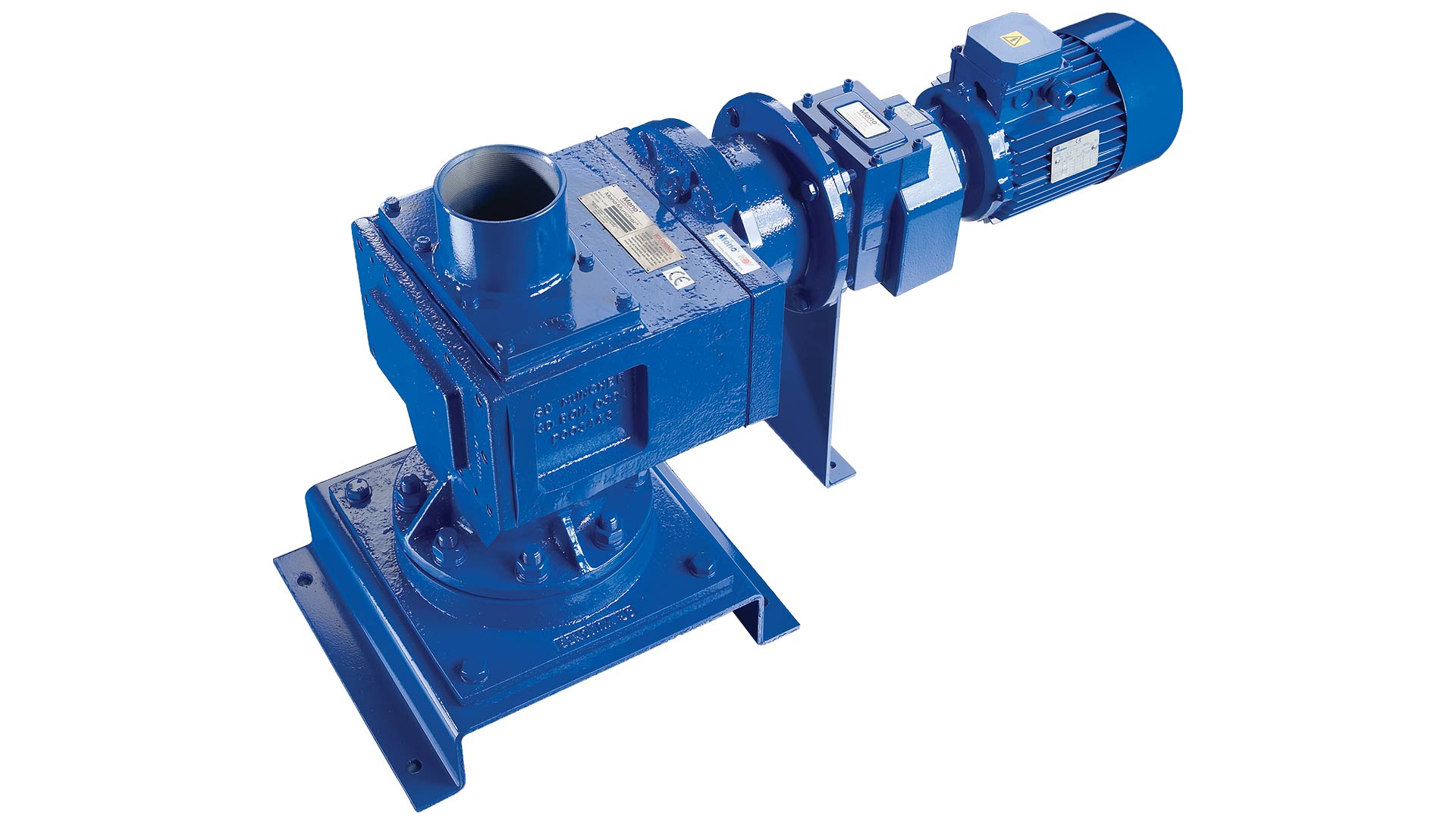

Register here Sign inSB Muncher
Time and time again, our Munchers prove to be the most economical solution to a problem many of our customers previously thought difficult to solve.
-
Description
-
Resources
Designed as an effective sewage grinder and to replace high-speed macerators, the SB Muncher can save up to 85% of the energy requirements of a centrifugal force system. Typically, it has a cutting tip speed 90% less than a high-speed macerator system and also much lower vibration and noise levels.
Being of a compact size for the smaller-capacity flows, the unit operates as an independent unit for open-channel or pipeline configuration. When combined with our transfer pump, the package provides a highly efficient sewage pumping system.
Features/Benefits
- ETOS cutters offer positive and effective solids maceration
- Cantilever shaft design with no bottom bearings or seals to minimize maintenance costs
- Low cutter tip speeds ensure power is not wasted in water horsepower and abrasive wear rates are minimized
- Low speed also results in lower noise and vibration levels
- One-piece cutter/box bearing housing to provide a simple, compact construction
- 3-year warranty on raw sewage applications for pipeline units
- Each muncher is supplied with a programmable logic controller (PLC) to protect the machine against damage and overloads
- Munchers can be supplied to comply with the ATEX Directive 94/9/EC
