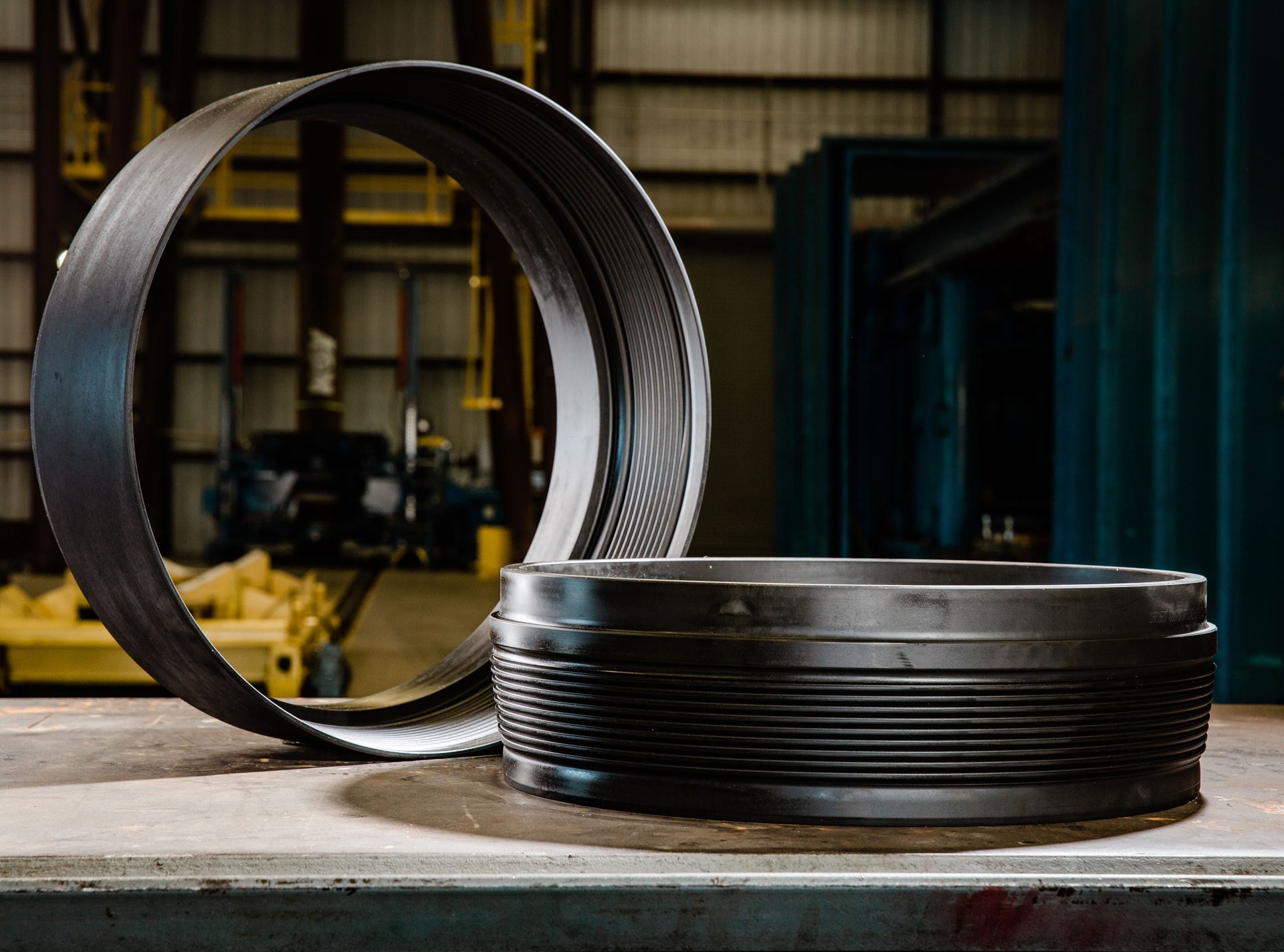

Two XL Systems large diameter Scorpion Connector displayed upright and on side.

Scorpion Connectors

The latest in our compact class of connectors, Scorpion provides robust strength and proven sealability in deep onshore wells and shallow-water offshore wells.

  • Description Description
  • Resources Resources
Description

Our Scorpion connector is a slim-design, large-diameter, threaded, weld-on connector with superior tested performance. Designed for land applications and shallow-water, low-profile offshore wells, the Scorpion connector has a reliable internal, elastomeric O-ring seal for providing 100% internal and external pressure rating. This connector is an economical alternative that provides over 100% pipe body ratings in tension, compression, and bending with its optimized bore design. Faster installation saves significant time, with the 1-ST option making-up in 1.68 turns and the 3-ST option making-up in 0.56 turns.

The unique alignment guides and hooked threadform allow for deep stabbing, self-aligning, and flawless makeup every time. The exceptional O-ring design provides internal and external pressure sealability beyond 100% of pipe body, and the stress distribution grooves near the critical cross-sections reduce peak stresses to optimize performance capacities.

Features/Benefits

  • Hooked threadform
  • Internal primary O-ring seal
  • Alignment guides
  • Slim OD/ID design
  • Integral lift shoulder
  • Stress redistribution grooves
  • Reliable performance under loading conditions
  • Qualified to API 5C5 CAL I (liquid) requirements
Resources
  • Scorpion Connectors Data Sheet
  • Scorpion Connectors Product Summary Flyer
A closeup of two XL Systems large diameter Scorpion Connector displayed upright and on side
