Setter Frac Plugs

Our Setter dissolvable and composite frac plugs provide a dependable method for temporary zonal isolation during frac operations in both vertical and horizontal completions.

Render of Setter Frac Plugs
  • Description Description
  • Ruler Specifications
  • Resources Resources
Description

Our Setter™ composite frac plug is a full composite-design frac plug, and the Setter dissolvable frac plug is a fully metallic dissolvable plug. Both provide a dependable method for temporary zonal isolation during frac operations in vertical and horizontal completions.

The compact design and all-composite construction allow quicker milling times for the plug as well as less debris to remove from the well. The plug may be installed with the ball in place in applications of low well pressure or where reduced water consumption is a must. The plug also has a pump-down ring option to further reduce water consumption.

The unique dissolvable material and robust design eliminate milling and post-frac cleanout, leaving no debris to remove from the well and increasing efficiency.

Setter composite frac plug

Features

  • Compact, full composite design
  • Element support
  • Castellated lower slips
  • Ball may be installed in place or pumped down after setting
  • Pump-down wiper ring optional

Benefits

  • Excellent mill times and reduced debris
  • Reliable seal during high differential stimulations
  • Even slip distribution during setting operations and reduced spinning during mill-up
  • Reduced water consumption

Dissolvable frac plug

Features

  • Fully dissolvable and compact design
  • Minimal setting force to pack-off element
  • Robust element and slip design
  • Predictability to dissolve in as low as 1% brine
  • Anti-preset design

Benefits

  • Eliminate mill times and coiled tubing operations
  • Eliminate plug debris
  • Reliable seal during high differential stimulations
  • Even slip distribution during setting operations; secure in high-pressure applications
  • Full-bore access without intervention
Specifications

Setter Series Composite Frac Plug Specifications

Casing size, in. (mm) 4.5 (114.30) 5.5 (139.70)
Casting weight, lb/ft (kg/m) 11.6 to 13.5 (17.2 to 20.09) 17.0 to 23.0 (25.2 to 34.2)
Max. OD, in. (mm) 3.660 (92.9) 4.375 (111.1)
Min. ID, in. (mm) 1.000 (25.4) 1.000 (25.4)
Length, in. (mm) 17.00 (431.8) 18.00 (457.2)
Material Composite Composite
Temperature, °F (°C) 250 (121) 250 (121)
Pressure rating, psi (kPa) 10,000 (68 947) 9,000 (62 053)

Setter D Dissolvable Frac Plug Specifications

Casing size, in. (mm) 4.5 (114.30) 5.0 (127.0) 5.5 (139.70) 5.5 (129.70)
Casing weight, lb/ft (kg/m) 11.6 to 15.1 (17.2 to 22.4) 21.4 (31.8) 17.0 to 23.0 (25.2 to 34.22) 26 to 26.8 (38.6 to 39.8)
Max. OD, in. (mm) 3.5000 (88.9) 3.63 (92.2) 4.280 (108.7) 4.12 (104.6)
Min. ID, in. (mm) 0.750 (19.0) 1.000 (25.4) 1.500 (38.1) 1.500 (38.1)
Length, in. (mm) 21.66 (550.2) 22.11 (561.6) 22.11 (561.6) 20.96 (532.4)
Temp. rating, °F (°C) 250 (121) 250 (121) 250 (121) 250 (121)
Pressure rating, psi (kPa) 10,000 (68 947) 10,000 (68 947) 10,000 (68 947) 10,000 (68 947)
Material Metallic dissolvable Metallic dissolvable Metallic dissolvable Metallic dissolvable
Plug type Top ball Top ball Top ball Top ball
Resources
  • Setter Series Composite Frac Plug Data Sheet
  • Setter D Dissolvable Frac Plug Data Sheet
CT Setter Frac Plug Breen Aerial View

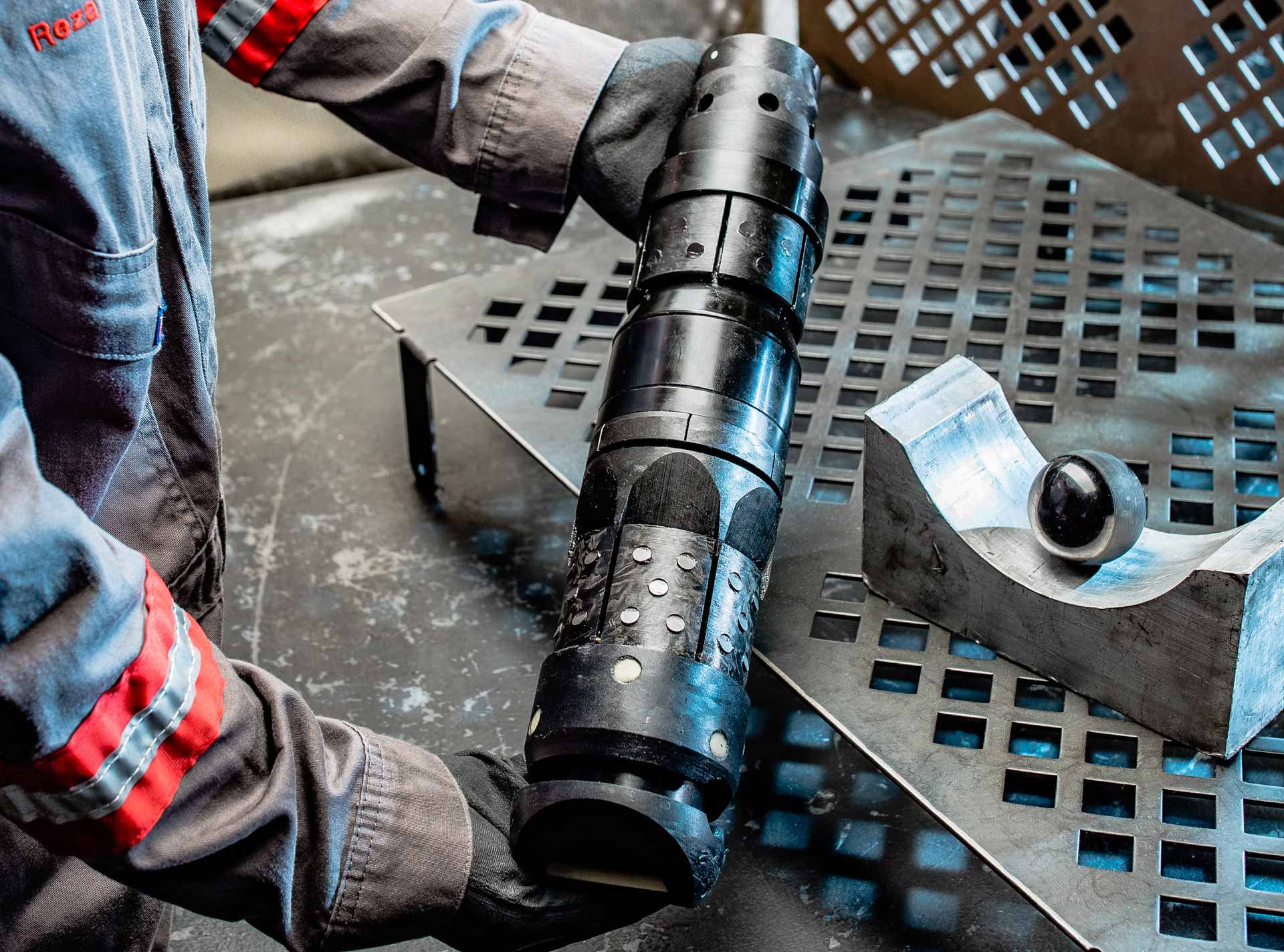

CT Setter Frac Plug Breen Aerial leaning view
