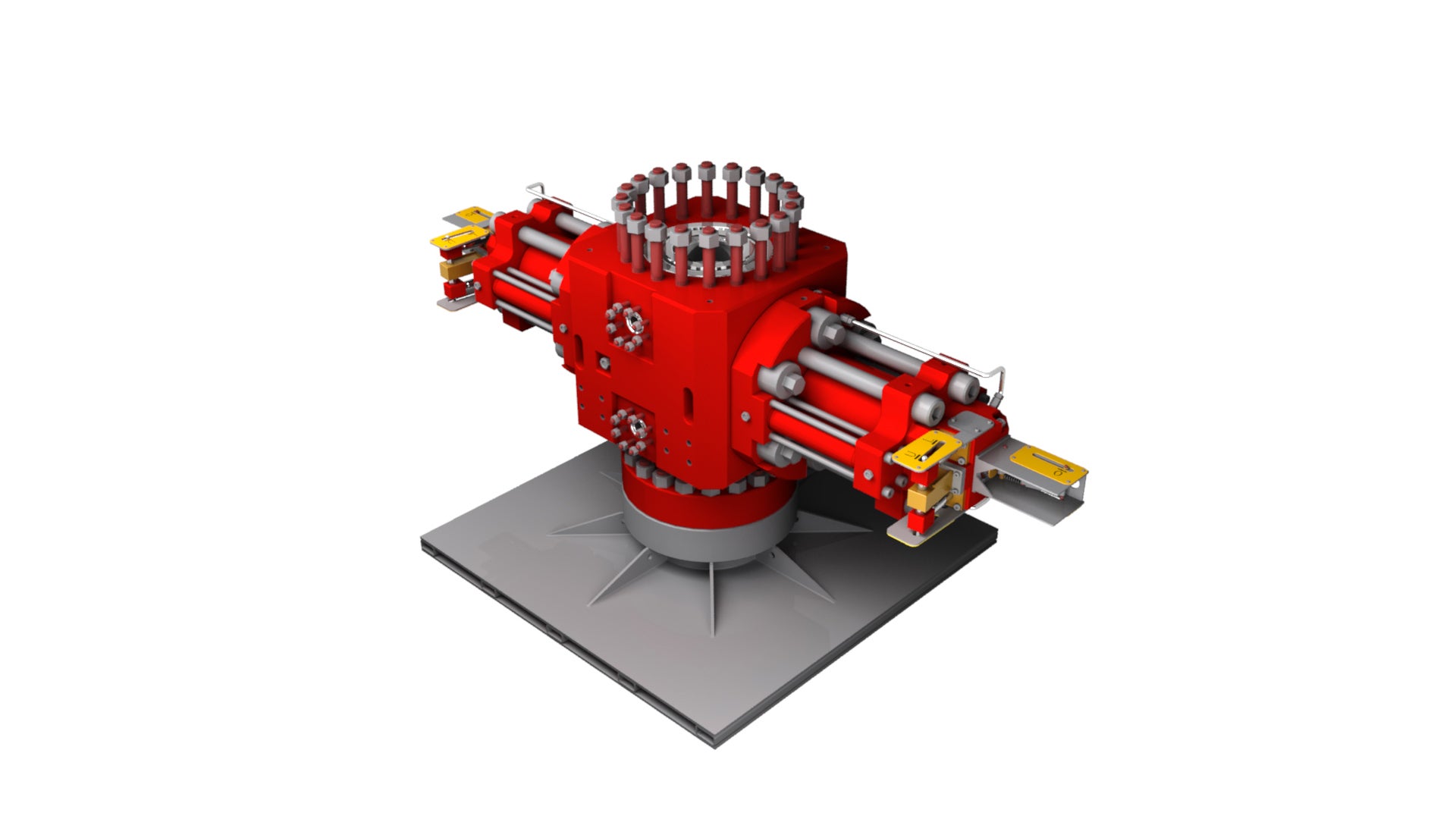

Register here Sign inShear Blind Ram
Each ET series shear blind ram is built to your specific design requirements and can include a single-bore valve block with a blind shear ram assembly.
-
Description
-
Specifications
-
Resources
Our Texas Oil Tools™ ET series blind shear ram is certified to API/ISO/NORSOK standards and is an integral component of the lower wellhead riser package.
This blind shear ram features a single-line hydraulic system and an automatic, wedge-type, autolock actuator system. The autolock system secures the rams in the closed position in the event of a hydraulic failure or an emergency that requires disconnecting from the subsea wellhead.
Each ET series blind shear ram is built to your specific design requirements and can include a single-bore valve block with a blind shear ram assembly. The shear rams offer increased functionality and the ability to use a wide range of coiled tubing and wireline sizes in a field-proven, compact design.
All pressure ratings and service applications are available, including certification for use in the North Sea.
Features/Benefits
- Multi-shear blind ram with 10,000 or 15,000 psi working pressure
- Hydraulic ram change
- Metal-to-metal bonnet gaskets
- Hydraulic wedgelock
- Ram and wedgelock position indicators
- Subsea safety head blind shear rams meeting shear requirements of NORSOK D002 for a safety head
Shear Blind Ram Specification
|
Model |
Bore |
Working Pressure |
|
ET76 |
7.06 in. |
10,000 psi |
|
ET76 |
7.06 in. |
15,000 psi |
|
ET7C |
7.37 in. |
10,000 psi |
|
ET7C |
7.37 in. |
15,000 psi |
WCE Recertification, Inspection, and Repair
When it comes to well control equipment (WCE), you can never be too safe. With increasingly stringent industry standards around documentation and recertification of equipment, you can rely on our industry-leading engineering, manufacturing, and service centers to maintain compliance.
