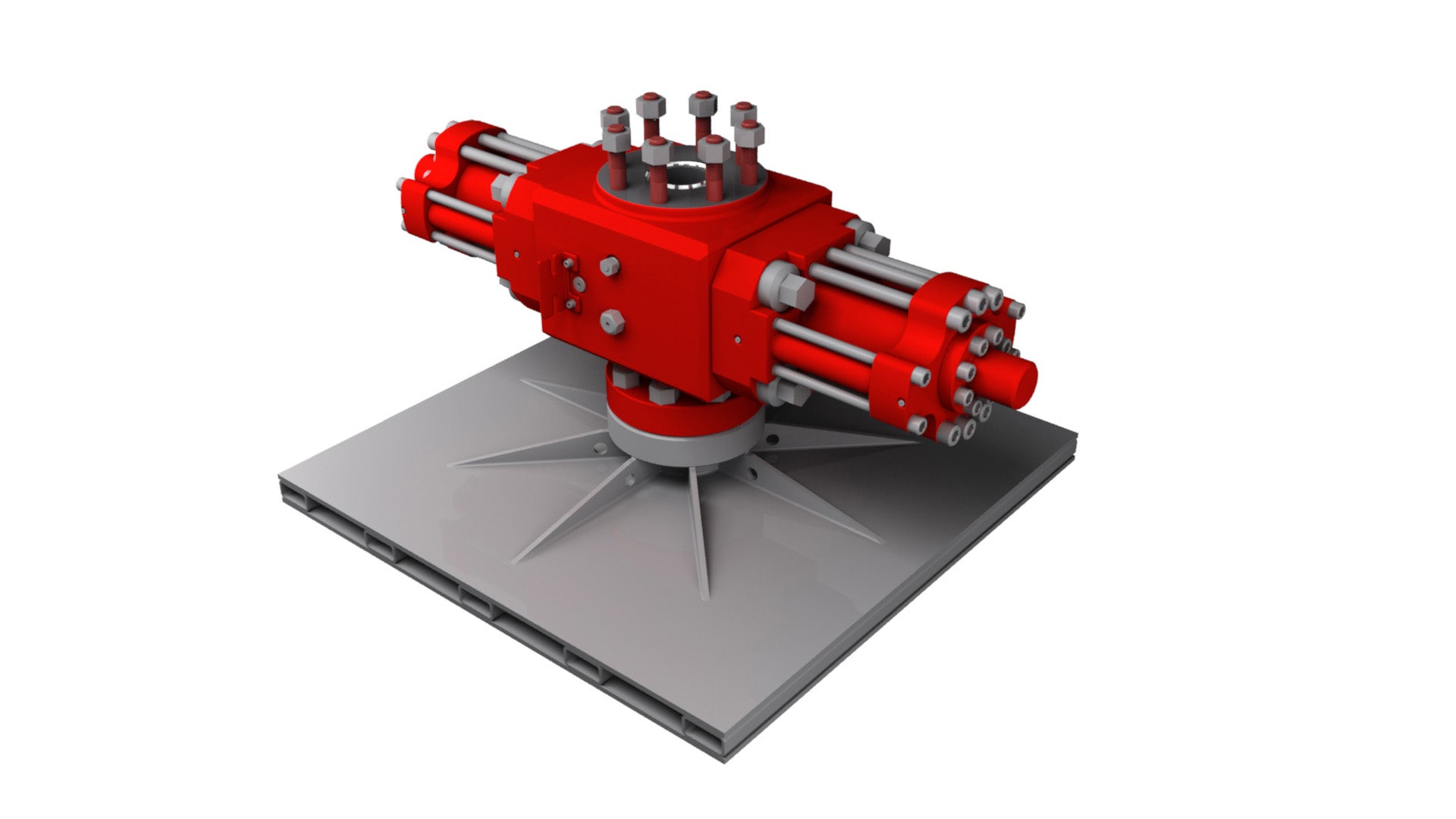

Sidewinder Stripper Assembly

Designed to reduce overall stack height as well as pack-off on a full range of coiled tubing sizes as it is stripped in and out of the well


To further enhance the safety and efficiency of your drilling operations, each Sidewinder features the ability to fully retract elements and wear bushings from the vertical wellbore. This method enables the bottomhole assembly to be inserted through the coiled tubing stripper assembly without breaking previously tested lubricator components or connections.

With unparalleled workmanship and a field-proven design, you can count on our Sidewinder during your next project.


  • Extended-life packer insert
  • Shorter stack height
  • Hydraulic ram change
  • No welds—solid body
  • Pressure-balanced piston
  • Low bonnet bolt torque
  • Independent bonnet testing
  • Ram position indicator
  • Internal equalizing valves
  • Well pressure isolated seals
  • Internal porting

Sidewinder Stripper Assembly Specifications




Working Pressure

Hydraulic Working Pressure

Hydraulic Wellbore





4.06 in.

15,000 psi

3,000 psi


2,390 lb

21.09 in.

66.03 in.


5.12 in.

15,000 psi

3,000 psi


2,400 lb

23.50 in.

66.03 in.
